Linux-ready, hardware/software development kit for Samsung's ARM9-based S3C2440 microprocessor. The 100mm-square M2440 board features the workhorse S3C2440 processor clocked to 533MHz, and targets embedded development training applications, industrial control equipment, and consumer electronics devices like PDA devices and GPS navigators.

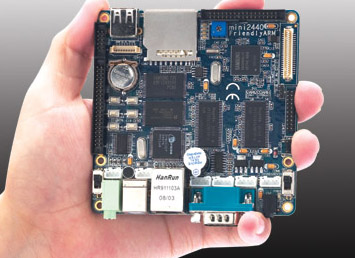

The Mini2440 appears to be smallest S3C2440 development kit to date. Measuring 3.9 by 3.9 inches (100 x 100mm), the Mini2440 is a four-layer board that clocks the Samsung S3C2440's ARM920T RISC core at 400MHz (dominant frequency) and 533MHz (peak frequency).

The S3C2440 system-on-chip (SoC) primarily targets handheld devices such as smartphones and PDAs. The SoC integrates 16KB each of instruction and data cache, 4KB RAM, a NAND flash boot loader, power management functions, an interrupt controller, and an external memory controller.

The Mini2440 comes standard with 64MB each of SDRAM and NAND flash, expandable via an SD card slot, along with 2MB of NOR flash. The board has camera and LCD interfaces, and with a built-in 3.5-inch QVGA (320x240) TFT TouchScreen LCD .

The Mini2440's complement of PC-style I/O includes Ethernet, USB host and slave ports, and three serial connections. The mini 2440 board friendly arm offers a "stable CPU power source chip and reset system. Available options include a WiFi module, and CMOS and USB camera, GPS, GPRS options.

Specifications :

Processor -- Samsung S3C2440 (ARM920T core) clocked at up to 533MHz

Memory -- 64MB SDRAM (up to 100MHz) 2MB NOR flash

Flash -- On board standard 256MB NAND flash;  +20USD for 1GB NAND.

Flash expansion -- 1 x SD card interface

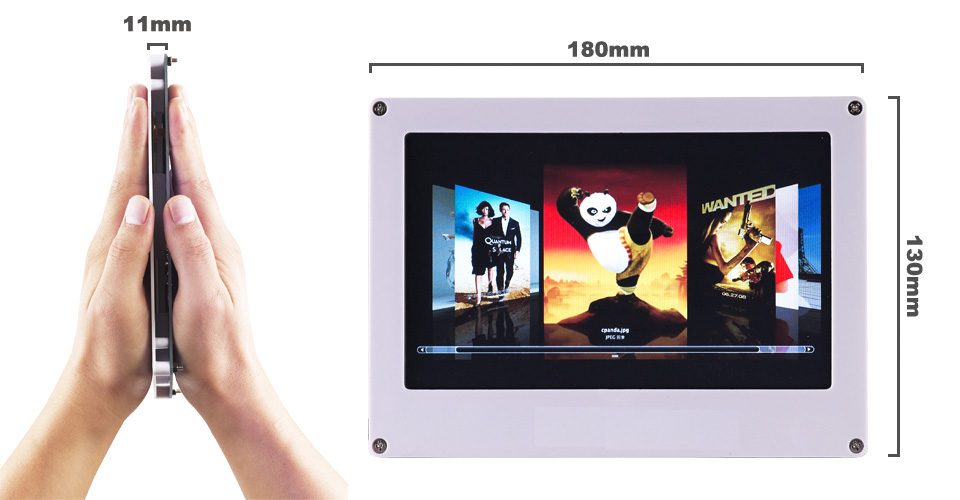

Display -- LCD controller with four-wire resistive touchscreen interface; 3.5 inch or optional 7 inch or 8 inch or 10 inch LCD displays

Networking -- 1 x 10/100 Ethernet RJ-45 interface (DM9000 chip)

WiFi -- optional WiFi module

USB -- 1 x USB Host; 1 x USB Slave (B-type interface)

Serial -- 3 x serial ports

Audio -- 1 x stereo audio output interface; 1 x mic interface

Camera -- 1 x 20-pin (2.0mm space) camera interface; optional CMOS or USB cameras, (OmniVision OV9620), + 25USD.

Other I/O:

1 x 10-pin (2.0mm space) JTAG interface

4 x user LEDs

6 x user buttons

1 x PWM control buzzer

1 x adjustable resistance, for AD conversion test

1 x I2C bus AT24C08 chip, for I2C bus test

1 x 34-pin 2.0mm GPIO interface

1 x 40-pin 2.0mm system bus interface

Power -- RTC battery; power supply interface

Clock -- internal real-time clock and 12Mhz passive crystal system clock source

Dimensions -- 3.9 x 3.9 inches (100 x 100mm)

Operating system -- Linux 2.6.13; WindowsCE.NET 5.0

Available SDKs

The M2440 software development kit (SDK) includes the following components, says Hiteg:

ADS1.2 development environment

H-JTAG burning and debugging tool

SJF2440 flash burning tool for Windows

Jflash-2440 flash burning tool for Linux (source code provided)

Serial tools CRT, dnw

Bmp2t (picture transformer)

USB driver for Windows XP/2000

Vivi bootloader for Linux (source code provided)

Test programs (source code provided)

WinCE5.0 BSP and example project file. Boot up very fast in 5 seconds. Support your own logo pitcture.  Note: Latest mini2440 does not support wince5.0 any longer, suggest using wince6.0.
WinCE6.0 R3 BSP commercial release. Support .NET Framework 3.5.

The Linux SDK also offers additional Linux development tools and Linux 2.6.13 kernel source code, as well as Qtopia and "embedded browser" source code.

Android  BSP source,file system, image,compiler tool chain, setup guide. (This is study release, not commercial, no expert technical support)

arm-linux-gcc-3.3.2 used for compiling Qtopia

arm-linux-gcc-3.4.1 used for compiling kernel

arm-linux-gcc-2.95.3 used for compiling Vivi

Mkyaffsimage YAFFS filesystem image maker

Drivers -- DM9000, TFT LCD, audio card, touchscreen, SD card(support max to 32GB), RTC, expansion serial port, USB camera, USB mouse, keyboard, U-disk

Package Included:

1.  Mini2440 S3C2440 ARM9 Development Board (Preload with Linux)

2.  No LCD

3.  1 Serial cable

4.  1 Net cable

5.  1 USB cable

6.  5V Power Adapter

7.  1 JTAG board(for H-JTAG)

8.  download link for User Manual, Schematics, Demo code,

    Source code & Data Sheets

Mini2440 3.5inch version:


http://www.quickembed.com/Tools/Shop/ARM/200905/4.html

For VGA output support, find in our module products.
We provide full compatible MINI6410S for upgrade choice.
