bluetooth sensor tag V4 ble Smart Wearable Device Electronic Computer CC2541 DevKit CC-Debugger

Model Standard
Vendor Quickembed Trakmark
In Stock Yes Lead Time  3 days
Promotion Update Time
Voucher Limit
Product Name bluetooth sensor tag V4 ble Smart Wearable Device Electronic Computer CC2541 DevKit CC-Debugger
Product ID 2014060211250974 Warranty  1 Year
Price US$99.00/unit

Shipping Fee and tax not included.

Turn your prospective idea into practical product real profit in 6 months.
Product Introduce:
Sample product, smart watch, wearable device open platform, dev kit.EMF32, nRF51822, TI Meta Watch, ADI ADuCM350, CSR1012, mems, sensor, ADXL345, LIS3DH,CC2540,CC2541,Quirky,Kickstarter,Indiegogo.
Product Detail:

Wearable technology, wearable devices, tech togs, or fashion electronics are clothing and accessories incorporating computer and advanced electronic technologies. The designs often incorporate practical functions and features, but may also have a purely critical or aesthetic agenda.

Wearable technology is related to both the field of ubiquitous computing and the history and development of wearable computers. With ubiquitous computing, wearable technology share the vision of interweaving technology into the everyday life, of making technology pervasive and interaction friction less. Through the history and development of wearable computing, this vision has been both contrasted and affirmed. Affirmed through the multiple projects directed at either enhancing or extending functionality of clothing, and as contrast, most notably through Steve Mann's concept of surveillance. The history of wearable technology is influenced by both of these responses to the vision of ubiquitous computing.

Generally, wearable technology will have some form of communications capability and will allow the wearer access to information in real time. Data-input capabilities are also a feature of such devices, as is local storage. Examples of wearable devices include watches, glasses, contact lenses, e-textiles and smart fabrics, headbands, beanies and caps, jewelry such as rings, bracelets, and hearing aid-like devices that are designed to look like earrings.

Sample we have made
Smart watch, can capture real pulse and blood pressure.
Special as it can capture pulse in good accurate, aiming blood pressure calculate, which is different with other pulse watch.
In test, the data is nearly the same with big professional machines.






In this mobile connecting world, there are many applications on wearable, like medical, health care, or entertainment, they need various wearable mini terminal computers, wearable devices with smart software and hardware together, for example, smart watch, smart bracelet, smart ring, cloths, hats, shoes, socks, glass (google glass), smart Bra (yeah, already), for sensor, data capture, monitor, and then using the low power and mobile connecting technology, sending data by bluetooth or wifi, to smart mobile phone. when the size and power enough small, cost enough low, it must go into everybody's life. Pebble, misfit shine, Samsung galaxy gear, Apple's iwatch (not come yet), are more and more popular.

If you have good idea, which can solve someone's some problem, then you can contact us to make prototype and product for you, we can make your idea into real produt. We have an expert team of hardware, software, mechanical and industrial design enigneers, making products for more than ten years, very rich experience, make samples very fast.

When sample is confirmed by potential customers, we can manufacture and sell it, in very fast way. In this mobile connecting world, all is very fast and convineint, have some capital and can run it.  if you not have enough intial capital, we can even help raise it. There is no time waiting, you think something, but not do it immediately, others will make it very soon.

So welcome to start evaluate it with us now!



News
Samsung has a open platform SAMI, and sample Simband:

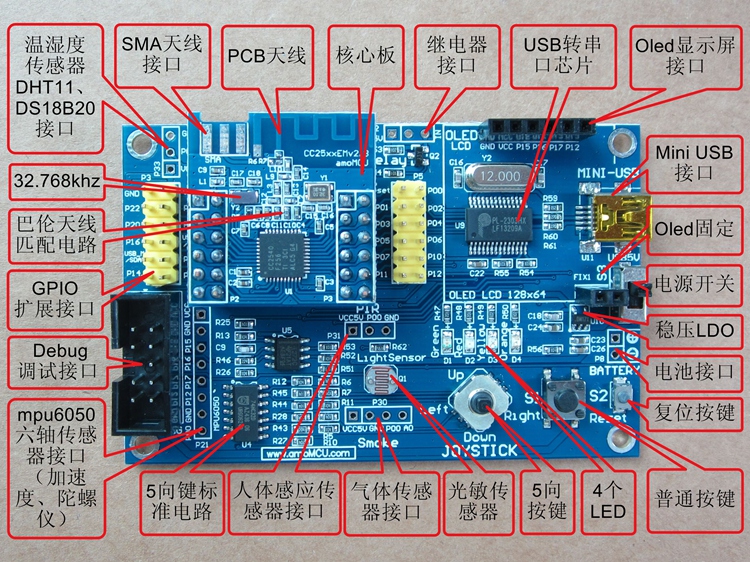

Dev Kit 1, CC2541 Dev Kit, Price 59$.
MCU+bluetooth two in one chip solution!
very low power!

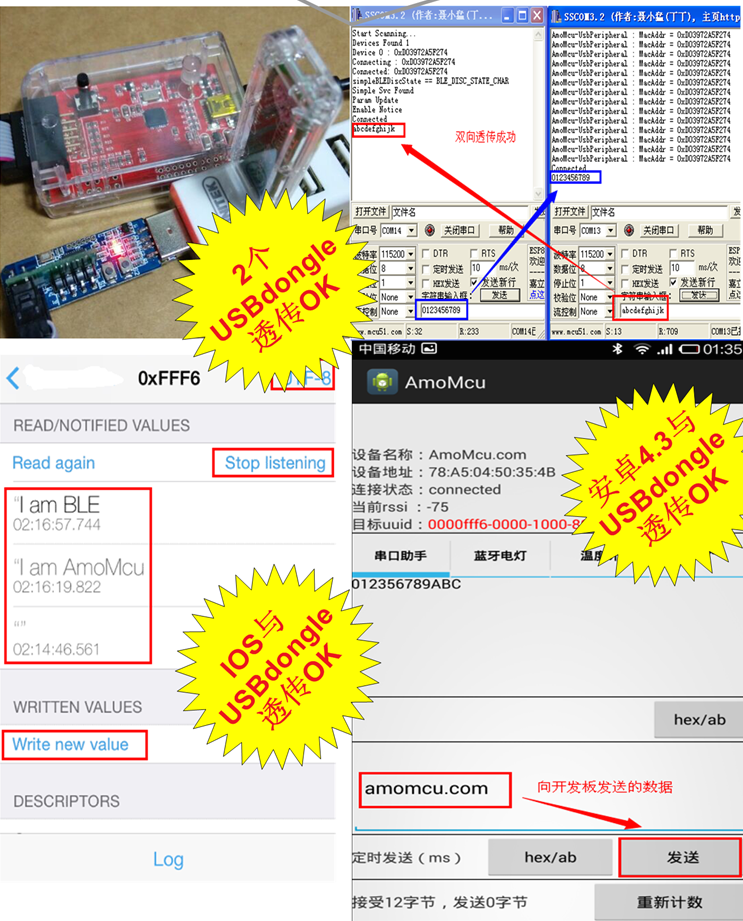

Sample code include:

how to use cc2541 in detail.
module with module, master and client code.
module with pc, windows or linux, usb dongle and rs232 port.
module with ios iphone, module code and ios code.
module with android smart phone, module code and android java code.
at command support code.
ibeacon sample code.
all sensors (see following) data code.




support many kinds of sensors
support 0.96inch OLED display

CC-Debugger, Price 19$


support:

               CC1110, CC1111

               CC2430, CC2431

               CC2510, CC2511

               CC2530, CC2531, CC2533

               CC2540, CC2541

               CC2543, CC2544, CC2545

         Control by SmartRF Studio:

               CC1120, CC1121, CC1125, CC1175

               CC1100, CC1101,CC110L, CC113L, CC115L

               CC2500,CC2520

         Program PurePath:

               CC8520, CC8521

               CC8530, CC8531

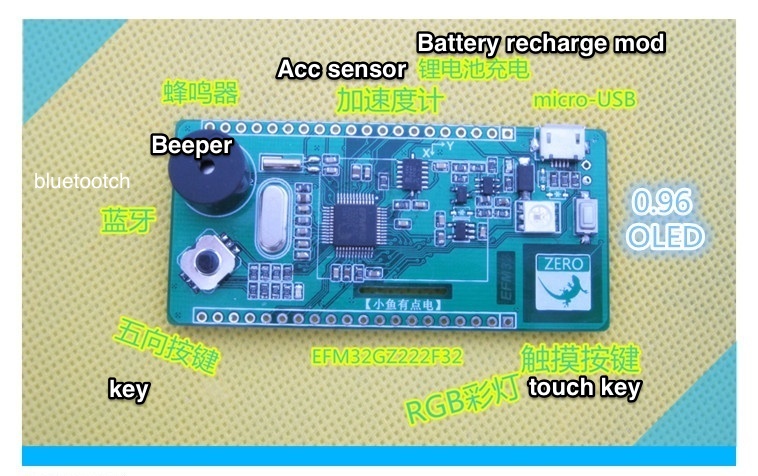

Dev Kit 2, EMF32 Dev Kit, Price 69$.
EnergyMicro efm32zg222f32 32KB Flash 4KB RAM M0+

On board resource:
bluetooth V4.0 BLE CC2540
ADXL345BCCZ 3D accelerator sensor
0.96inch OLED
LED
Key
Beeper
touch key
Battery recharge module
USB

Compared to famous misfit:
EFM32 LG295F256 CAM77800
CC2541 F128 TI 351 A1EP C4
C3H 823b

Rich sample code demo use for on board resources


Also sample from chip factory are available and compatiale.

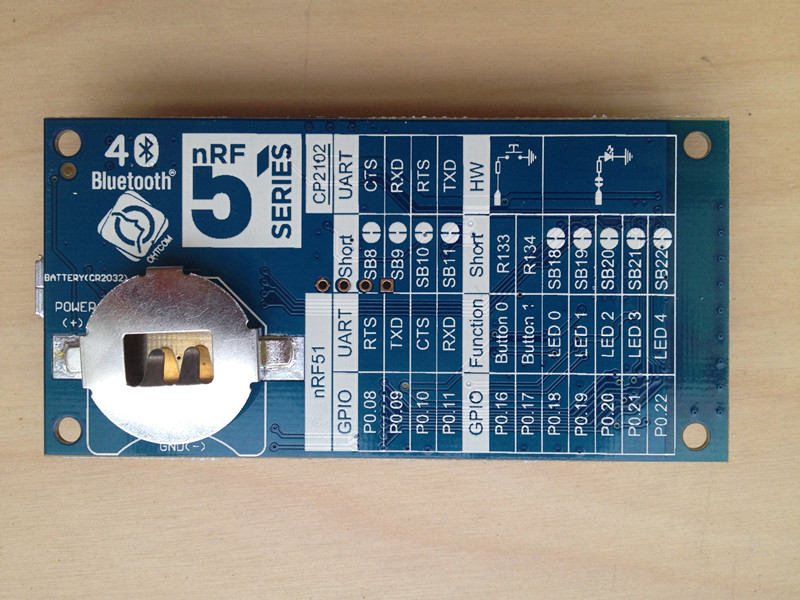

Dev Kit 3, nRF51822-AK Dev Kit, Price 79$.
nRF51822-AK new generation release now!
MCU+bluetooth two in one chip solution!
very low power!

Features

Compatiable for nRF51822-EK PCA10001, all sample code run no problem.
2.4GHz nRF24L
Bluetooth low energy 4.0 BLE
Current Shunt Monitor (CSM)
PCB Inverted F Antenna
3D sensor
LEDx5, Key x 2
Stadard 4pin SWD


USB  CP2102
iOS and Android4.3 sample application source code






l

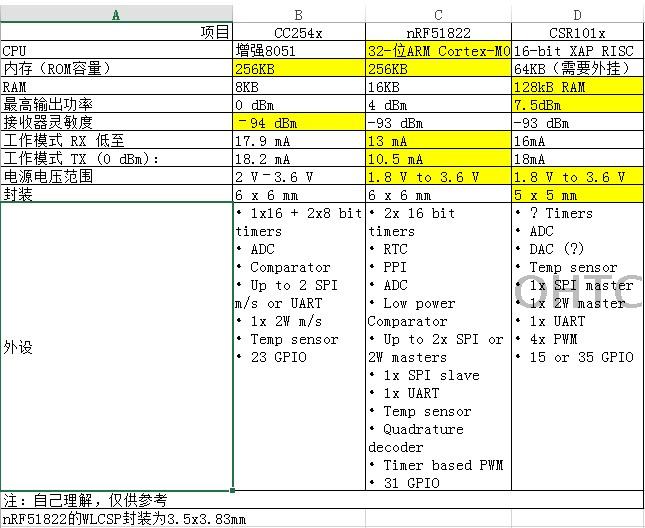

nRF51822 is Bluetooth4.0 and Cortex-M0 SOC, lower power than CC2540 and better performance, and it can  communicate with nRF24 all serials

This is nRF51822-EK dev kit from chip company, Ours' kit is much better and strong than it!


Extend features:
compass
Barometer
SPI Flash
Li battery charge manage
NFC
SMA antenna
I2C

There are some other platform, like TI Meta Watch, ADI ADuCM350, CSR1012 etc, we not list here, if you have interest, please contact us.

Online Order Now! Global Shipping in 2 days!


We accept online order and ship globally, our online order system will tell shipping fee according to your address, and automaticly generate PI Invoice to you.
Please send email to us if you have any question for this product, or want product document in more detail, or question for order or payment or shipping. Contact information is at the bottom of the page.
Sample price is announced hereby above. Ask for quotation when order quantity > 3pcs.
Parts of product, like core module, SBC, stamp, daughter card, single board(without LCD), motherboard, baseboard, LCD, sell seperately, email us for quatation.
find gps,gprs,wifi,camera etc in
modules and bluetooth,485,can etc in accessories, or enclosures, jlink v8, ulink, openjtag etc tools.
We are now offer
Capacitive Touch Panel for all of our ARM platforms.


Product Warranty and Technical Support.
Our delivery has mass producing quality assurance. We warrants our products against manufacturing defects for a period of one year from date of shipment to the original purchaser, and offers software updates lifetime to registered customers free of charge. We have an experts team to provide technical support.
We have been running 8 years, this is our license from Chinese government website:
http://www.sgs.gov.cn/LicenceView/Id=20120530152953117
We have served 1000+ customers from 100+ countries all over the world, Please find a list of part of our customers here:
http://www.quickembed.com/Tools/Shop/Customer/Index.html
We can provide contact if you want a reference.
We are looking for sell/retail/ditribute/channel partners in all over the world.

You are encouraged to share your information in the forum, share your business information, share your success, it will get you more business and success!
If you need some partner, technical, hardware, software, marketing, channel, sales, just post your message on the forum, because someone in the world may be finding you!
Our world and technology is changing and growing so fast that no one no single company can do all work, clever people can get information from the web and try to make it but will take a lot time to learn, we need cooperation!
Promote your product in the forum, or just an idea, don't be afraid other will copy, there are similar products and ideas all over the world, the only difference is who will make it real in a right time in success!
If you want more formal, list your product in our web catalog, to promote it to all over world, we are open, please send email to us.
We can build a prototype sample very fast, for you, to demonstrate, to your customer.
A demo is much more powerful than a thousand words!
It will save you a lot of valuable time!
Make a concrete step from good idea to real success!
We help you succeed, providing ARM Embedded Quick Demo.

ODM/OEM Service


Layout, for special defined interface and resize the board for your requirements.
Product prototyping, sourcing accessories for your product requirements.
Recommend GPS module, GSM/GPRS module with communication software.
Software Developing.
Sourcing solution and turn key to you.

You might have interest to know what products this board makes, please send us an email to know more product design cases.  Embedded pc computer system has broad usge, some examples:
QButton, world first post-it bluetooth sensor, open data, customize for your usage.

Popular bluetooth v4.0 ble sensor tag, smart devices, wearable electronic computer.

Palm size desktop computer.

U-disk size computer


Android 4.0 5inch 7inch capacitive touch pad


9D position pose system digital compass
GPS, Compass and accelerator in one tiny module.

GPS GPRS LBS solution.
Navigate Locate Track Solution, Location Based Service


Robot Motor Medical Testing System
One motor control board controlling 9 motors at the same time
Robot arm move and grab.


12" to 15" size multimedia or HMI solution, fixed on wall or desk or large vehicle:

Backside:

10" solution, fixed in car:

7" solution, fixed in car:
more 7inch cases here:
http://www.quickembed.com/Tools/Shop/Solution/201001/67.html



Using SBC is as easy as 1,2,3; simply prototype and test your development using a suitable SBC, then design your custom connector board and finally build your product.

The advantage of SBC is that when you define a new product, you have only small change on baseboard/motherboard, no change on SBC/daughter board, it saves great effort, and save much expense as the SBC is big lots produced while baseboard can be produced in small lots,  also this helps improving the quality of your products.
Read more about arm board customize design odm service.
Read more about arm linux driver and application software develope.

Our mission is to provide quick start and easy use embedded platforms for maximize customers productivity. If you find any platform more competitive than ours, please do let us know. We can improve our product for you.
