GSM version Price 99USD
3G version Price 299USD

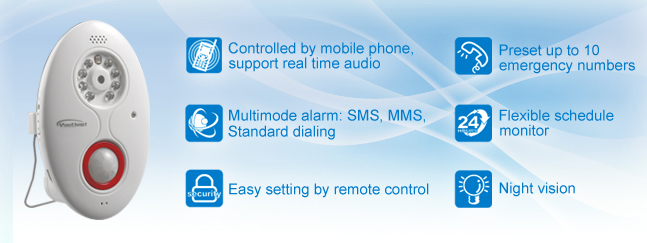

Built-in microphone & speaker for audio communication with mobile phone
Four-ways alarm: MMS, SMS, calling, E-mail alarm
Send pictures at any time if needed
Send pictures to E-mail box
Night vision
SMS remote control
Built-in PIR sensor
10 phone numbers to receive alarm
Flexible schedule monitoring
1.Use at home.
Install near doors, windows and other areas you want to protect
Protect your family and assets
Detect fire and gas leaks and send alarm notification
Monitor your house when you are away
2.Monitor private outdoor areas, garage, car ports, driveway gates etc.
3.Monitor various locations.
Monitor your
-Yachts and boats
-Hotel rooms
-office, factory
-shop
-holiday house
-other important locations
Monitor BTS for GSM operator
4.Support wireless combined acousto-optic alarm (optional)
When the camera alarms, it can trigger the "acousto-optic alarm" alarm to scare the uninvited visitor.
5.Support wireless controlled power socket (optional)
User can send SMS command to camera to remotely switch on or off the wireless combined power socket.
GSM version Spec
Power adapter input 100V-240V/50Hz output DC 5V
Operating temperature -10-+45 degree
Store temperature -10-+45 degree
Store temperature -20-+60 degree
Relative humidity 10-90% without condensation
Operating frequency EGSM900, GSM1800 (Optional GSM850, PCS1900 )
Communication protocols (including data operation) PHASE 2/2+
Wireless control signal transmitting distance 25 m (straight line)
Operating band of wireless siren (Optional) 315 MHz or 433MHz
Valid Listening Distance <=6m (frontal, 80 degrees)
Image format JPEG
Image resolution 160×128, QVGA(320×240), VGA(640×480)
Viewing angel 68 degree(horizontal), 68 degree (vertical)
Best viewing distance <=9 meters (day time) <=6 meters (night time)
Effective sense distance of PIR sensor <=6 meters(obverse)
Lithium ion battery 800mAh
Standby time of the battery (Depending on network) 8hrs (arming mode), 30hrs (disarming mode)
3G version Spec
GSM/WCDMA USIM card
Image format JPEG
Image solution 160*128, CIF(352*288), VGA(640*480)
Video resolution QCIF (176*144) Video
Camera pixel 300,000 pixels CMOS
Camera shooting distance at night <= 6 m (Frontal)
Camera degree 60(horizontal), 60(vertical)
Valid motion-detection distance 9m in day, 6m at night(frontal)
PIR sensor max. shooting distance 6m(frontal) 4m(with 70 degree angle)
MIC valid listen-in distance <= 6m(frontal, normal voice, with 80 degree angle)
Supply voltage (external power) 5V 1A
Battery capacity 800mAh
Standby time (Disarmed) 30 hours
Standby time(Armed) 8 hours
Working temperature -10 --- +45 centigrade
Storage temperature -20 --- +60 centigrade
Relative humidity -20 --- +60 centigrade
Mobile alarm: Capture images and send to your mobile phone by MMS.
Watch images directly on your mobile phone:The camera sends MMS images to your mobile phone for you to watch anywhere, anytime.
Easy to use:Arm or disarm the camera, capture a photo by just making a phone call.
In-site sound monitor and communication:Call the camera, you can listen in and speak to the monitoring area via mobile phone.
Built-in PIR sensor: Infrared body heat detector.
SMS remote control: Control the camera by sending SMS commands.
Infrared light: The built-in IR light enables the camera to capture images in dark environment.
Receive photos by e-mail:The camera can send MMS images to any preset e-mail address.
Multi-mode alarm: Camera can send alarm notification in 4 ways - SMS, MMS, e-mail and by standard phone-call once body heat is detected.
Monitoring methods:Choose between manually or scheduled monitoring.
Backup lithium battery:Rechargeable battery ensuring operation in case of external power failure.
Resolution:300.000 pixel CMOS camera.
Download user manual:Manual can be downloaded anytime using SMS command.
