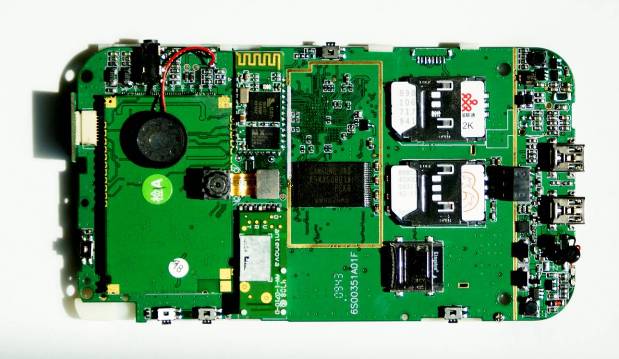

By designed with Samsung ARM926EJ core CPU S3C2440,The platform multimedia processing, speed and so the CPU than the launch platform before the dramatic increase in cost has a big advantage.
1、Mobile 3G (CDMA2000)、 telephone dialing, SMS, dial-up Internet access, data transmission and other functions.
2、Bluetooth, GPS positioning and navigation, support for 2 million pixel camera, support for fingerprint identification, to support the financial system PSAM card encryption, RFID IC Card Reader.
3、Support SD card to upgrade systems，support large-capacity SDRAM and ROM, support Wifi, external printers, bar code scanning, support for serial devices, USB camera and other USB devices .
Suit：Network intelligent terminals, banking insurance smart handheld devices, police PDA, handheld terminal restaurant bar service industries, delivery logistics terminals, intelligent vehicle navigation terminals, remote data transmission and control.
| hardware characteristics |
| Ordinal |
Uniterm |
Features |
| Motherboard |
CPU |
Sansung S3C2440A-40,CPU clock speed 400MHz，Max up to 533MHz |
| External Store |
Memory SDRAM：64M bit（two 32M）；Max up to 256M SDRAM |
| NAND Flash：64M（K9F1208UOB）；Max up to 2GB |
| NOR Flash:2M 8-16bit(AM29LV160DB-90EC) |
| RFID Literacy Support |
Support the S70 or more, compatible RF IC Card read-write |
| Serial Port |
1 standard serial port，Two three-wire system serial |
| Network Interface(scalability) |
1 100M Ethernet，RJ-45 interface（DM9000AEP） WiFi WLAN |
| USB Interface |
1 USB1.1 HOST interface(Can be connected to Udisk, keyboard, mouse or other USB devices) |
| 1 USB1.1 Device interface |
| Audio Interface |
Way audio output, 1.5W speaker output 50mW stereo output. |
| Way audio input, built-in MIC recording, CDMA voice recording |
| Storage Interface |
Standard SD Card interface(Max up to 8G，plug and play） (TF Card and SD can be generic) |
| LCD And Touch Screen Interface |
LCD liquid crystal screen interface (40-pin 0.5mm pitch) that can take a variety of true color LCD screen with touch screen interface (four-wire resistive type) |
| Camera Interface |
CAM interface,2 million pixels camera |
| Reset Circuit |
A reset button； |
| Clock Source |
Internal Real Time Clock (with back-up lithium battery) |
| Infrared Transceiver |
An infrared receiver |
| Button |
10 function keys |
| Charging Circuit |
Can provide 1A lithium 3.7v charging current |
| IO Interface Expansion |
Customizable around 8 GPIO external expansion application |
| Debugging And Downloading Interface |
A 6 - pin Multi-ICE standard of JTAG interface, support SDT2.51, ADS1.2 debugging |
| Power Interface |
Power supply interface USB ports 5V power supply, power supply switches and indicator light |
| Built-In Battery |
Built - in 2,400 MA 3.7v lithium batteries |
| Size |
135mm*75mm |
| Software Features |

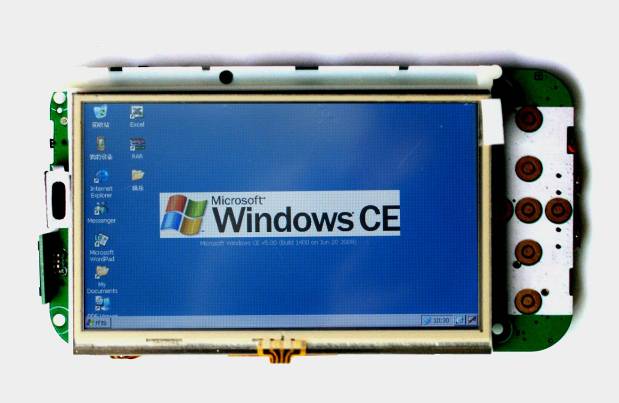

| WinCE 5.0 OS |
| Name |
Feature |
Description |
| ATBOOT |
USB Download NK SD Card Upgrade |
WINCE5.0 special offers USB automatic download method, fast and stable |
| BootLoader |
EBOOT |
Support SD card to upgrade the boot screen, boot process. Nk, and support for a key recovery system model |
| Driver Support |
LCD Driver |
Display Drivers480*272 565 Mode |
| LED Lighting |
Support the camera flash and LED lighting |
| Audio Driver |
Audio driver, support for voice playback, sound recording, which can record up |
| Bluetooth Driver |
Support wince control panel Standard Specification for Bluetooth driver configuration |
| Fingerprint Identification |
Fingerprint identification database and application interface and SPI transceiver drive |
| PSAM Encryption |
Support the financial system-level IC card encryption |
| USB Device Driver |
USB driver from the device，support USB sync |
| USB Host Driver |
USB master driver supports extended three USB, support USB, keyboard and mouse. Wifi, USB camera |
| Serial Driver |
Serial port driver provides three serial ports are available, including COM1 for debugging, built-in serial port of the switch 4th Circuit |
| NandFlash Driver |
Nand Flash driver available 64M-2G nandflash driver support |
| RTC Driver |
Real-time clock driver can modify the clock to save |
| LED Driver |
Charging indicator LED, running lights Driver |
| SD Driver |
SD driver, the maximum test support 8G, Plug and Play |
| Touch |
Four-wire resistive touch screen driver to support from 2.4 to 10.4 in. LCD models |
| CAM |
Samsung camera driver, 20PIN 1.27 spacing, 200 million pixels |
| Special Performance |
Graphical Interface QT |
WINCE interface，support Internet browser, flash player, Java / VM, MP3 / 4 player, etc. |
| Data Storage Area |
System provides the user can save a copy of the document area,after the power is not lost by the saved data, this is the performance of specially developed。 |
| Provide clock, IP address, other options such as the modified power save function. |
| Registry stored in nandflash area, power-down save, and systems for the installation, setup and configuration can save the power-down |
| USB Camera |
Support 2 million-pixel USB camera, providing driver and test software |
| CAM Camera |
Providing CameraTest test sofeware |
| USB Wireless Network Card |
Provide VIA Networking VT6656 USB-Wireless LAN Adapter Wireless LAN driver, not the source code。 |
| MP4 Player（CE5.0） |
Under resolution 480 * 272 MP4 full screen playback speed of effect is very good, image clarity, support JPEG, BMP format picture playback, support asf. Avi. Mpg. Mpeg. Mp2. Mp4. Mov format video player |
| GPS Receivers |
In CE5.0 serial, it can be directly supported by GPS satellite receiver |
| CDMA 1X |
Support China Telecom CDMA 1X, EVODX phone, SMS, dial-up Internet access, AT command functions |
| Fingerprint Identification |
Fingerprint Identification and SPI transceiver drive |
| PSAMM Encryption |
Support the financial system-level IC card encryption |
