FSR Price 19USD
This is a Force Sensing Resistor (FSR). It can be used to provide a 0-5vdc output that is proportional to the amount of force applied. Includes one FSR and one rubber bumper.
Specifications
Sensing area: 0.2” circle
Output signal: Passive variable resistance
Force sensitive range: 0 to 10 kg Lifetime: > 10 million actuations

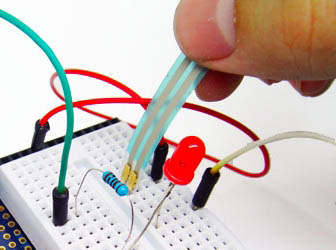

Flex Sensor Price 29USD
one directional Flex Sensor is a unique component that changes resistance when bent or flexed (Patent 5086785). An un flexed sensor Style A has a nominal resistance of approximately 10,000 ohms (10 K). As the flex sensor is bent in one direction the resistance gradually increases. Range of resistances of the FLX-03 Style A sensor may vary between 10K and 40K depending upon the degree of the flex.
An un flexed sensor Style B begins with a infinitely high nominal resistance. As the flex sensor is bent in one direction the resistance gradually decreases. Range of resistances of the FLX-03 Style B sensor may decrease to under 10K depending upon the degree of the flex.
The flex sensor operating temperature is -45F to 125F.
Some applications for the Flex Sensor are:
Collision detection on mobile robots
VR Gloves and VR suits
Physics applications and experiments
Description:A simple flex sensor 4.5" in length. As the sensor is flexed, the resistance across the sensor increases.
The resistance of the flex sensor changes when the metal pads are on the outside of the bend (text on inside of bend).
Straight (unflexed) resistance: ~9000 Ohm
90 degree bend resistance: ~14000 Ohm
180 degree bend resistance : ~22000 Ohm
Connector is 0.1" spaced and bread board friendly.

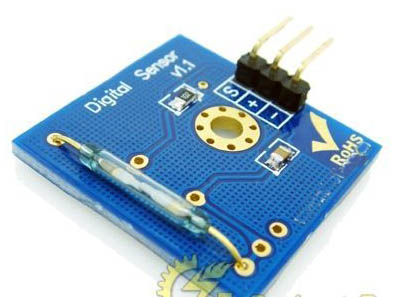

Magnetic Sensor Price 5USD
Vibration Detection sensor Price 9USD
