Specification

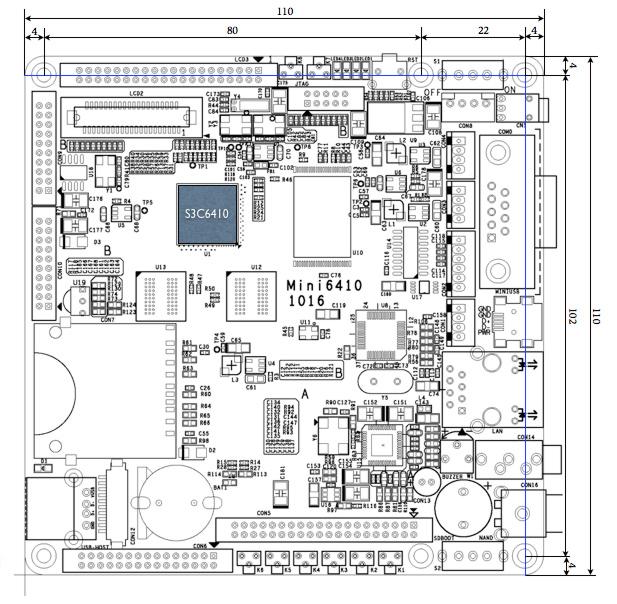

- Mini6410 Dimension: 110 x 110 mm
- Mini6410S Dimension: 100 x 100 mm, full compatible with mini2440
- CPU: 533 MHz Samsung S3C6410A ARM1176JZF-S (max freq. 667 MHz)
- RAM: 128/256 MB DDR RAM, 32 bit Bus
- Flash: 128 MB / 256 MB / 1GB NAND Flash
- EEPROM: 1024 Byte (I2C)
- Ext. Memory: SD-Card socket
- Serial Ports: 1x DB9 connector (RS232), total: 4x serial port connectors
- IR: Infrared Receiver
- USB: 1x USB-A Host, 1x miniUSB Slave-OTG 2.0
- Audio Output: 3.5 mm stereo jack
- Audio Input: Condenser microphone
- Ethernet: RJ-45 10/100M (DM9000)
- RTC: Real Time Clock with battery
- Beeper: PWM buzzer
- Camera: 20 pin Camera interface (2.0 mm)
- TV Output: CVBS
- LCD Interface
- STN Displays:
- Monochrome, 4 gray levels, 16 gray levels, 256 colors, 4096 colors
- Max: 1024x768
- TFT Displays:
- Monochrome, 4 gray levels, 16 gray levels, 256 colors, 64k colors, true color
- Max: 1024x768
- 40 pin (2.0 mm) and 41 pin connector for FriendlyARM Displays (4.3" and 7")
- Touch Panel: 4 wire resistive
- User Inputs: 8x push buttons and 1x A/D pot
- User Outputs: 4x LEDs
- Expansion: 40 pin System Bus, 30 pin GPIO, 20 pin SDIO (SD, SPI, I2C), 10 pin Buttons (2.0 mm)
- Debug: 10 pin JTAG (2.0 mm)
- Power: 5V connector, power switch and LED
- Power Supply: regulated 5V (Mini6410: 0.25 A, Mini6410 + 4.3" LCD: 0.5 A)
- OS Support
- Windows CE 6
- Linux 2.6.36 (QT2.2 4.2 4.7 support)

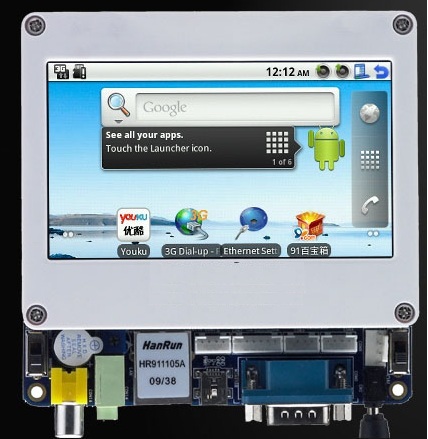

- Android 2.3
- Ubuntu
- All os bsp and drivers source code provided

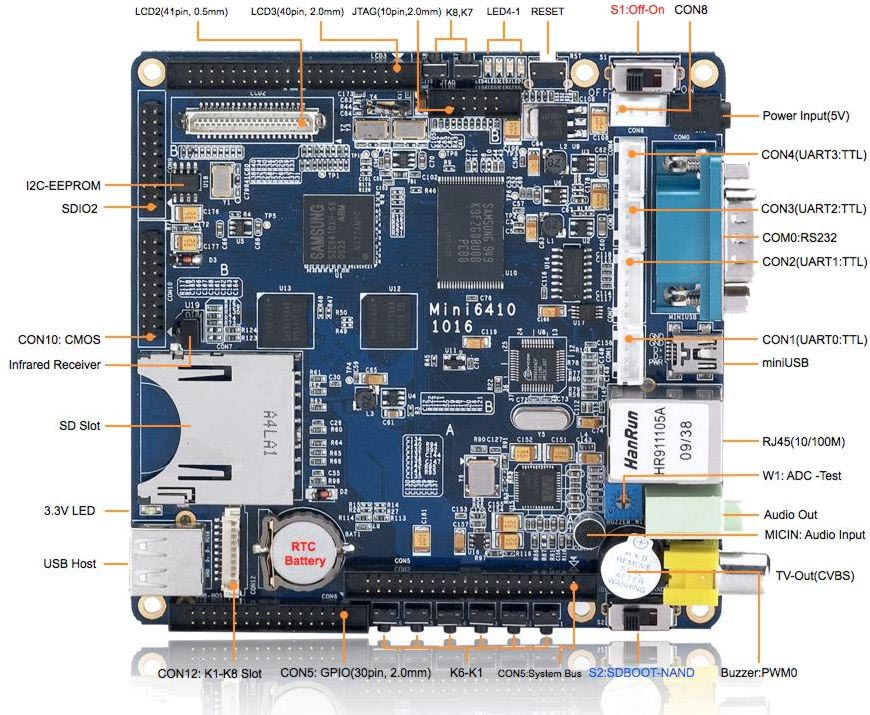

MINI6410

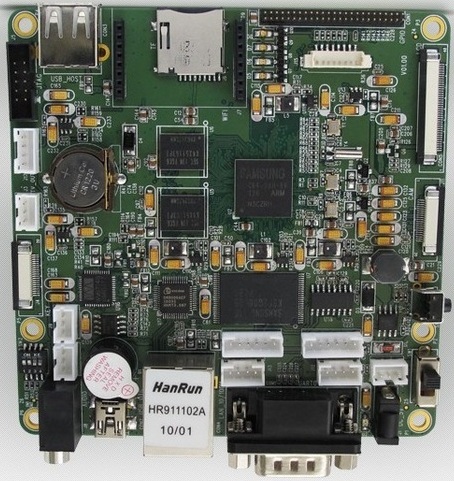

MINI6410S
MINI2440 as compare reference
The MINI6410S is a high performance ARM11 single board computer specially designed for consumer electronics, industrial control equipment. It features exactly the same dimensions and footprint as the popular MINI2440. and can therefore be used as a drop-in replacement for existing projects where more CPU power are needed.
With the MINI6410S you can offer your customers a choice between two of your products. The MINI2440 for minimal comfort and abilities and the MINI6410S with high comfort and astounding visuals. And as the MINI6410S is a drop-in replacement you don't even have to change much to make that work. You can use any housing which fits for the MINI2440 and use it for the MINI6410S, or vice versa. Our very own plastic enclosure for 7inch shows this ability.
 USB control provides your MINI6410S the unique ability to control the USB host 5V power line, which feeds connected devices; thus, if attached devices are not responding, you now have the ability to restart them. This is extremely useful for G3, Bluetooth, or GSM modems in a 24/7 environment. Secondly, you can save energy by disabling currently unneeded devices and therefore save up to 500mA!
LCD control enables you to switch off the display at any given time. In this way, you can save up all that precious energy. Save up to 700mA!
 Ethernet control enables you to take the MINI6410S entirely off the net. If your applicaion doesn't need Ethernet at all and you would like to prevent the user from messing with it, then simply switch ethernet off in the boot loader section, and the OS doesn't even know that there is an ethernet chip in the first place!
SD control gives you the power over all attached SDIO devices on port 1. Whether it is our SD WiFi module, our internal SD-card module, or your very own module, you may easily and efficiently control its power.
 CVBS / S-Video control enables you to switch the video amplifier completely off. This feature is extremely useful if you have to connect devices with an auto-sensing feature to the MINI6410S . In the "OFF" state, absolutely no signal reaches the device, thus auto-sensing will find nothing and therefore no disturbing actions will occur. This is useful if more than one source is connected to a screen, or similar device.
The MINI6410S SBC is based on the Samsung S3C6410 ARM11 micro controller, which provides the MINI6410S with abundant internal resources and a powerful video processing capacity operating at a 667MHz (optional 800MHz) peak frequency. Beside its powerful processor, the MINI6410S is also equipped with 256MB mobileDDR RAM, 256MB/1GB (SLC/MLC) NAND Flash, as well as some common external interfaces like USB, UART, SD, LCD, Camera, audio, ethernet, etc., making the MINI6410S full featured and easy to use SBC. With its vigorous internal resources and excellent capacity for 3D video processing, the MINI6410S is fully competent for various kinds of hand-held devices, consumer electronics, industrial controllers, Mobile Internet Devices, Notebooks, etc.
The MINI6410S uses a reliable 8-layer PCB measuring 100mm by 100mm, it is designed and produced in strict accordance with UL and CE standards, with full consideration of signal integrity, electrostatic protection and electromagnetic compatibility to assure that the MINI6410S is capable of working in various environments. We will provide an industrial temperature range version of the MINI6410S upon request.
On the software part
The MINI6410S supports a wide diversity of operating systems, such as Android, WinCE and several other Linux distributions. Together with the MINI6410S we provide full featured BSPs WinCE6R3. WinCE 7 (soon) and Linux (eBoot and Kernel). The BSPs provide device drivers for all the low-level interfaces.
The MINI6410S is carefully designed to fit perfectly into any enclosure designed for the MINI2440.
MINI6410 Package
Price 159$ for board only, without LCD.
Price 179$ package include 4.3 inch LCD
Price 199$ package include 7 inch LCD
Price 249$ package include 8 inch LCD
Price 299$ package include 10.2 inch LCD
MINI6410S Package
Price 129$ for board only, without LCD.

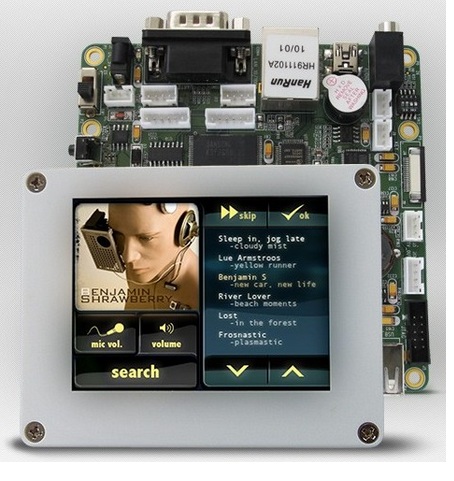

Price 139$ package include 3.5 inch LCD
Price 149$ package include 4.3 inch LCD

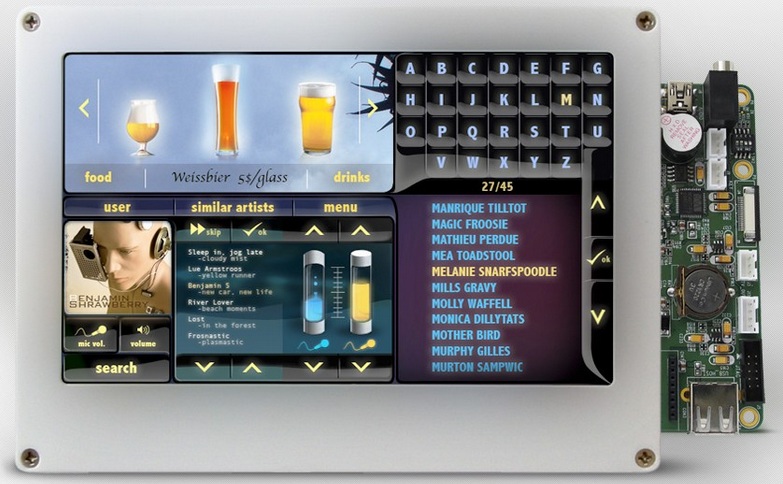

Price 179$ package include 7 inch LCD
Price 229$ package include 7 inch LCD and plastic enclosure
Price 249$ package include 7 inch LCD and aluminum enclosure
Price 249$ package include 8 inch LCD
Price 299$ package include 10.2 inch LCD
3G/GPRS/WIFI/GPS/Camera/BlueTooth/VGA module support.
| Option module for Tiny6410/Mini6410 |
| Item |
Details |
Remark |
Price |
|
| Tiny6410 CPU |
CPU board for Tiny6410
256MB DDR RAM + 2GB Nand Flash |
Tiny6410 CPU board |
$ 65 |
|
| Camera |
130W pixel, CMOS interface, OV965 |
Camera Module |
$ 19 |
|
| SDIO WiFi |
SDIO interface, Marvell 8686 |
SDIO WiFi Module |
$ 39 |
|
| GPS |
Serial port interface, Sirf III |
GPS Module |
$ 49 |
|
| GPRS |
Serial port interface |
GPRS Module |
$ 49 |
|
| TTL to RS232 |
Change TTL serial port to RS232 Volatage |
Serial Adapter board |
$ 10 |
|
| Bluetooth |
USB interface |
USB Bluetooth |
$ 15 |
|
| VGA |
VGA signale output, Resolution: 1024*768 |
VGA Adapter |
$ 49 |
|
| ezVGA |
VGA signale output, Resolution: 800*600 |
ezVGA Adapter |
$ 19 |
|
| 3G CDMA2000 |
3 G module, CDMA2000, USB interface |
3G CDMA2000 Module |
$ 59 |
|
| 3G WCDMA |
3 G module, WCDMA, USB interface |
3G WCDMA Module |
$ 59 |
| extended cables kit 19.9$
Package Include
One Kit Board.
One USB cable
One serial RS232 cable
One Ethernet cable
One DC Power Adapter.
Download with OS and driver, BSP in source code, schematics, and user manual documents.
