- TI OMAP3530 Processor based on 600MHz ARM Cortex-A8 core
- Flexible Design with a SBC CPU Board mounted on Expansion Board
- Memory supporting 128M/256MByte DDR SDRAM and 128M/256MByte NAND Flash
- UART, USB, Ethernet, WiFi/Bluetooth, GPS, Camera, Audio, SD, Keyboard,... - Supports 24-bit TFT LCD, VGA, S-Video/TV Output Display
- Supports Linux2.6.22 and WinCE 6.0

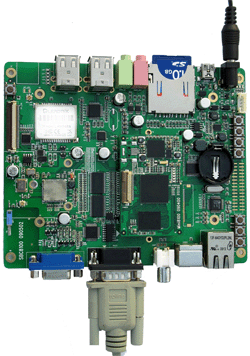

The OMAP3530SBC Single Board Computer is a high-performance controller board. It is designed based on the OMAP3530SBC processor card which integrates an OMAP3530 microcontroller, 128MByte DDR SDRAM, 128MByte Nand Flash, RTC, LEDs and one Camera interface on board. It is connected with OMAP3530SBC expansion board through two 1.27mm space 90-pin biserial dip connectors.
In addition to those features provided by the CPU board Mini8100, the expansion board has exposed many of other features of the OMAP3530. It has integrated RS232, USB, Ethernet, WiFi/Bluetooth, GPS, Audio In/Out, Keyboard, LCD, VGA, S-Video/TV out, SD card and more other functions on board. So many hardware resources provided by the expansion board, it becomes a solid reference board for customer design.
Also offers a complete software development package to customers. The board supports linux 2.6.22 and WindowsCE 6.0 operating system and is provided with complete basic drivers which enable a quick channel to evaluate the TI OMAP3530 processor and customize application software. It would be an ideal development platform for multimedia and communication applications.
|
Features |
|
Daughter Board (OMAP3530SBC) |
|
Items |
Description |
|
Dimension |
59mm x 37mm |
|
Processor |
TI OMAP3530 microprocessor with 600MHz ARM Cortex-A8 RISC Core (compatible with TI OMAP35x series processors) |
|
Memory |
128MB DDR SDRAM, 166MHz
128MB NAND Flash, 16bit
(256MB DDR SDRAM + 256MB NAND Flash is coming) |
|
Camera |
12-bit camera interface (30-pin FPC connector, support CCD or CMOS camera, support analog camera module CAM3530 for option) |
|
RTC |
32768Hz RTC (Real-time clock) |
|
LED |
Six programmable status LEDs |
|
Expansion
Connector |
Connect with expansion board, 16-bit data bus, LCD, McBSP, SD/MMC Card, UART and most I/O CPU lines are extended via two 1.27mm space 90-pin biserial dip connectors. |
|
Mother Board |
|
Items |
Description |
|
Dimension |
144.9mm x 114.1mm |
|
Power supply |
+5V |
|
Ethernet |
10/100Mbps |
|
LCD/TSP |
TFT LCD and touch screen interface (50-pin FPC connector, support resolution up to 2048*2048) |
|
VGA |
Standard VGA interface, support 1024*768 resolution |
|
S-Video/TV |
S-Video display interface and TV out display interface (can only be selected to use one) |
|
USB Host |
Four USB Host ports |
|
USB OTG |
Can only be used as USB Device at present |
|
Serial port |
One three-wire RS232 Debug serial port |
|
WiFi/BT |
WiFi/Bluetooth (WG7210) |
|
GPS |
GPS module |
|
Audio |
Audio input and output slots |
|
SD card |
One standard SD card slot, supports 3.3V and 1.8V logic voltage |
|
Keyboard |
4*5 Keyboard interface |
|
Buttons |
Four buttons (Reset, Boot, User defined, On/Off) |
|
Expansion Connector |
2.54mm 30-pin SMT Female Pin Header, UART, I2C, SPI, ADC_IN, PWN_OUT are led out from this connector |
|
OS |
Windows CE 6.0 BSP |
|
Linux 2.6.22 BSP |
|
Software |
|
OS |
Item |
Feature |
Description |
|
Linux |
Boot |
Version |
X-loader-1.41 U-boot 1.3.3 |
|
Boot Mode |
Boot Linux from SD card, NAND Flash or Ethernet |
|
Image update |
Support updating image from SD card or Ethernet |
|
Logo update |
Support updating logo |
|
Kernel
And
drivers |
Version |
Linux 2.6.22 |
|
File system Format |
Supports ROM/CRAM/EXT2/EXT3/FAT/NFS/ JFFS2/UBIFS file systems |
|
Driver |
Serial, RTC, Net, Flash, LCD, Touch screen, S-Video, TV out, VGA, Audio In/Out, SD, USB Host, USB OTG, Keypad, WiFi, GPS, LED |
|
File
system |
File system format |
Ramdisk File System, UBI File System |
|
Function |
Provided Lib (ALSA -lib, tslib, glibc), udev support |
|
Demo |
Android |
Google developed a platform based on Linux open-source mobile phone operating system. |
|
DVSDK |
Support MPEG4, MPEG2, H264, mp3, aac audio/video formats and Codecs |
|
WinCE |
Boot |
Version |
x-load-1.41, eboot |
|
Boot Mode |
Boot WinCE from SD card, NAND Flash or Ethernet |
|
Image update |
Support updating image from SD card or Ethernet |
|
System |
Characteristic |
KITL kernel debug, Reboot, Watchdog, RTC |
|
Driver |
Serial, RTC, Net, Flash, LCD, Touch screen, S-Video, TV out, VGA, Audio In/Out, SD, USB OTG, USB Host, Keypad, WiFi/BT, GPS, LED, VRFB, DSPLINKK/CMEMK, PWM, ADC, GPIO/I2C/SPI/MCBSP |
|
Function |
Power Management (backlight drive, battery-driven, sleep/wake-up function) |
|
Hive registry support |
|
ROM file system support |
|
Software features |
Mediaplayer 9.0, Word and Internet Explorer 6.0 |
|
.NET Compact Framework 3.5 |
Order Information
|
Order No. |
T6010092 |
|
Item |
OMAP3530SBC Single Board Computer |
|
Hardware |
One OMAP3530SBC Single Board Computer
One 512MB SD card
One Serial cable
One net cable
One USB cable (Type A Male to Type Mini-B Male)
One S-Video cable
One 5V@2A Power adapter
Optional TFT LCD (With Touch panel, we provide 4.3"/7"/5.6"LCD Models for options)
Optional CAM3530 Analog Camera Module (Only support linux, provided with Linux driver source code, supporting analog camera with BNC connector and PAL or NTSC video output) |
|
Software
and
Documents |
- Documents (user manual, Datasheet, schematic drawing of expansion board in PDF format)
- WinCE.net 6.0 BSP
- Linux 2.6.22 BSP |
|
Price |
|
|
OMAP3530SBC |
US$109 |
|
OMAP3530SBC+Mother board, Without LCD |
US$499 |
|
With 7"LCD |
US$599 |
|
|
|
|
Modules of camera, WIFI , GPS, GPRS |
Find in modules catalog |
|
|
|
|
Optional choose OMAP3530 Evaluation Kit
Emulator for download/program/debug wince/linux bsp/drivers&applications.
If you need a whole enclosure/case , here is one.
