AM3517SBC Kit Board

Model Standard
Vendor Quickembed Trakmark
In Stock Yes Lead Time  3 days
Promotion Update Time
Voucher Limit
Product Name AM3517SBC Kit Board
Product ID 2011051310483800 Warranty  1 Year
Price US$669.00/unit

Shipping Fee and tax not included.

Turn your prospective idea into practical product real profit in 6 months.
Product Introduce:
600MHz TI AM3517 Sitara ARM Cortex-A8 256MB DDR2 SDRAM + 256MB Nand Flash + 4MB Nor Flash
Product Detail:
- 600MHz TI AM3517 Sitara ARM Cortex-A8 Microcontroller
- 256MB DDR2 SDRAM + 256MB Nand Flash + 4MB Nor Flash
- UARTs, RS485, CAN, Ethernet, 2 USB Host, USB Device, Camera, …
- Supports LCD, VGA, S-Video/AV out Video output modes
- Support 3G, Wifi, Analog Camera, 8-UARTs functions through Modules
- Ready-to Run Linux 2.6.32 OS


Features

Mechanical Parameters

    • Core Board Dimensions: 96mm x 90mm (8 layer PCB design)
    • Expansion Board Dimensions: 170mm x 190mm
    • Input voltage: +5V (CPU board), +12V (Expansion Board)
    • Working Temp.: -40 ~ 85°C

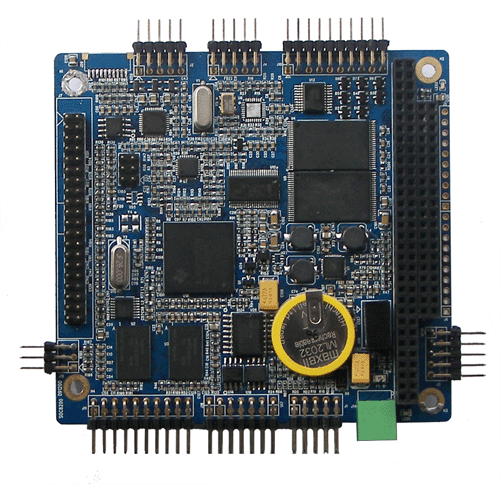

 CPU Core Board

Processor

    • TI AM3517 industrial applications processors
      - NEON SIMD Coprocessor
      - 600MHz Sitara ARM Cortex-A8 Core
      - POWERVR SGX Graphics Accelerator (AM3517 only)
      - 16KB I-Cache, 16KB D-Cache, 256KB L2-Cache, 112KB ROM, 64KB Share SRAM

Memory

    • 256MB DDR2 SDRAM, 32bit
    • 256MB NAND Flash, 8bit
    • 4MB NOR Flash, 16bit (driver has not been provided at present)

Signals Routed to Pins

    • One 5-wire Debug serial port (RS232)
    • One 5-wire serial port (TTL)
    • Two USB 2.0 Host High-speed ports, 480Mbps
    • One USB 2.0 Device High-speed port, 480Mbps
    • Audio (IIS)
    • 16-bit LCD output
    • 10-bit Camera video input
    • 1-channel S-Video output
    • 1-channel AV output
    • One RS485 serial port
    • 1-channel CAN bus
    • 10/100Mbps Ethernet port
    • SD/MMC card
    • Multi-functional expansion interface (McBSP, IIC, McSPI, TV-OUT)
    • PC104 expansion interface (GPMC Bus, MMC, USB, McSPI, UART1, Clock, HDQ)
    • JTAG interface

 Expansion Board

Audio/Video Interfaces

    • Audio input port
    • Stereo audio output port
    • 15-pin standard VGA output interface
    • Buzzer

Communication Interfaces

    • One 5-wire RS232 serial port (DB9)
    • One 9-wire RS232 serial port (DB9)
    • One 9-wire TTL serial port (2*5pin 2.5mm pitch connector)
    • Two High-speed USB 2.0 Host ports, 480Mbps
    • One High-speed USB 2.0 Device port, 480Mbps
    • One 10/100Mbps Ethernet port (RJ45)
    • 10-bit Camera interface
    • Reset button
    • SD/MMC card slot
    • CF card slot

Software

OS Item Feature Description
Linux Bootloader x-loader NAND/ONENAND
MMC/SD
FAT
u-boot NAND/ONENAND
MMC/SD
FAT
NET
Kernel and Drivers Version Linux 2.6.32
File system ROM/CRAM/EXT2/EXT3/FAT/NFS/JFFS2/UBIFS
Driver LED, Serial, RTC, NET, RS485, CAN, Buzzer, MMC/SD, CF, USB Device, USB ehci, Video output, GPIO, LCD, Touch Screen, VGA, Analog camera, Audio out, Analog input, Nand Flash
Compiler gcc cross compiler tool gcc version 4.3.3 (Sourcery G++ Lite 2009q1-203)

General Description

TI’s high-performance AM3517 microcontroller which is based on 600Mhz ARM Cortex-A8 Core with NEON SIMD Coprocessor and POWERVR SGX™ Graphics Accelerator and offers video, image, and graphics processing capable of supporting single board computers, home and industrial automation, and digital signage.

The board has 256MB DDR2 SDRAM, 256MB Nand Flash and 4MB Nor Flash and extends various functions through pins including serial port, Ethernet, CAN, RS485, SD/MMC card, CF card, Audio In/Out, Camera, LCD, USB Host, USB Device, expansion connector and JTAG.

Expansion board, along with some accessories, software package and documents, it is an ideal development kit which would be convenient for customers to evaluate the functionality of Texas Instruments' Sitara AM3517 microprocessor. The kit board is preloaded with Linux 2.6.32 open-source operation system. we provides all drivers in source code and together with user manual and some other tools and documents to help customer immediately start with their code development. we also designed some function modules for SOC8200 to support 3G, WiFi, Analog Camera and multi serial ports functions.

The board industrial level can work stably in wide temperature range from -40°C to 85°C which enables it to fit specific industrial needs and can be used in various applications such as industrial control, consumer electronics, medical equipment, instrumentation, security monitoring and so on.

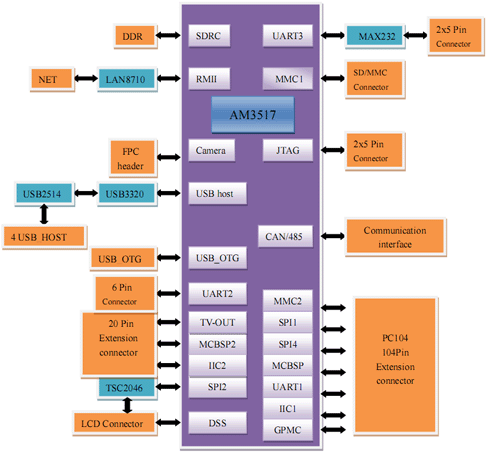

Function Block Diagram

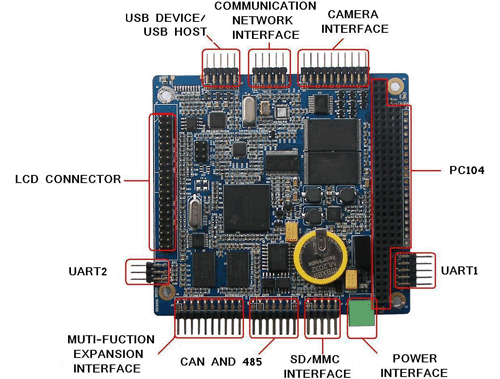

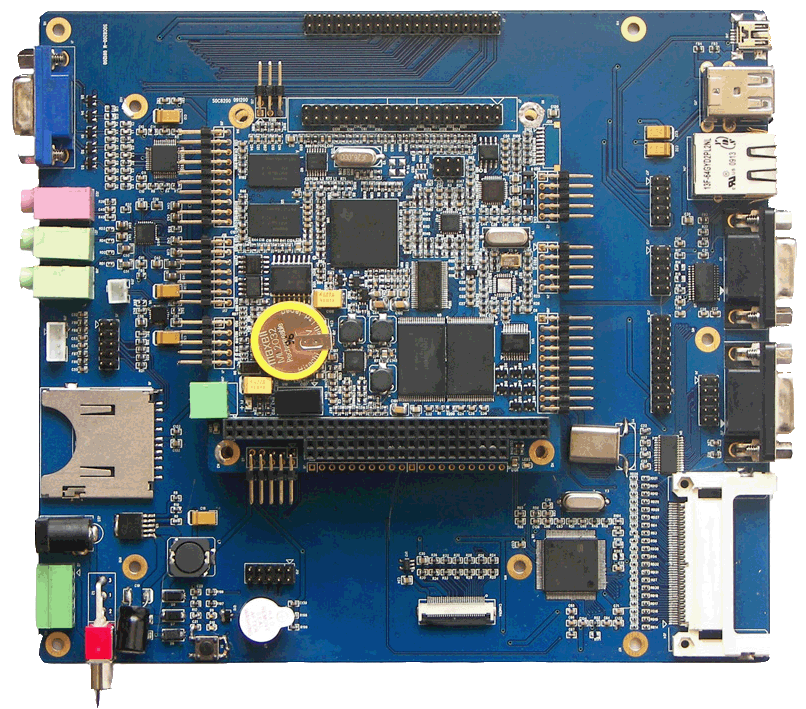

Onboard Interfaces and Connectors

Order Information

Order No.

T400197

Item CPU Core Board
Hardware
  • One CPU core board
Software
  • Preloaded with Linux image, do not provide Linux BSP or technical support unless you purchase the whole set of Development Kit.
Price US$169
(Discount price is available for bulk orders)
Order No. T6010107
Item Development Kit
Hardware
  • One CPU core board with Expansion Board
  • One 2G SD card
  • One Serial cable
  • One Ethernet cable
  • One 12V Power adapter
  • One 2x5-pin 12cm cable
  • One 2x10-pin 12cm cable
  • One 2x20-pin 12cm cable
  • One CAN Module
  • download link for software and documents
  • LCD (optional, including touch screen)
    Remark: 4.3”LCD (resolution: 480*272), 7"LCD (resolution: 800*480)
Software and Documents
  • Documents (user manual, schematic drawing, Datasheet)
  • Linux 2.6.32 BSP
Price without LCD US$539
with 4.3"LCD US$649
with 7"LCD US$669
Options
  • USB WiFi module US$49
  • USB 3G Module (CDMA2000 standard) US$99
    find other accessories in our accessory catalog.


Online Order Now! Global Shipping in 2 days!


We accept online order and ship globally, our online order system will tell shipping fee according to your address, and automaticly generate PI Invoice to you.
Please send email to us if you have any question for this product, or want product document in more detail, or question for order or payment or shipping. Contact information is at the bottom of the page.
Sample price is announced hereby above. Ask for quotation when order quantity > 3pcs.
Parts of product, like core module, SBC, stamp, daughter card, single board(without LCD), motherboard, baseboard, LCD, sell seperately, email us for quatation.
find gps,gprs,wifi,camera etc in
modules and bluetooth,485,can etc in accessories, or enclosures, jlink v8, ulink, openjtag etc tools.
We are now offer
Capacitive Touch Panel for all of our ARM platforms.


Product Warranty and Technical Support.
Our delivery has mass producing quality assurance. We warrants our products against manufacturing defects for a period of one year from date of shipment to the original purchaser, and offers software updates lifetime to registered customers free of charge. We have an experts team to provide technical support.
We have been running 8 years, this is our license from Chinese government website:
http://www.sgs.gov.cn/LicenceView/Id=20120530152953117
We have served 1000+ customers from 100+ countries all over the world, Please find a list of part of our customers here:
http://www.quickembed.com/Tools/Shop/Customer/Index.html
We can provide contact if you want a reference.
We are looking for sell/retail/ditribute/channel partners in all over the world.

You are encouraged to share your information in the forum, share your business information, share your success, it will get you more business and success!
If you need some partner, technical, hardware, software, marketing, channel, sales, just post your message on the forum, because someone in the world may be finding you!
Our world and technology is changing and growing so fast that no one no single company can do all work, clever people can get information from the web and try to make it but will take a lot time to learn, we need cooperation!
Promote your product in the forum, or just an idea, don't be afraid other will copy, there are similar products and ideas all over the world, the only difference is who will make it real in a right time in success!
If you want more formal, list your product in our web catalog, to promote it to all over world, we are open, please send email to us.
We can build a prototype sample very fast, for you, to demonstrate, to your customer.
A demo is much more powerful than a thousand words!
It will save you a lot of valuable time!
Make a concrete step from good idea to real success!
We help you succeed, providing ARM Embedded Quick Demo.

ODM/OEM Service


Layout, for special defined interface and resize the board for your requirements.
Product prototyping, sourcing accessories for your product requirements.
Recommend GPS module, GSM/GPRS module with communication software.
Software Developing.
Sourcing solution and turn key to you.

You might have interest to know what products this board makes, please send us an email to know more product design cases.  Embedded pc computer system has broad usge, some examples:
QButton, world first post-it bluetooth sensor, open data, customize for your usage.

Popular bluetooth v4.0 ble sensor tag, smart devices, wearable electronic computer.

Palm size desktop computer.

U-disk size computer


Android 4.0 5inch 7inch capacitive touch pad


9D position pose system digital compass
GPS, Compass and accelerator in one tiny module.

GPS GPRS LBS solution.
Navigate Locate Track Solution, Location Based Service


Robot Motor Medical Testing System
One motor control board controlling 9 motors at the same time
Robot arm move and grab.


12" to 15" size multimedia or HMI solution, fixed on wall or desk or large vehicle:

Backside:

10" solution, fixed in car:

7" solution, fixed in car:
more 7inch cases here:
http://www.quickembed.com/Tools/Shop/Solution/201001/67.html



Using SBC is as easy as 1,2,3; simply prototype and test your development using a suitable SBC, then design your custom connector board and finally build your product.

The advantage of SBC is that when you define a new product, you have only small change on baseboard/motherboard, no change on SBC/daughter board, it saves great effort, and save much expense as the SBC is big lots produced while baseboard can be produced in small lots,  also this helps improving the quality of your products.
Read more about arm board customize design odm service.
Read more about arm linux driver and application software develope.

Our mission is to provide quick start and easy use embedded platforms for maximize customers productivity. If you find any platform more competitive than ours, please do let us know. We can improve our product for you.
Those who want to list your product here in this web and sell to worldwide customers, please contact us.

-- Stay Hungry. Stay Foolish. Memory of Steve Jobs.
-- Dream bigger, Love Deeper, Live Longer! :-)





Search Similar or Related Products:
Customers Feedback:
Contact Us Instant: Skype: Phone Call: Tel: +86-2l-228l84l9. Email: quickembed@gmail.com, support@quickembed.com,
Welcome to Visit Us, Address: Jianchuan Road No.951, A409, Cangyuan Sci&Tech Park, Shanghai, China.

Copyright: QuickEmbed Technology Co.,Ltd., 2002-2014
