PXA270 Dev Kit

Model Standard
Vendor Quickembed Trakmark
In Stock Yes Lead Time  3 days
Promotion Update Time
Voucher Limit
Product Name PXA270 Dev Kit
Product ID 2009050820404284 Warranty  1 Year
Price US$550.00/unit

Shipping Fee and tax not included.

Turn your prospective idea into practical product real profit in 6 months.
Product Introduce:
Product Detail:

- Marvell XScale PXA270 Microcontroller, Operating frequency 520MHz
- A Rich Set of Peripherals including RS232, USB, LCD/TSP, Audio, Bluetooth, WiFi, RFID, Barcode Scanner, SD...
- The system can be updated through Ethernet/USB/Serial port
- Supporting WinCE 6.0

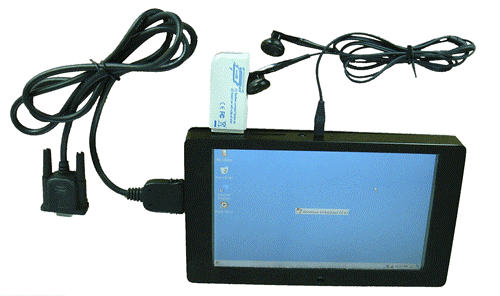

DevKit270 Main Board

DevKit270 Main Board is a high-performance compact board based on Marvell XScale 520MHz PXA270 ARM processor, with 1GByte of MDOC flash and 128MByte of SDRAM as well as a MiniSD card slot supporting up to 2GB capacity. It features standard Bluetooth and Wi-Fi and a 3,500 mAH rechargeable Lithium battery. A barcode scanner interface and a RFID antenna interface are also available. The board exposes many other hardware interfaces including RS232 serial port, USB Host/Device, LCD/TSP and Jtag. It mainly targets the development of PDA, Handheld PC, Tablet PC and smart phones.

The DevKit270 main board can support 16-gray STN-LCDs or 256-color STN-LCDs of various size and the maximum virtual screen size in 256 color mode is up to 4096*1024. It can also support 1, 2, 4 or 8-bpp TFT-LCDs of various size and the maximum virtual screen size in 64K color mode is up to 2048*1024. we offers, as options, a DATA IMAGW 7" TFT LCD with 800*480 pixels resolution and a tiny RFID antenna board.

The DevKit270 main board is able to support WinCE OS. The software package includes WinCE6.0 BSP and drivers of which many are in source code. We also provide user manual, schematic drawing and datasheet documents to help customers better understand the board. This would be an ideal solid basis for your embedded applications.

DevKit270 Development Kit

Devkit270 Development Kit is designed specially for evaluating the DevKit270 main board. It is housed in a case and preloaded with WinCE6.0 OS for testing. User can display it using a DATA IMAGW 7" TFT LCD and Touch screen. It includes a tiny RFID antenna board inside as well as a 8-pin Jtag connector for reserved extension. The front panel of the case is made of aluminum alloy while the rear panel is designed using engineering plastic. The kit has ebook functions, supporting Microsoft office applications such as WORD, EXCEL, PDF and TXT for viewing documents; it also has synchronizing function which enables data synchronization between your PC and the kit; it would also be a media player which is capable of playing audio or video files like MP3 or MP4.

Features of DevKit270 Main Board

  • Dimensions: 109.6mm x 80mm
  • Working temperature: –20°C to 85°C
  • Processor: Marvell XScale PXA270 can work up to 520MHz
  • Power supply: 3500mAH Lithium battery
  • 3-pin Battery interface (connect to 3,500MAH Lithium battery)
  • Power charger interface (included in one 22-pin socket, connecting to 6V~9V DC power)
  • 128MByte SDRAM
  • 1GByte MDOC (Disk-On-Chip)
  • One 9-wire RS232 serial port (included in one 22-pin socket)
  • One USB1.1 Host port
  • One USB1.1 Device port (included in one 22-pin socket)
  • Bluetooth antenna (BC41B143A, support Bluetooth earphone and Bluetooth printer)
  • Support wireless LAN (LBWA18HEPZ, WLAN 802.11 b/g)
  • LCD interface (STN or TFT)
  • 4-wire touch screen interface
  • One mini SD card socket (support the maximum capability up to 2Gbyte)
  • Audio output port (earphone)
  • RFID antenna interface (RFID frequency: 13.56MHz, support ISO15693, 14443A/B)
  • RFID antenna (a small RFID antenna board, optional*)
  • Barcode scanner interface
  • Two buttons (RESET and ON/OFF)
  • One 3-pin EXT KEY interface (two buttons can be extended through the interface for the barcode scanner control)
  • 20-pin JTAG interface (led out by test points on the rear of the board)
  • Supporting WinCE6.0

Note: The DevKit270 main board has one 22-pin socket surface mounted on it. The socket is compatible with HP PDA. The 9-wire serial port, power charger interface and USB Device port of the DevKit270 main board are all led out from this socket. We provides a data cable to connect this board to your needed peripheral device.

Software

OS Item Feature Description
Wince
6.0
Bootloader
Eboot Bootloader for WinCE (Supports downloading image through Ethernet or USB or serial port)
Driver
(source code)
Autorotation Windows interface can rotate 90/180/270/360 degree automatically.
BACKLIGHT Backlight (If WinCE system is suspended, the backlight will be turned off)
BATTDRVR Battery
BCSP Bluetooth (use serial port for transferring)
DOC Msystem flash MDOC H3
EV15 EV15 symbol scanner
gspi_wifi Marvell 8086 SPI Chipset
HCD USB Host
PWRBUTTON Power management (Change the power status between suspend and wake up)
KEYPAD USB mouse and USB Keypad
SERIAL Three full-function serial ports: one for Bluetooth, one for scanner and one for EBOOT debugging.
SDHC SD (MMC/SDIO)
TOUCH Touch Screen
TRF7960 RFID (Chipset: TI TRF9760)
USBFN USB Device
WAVEDEV2 WolfSon: driver for Audio.

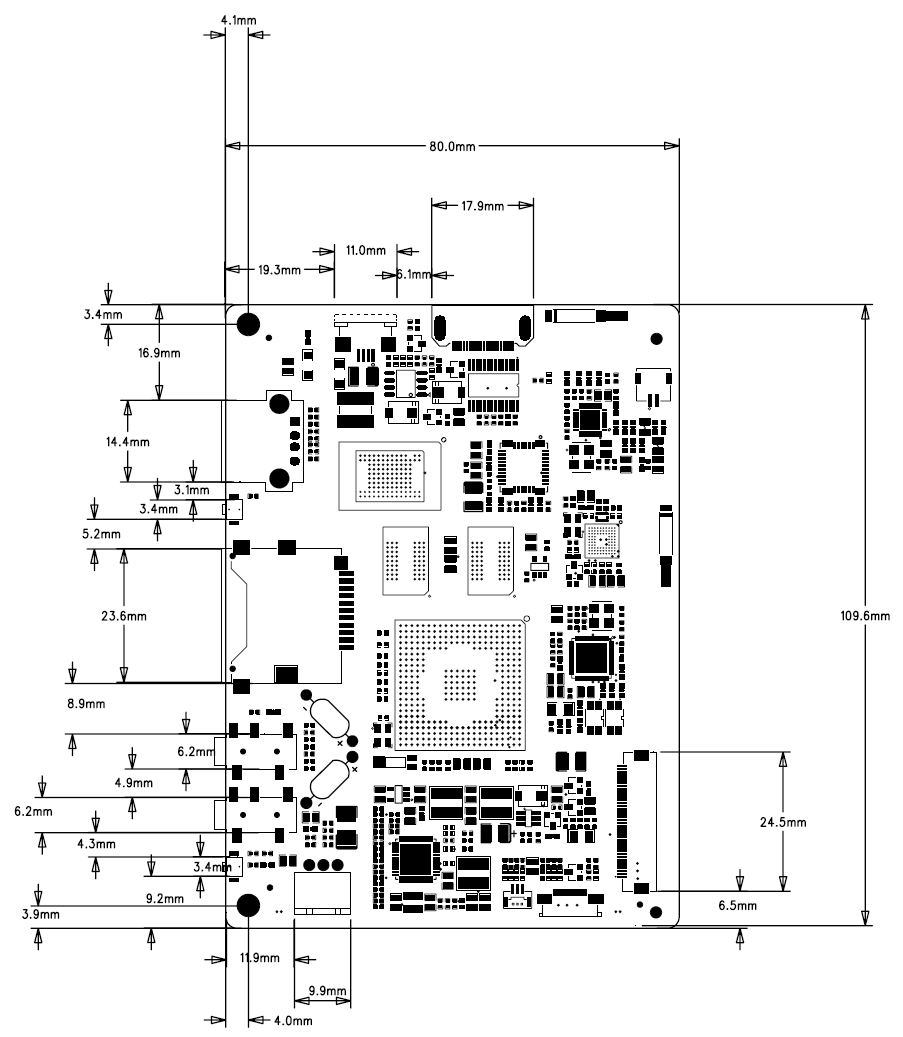

Dimensions of DevKit270 Main Board



Order Information

Order No. MH17
Item DevKit270 Main Board
Hardware DevKit270 Main Board
Software
and
Documents
- documents (user manual, circuit schematic drawing, Datasheet)
- WinCE.net 6.0 BSP
Accessories - One Data cable (connect to the 22-pin socket)
- 6V DC power adapter
Option Hardware RFID antenna board
Price

US$550
Order No. MH18
Item Devkit270 Development Kit
Hardware including a DevKit270 Main Board, a RFID antenna board, a Jtag board, a 7" DATA IMAGE TFT LCD housed in an aluminum alloy case
Software
and
Documents
- documents (user manual, circuit schematic drawing, Datasheet)
- WinCE.net 6.0 BSP
Accessories - One Touch Pen
- One Data cable (connect to the 22-pin socket)
- 6V DC power adapter
Price
US$699


Online Order Now! Global Shipping in 2 days!


We accept online order and ship globally, our online order system will tell shipping fee according to your address, and automaticly generate PI Invoice to you.
Please send email to us if you have any question for this product, or want product document in more detail, or question for order or payment or shipping. Contact information is at the bottom of the page.
Sample price is announced hereby above. Ask for quotation when order quantity > 3pcs.
Parts of product, like core module, SBC, stamp, daughter card, single board(without LCD), motherboard, baseboard, LCD, sell seperately, email us for quatation.
find gps,gprs,wifi,camera etc in
modules and bluetooth,485,can etc in accessories, or enclosures, jlink v8, ulink, openjtag etc tools.
We are now offer
