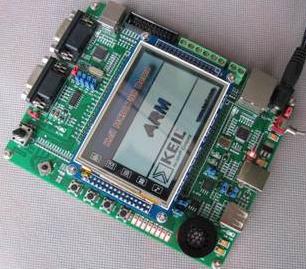

LPC1768 NXP ARM Cortex-M3 Kit board

Model Standard
Vendor Quickembed Trakmark
In Stock Yes Lead Time  3 days
Promotion Update Time
Voucher Limit
Product Name LPC1768 NXP ARM Cortex-M3 Kit board
Product ID 2010080510050284 Warranty  1 Year
Price US$99.00/unit

Shipping Fee and tax not included.

Turn your prospective idea into practical product real profit in 6 months.
Product Introduce:
high performance low cost low power consumption 32bit micro processor, good for instruments and meters, industrial communication, motor control etc.
Product Detail:



Features
 100MHz CPU, support MPU
 512KB onchip Flash, support ISP IAP
 64KB SRAM
 AHB 8channels DMA GPDMA
 support SSP UART AD/DA Timer GPIO
 JTAG Emulator
 4 low power mode: sleep, deep sleep, power off, deep power off
 3.3V DC in
��2.4V �C 3.6V��

 temperature: -40C - 85C
 NMI input
 reset
 SysTick for os porting



Resources
1 2 RS232
2 2 CAN  SN65VHD230
3 RS485 SP3485
4 RJ45-10/100M Ethernet DP83848
5 DA output(on board speaker and driver)
6 AD input
7 2.8 or 3.2 inch color TFT 320X240
8 USB2.0,USB host and USB Device
9 SD/MMC(SPI)(provide FAT12 FAT16 FAT32 file system)
10 IIC(24LC02)
11 SPI FLASH
��AT45DB161D��

12 2 user key, 2 buttion Reset and INT0, 8 LEDs
13 1 five directions Joystick
14 ISP download(no jumper needed), standard JTAG download, debug
15 USB emulator support online debug,support KEIL IAR etc
16 5V DC in or USB as power source
17 extended all IO out for user use



Package
one board

one 3.2inch LCD
one USB cable
one rs232 cable
one Ethernet cable
one 5V DC
document and software


Online Order Now! Global Shipping in 2 days!


We accept online order and ship globally, our online order system will tell shipping fee according to your address, and automaticly generate PI Invoice to you.
Please send email to us if you have any question for this product, or want product document in more detail, or question for order or payment or shipping. Contact information is at the bottom of the page.
Sample price is announced hereby above. Ask for quotation when order quantity > 3pcs.
Parts of product, like core module, SBC, stamp, daughter card, single board(without LCD), motherboard, baseboard, LCD, sell seperately, email us for quatation.
