S5PV210 DevKit Price US$1999.00 Samsung Cortex-A8 ARM S5PV210AH-A0, 1GHz WinCE Android

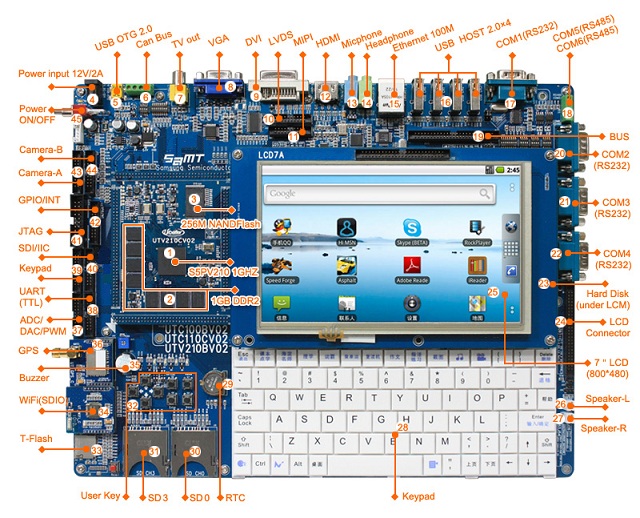

KITS5PC100-II Highlights

. Processor: Samsung Cortex-A8 ARM S5PV210AH-A0, 1GHz System Clock
. Source code of WinCE6.0,Android2.1 are available for the Kit, Android2.2 will be coming soon.
. Memory: Samsung K4T1G108, DDR2, 1G Bytes
. Storage:
       Samsung K9F2G08,256M Bytes SLC Nand Flash
       Two SD Card slot, each supports upto 32GB
       One T-Flash slot
       One ATA Hard-disk interface
. USB Ports:
      1 USB High Speed OTG 2.0
      4 High Speed 2.0 USB Host
. Display:
      One FPC connector for support 4.3”, 7”, 10.2”, 10.4” and 12.1” LCD
      One 50-pin header for support 4.3”, 7”, 10.2”, 10.4” and 12.1” LCD
      One VGA, support resolution 1024x768
      One LVDS for connect LVDS LCD
      Video HDMI V1.3,1080p@30fps
      One DVI interface
      One TV Out, RCA interface
. Camera
      Two 2x10 pins header
      One MIPI interface, MIPI-DSI, MIPI-CSI
. Audio
       Micphone
       Headphone
       Speaker Left
       Speaker Right
. Ethernet
       One RJ-45 port, DM9000AEP
      SDIO WIFI, support 802.11 b/g/n
. Connectivity:
      4 RS232 serial interfaces with DB9 port, in which 3 ports are 5-Line, one port are 3-Line.
       2 RS485 serial interfaces at COM5, COM6
. Other ports:
       One 20-pin 2.54 JIAG interface
       One 8x8 matrix keyboard interface
      2 channel SPI, SPI0, SPI1
      3 channel I2C, I2C0,I2C1,I2C2
       2 ADC, ADCIN1, ADCIN2
       2 DAC, DACOUT1, DACOUT2
       2 PWM, PWMOUT1, PWMOUT2
       GPIO/INT at one 2x10 pin-header
       BUS at one 2x25 pin-header
.  Dimension: Carrier board-320mmx250mm, CPU Board-96mmx76mm
. Many modules are available for your choice- GPS, WIFI, Camera, Bluetooth, USB 3G Modem, MINI Keyboard(USA).

Experience the performance andvantages offer by 1GHz CPU S5PV210,
The S5PV210 provides state-of-the-art 3D performance and a rich collection of multimedia support, while achieving the lowest power consumption.It is the only sensible processor choice for Tablest PC and Smartphone products.The CPU can makes your Tablets PC and Smartphone works more than 10 hours.
It supports Built-in HD level image (2048x2048) , Multi-Format Codec 1080p@30fps MPEG 2/4, H.264/H.263, VC-1, XviD. And OUT-put TV out , HDMI 1.3 for 1080p, 1080i, and it can support USB OTG 2.0, 3D Graphic A ccelerator . Also, it is possible to boot USB and SD Card. This board with SDRAM supported Bus Speed of 400MHz and L2 Cache 512KB memory support is full solution board which developers can have all specification test (Full Spec.) like high function Mobile Device, Industry Control/ System Control Device as it consumes lower power and more function than previous ARM board.
The KIT S5PV210 Development Board is based on S5PV210.The kit makes full uses of the the CPU,coming with schematics drawing and source code for Wince6.0 and Android2.1. It is important to get Boardcon technical supports by purchasing the evaluation kit. The most key point that makes your products have lowest power consumption ,high performance and shortest time on-market.

Software:

OS	Item	Feature	Description
Android2.1	Bootloader	Uboot-1.3.4	Main functions: 1.Supporting Nand Flash erase/write/read 2.Supporting USB download Image 3.Supporting print, set, save Environment Variables 4.Supporting memory’s contents display/compare/modify 5.Supporting bootm, bootargs setting
		USB Installer.bin	Uboot boot process, download uboot by the process
		Image update	Support updating image from SD card or USB
	Kernel and drivers	Kernel version	Linux 2.6.29
	Kernel and drivers	Drivers(source code)	Serial ports, RTC, Ethernet,4.3” 7” ,10.2” LCD, 10.4”(LVDS) and 12.1” including Touch Screen, MMC/SD/SDIO, USB Host, USB OTG, LEDs, AC97, Camera , GPS, Keyboard,3-axis accelerometer, VGA,PWM, IIC,IIS,SPI, DMA, MFC, TVOUT, OpenGLES1.1 & 2.0, D3DM, HDMI V1.3 1080p@30fps, JPEG
	File System	File System	Yaffs File System
	Embedded GUI	Android2.1	Support file browser, Mediaplayer, Calendar, time, counter, Touch Screen Calibration program, Plug-in manager.
	Network protocol & application	Network Protocol	TCP/IP protocol, Telnet, FTP Client/server, boa web server
	Network protocol & application	Application	Alarm Clock, Bluetooth chat, Browser, Gallery,Calculator,Camera, Phons, Email, Maps, ES File Explorer, Mediaplayer, Music, Picsay, ASTRO, Gallery,
	Cross compiler Environment	Arm-2009q3.tar.bz2
	Debug Tools	DNW, MoviNAND_Fusing_Tool.exe, VmWare7.0

WinCE6.0	Bootloader	Stepldr	The final image is STEPLDR.nbo
		Eboot	The final image is EBOOT.bin and EBOOT.nbo Eboot main functions: 1. Ethernet download: Set static IP, HDCP gets Dynamic IP, Mac address setting, download kernel automatically by Ethernet when the system starts 2. USB download: update the image via USB OTG 2.0 3. Format Nand Flash 4. Format BinFS 5. Low-level Format 6. Set boot-up delayed time 7. Booting process bar
		uboot.nb0	Support updating image from SD card or USB
	System	Drivers	3.5” ,4.3”, 7”, 10.2”,and 10.4” LCD including Touch Screen, VGA, TVOUT,HDMI, LEDs, DVI
	System	Drivers	SD card, SPI, AC97, Camera, Ethernet, USB Host, USB OTG, Serial ports, RTC,GPS, WIFI,3G Module, IIC, JPEG,SD/MMC/SDIO, DMA, DrvLib, MFC, OpenGLES1.1 & 2.0, D3DM
	Application	Software features	Source code and test program for MPC, MPEG-4/H264/H263/VC-1, DirectorShow Filter, JPEG, OpenGL ES1.1 & 2.0
			TCPMP Media Player supports MPEG-4/H263/H264/VC-1, avi/mp4/m4v, mov/3gp/flv/mpg, DIVX/XVID, supporting Audio decoding MP1/MP2/MP3/AC3/AAC
			Many Message Tools-Skypem, MSN, QQ, OFFICE Tools-Word, Excel, PoewrPoint, PDF, txt
			.NET Compact Framework 3.5

Kit S5PV210 Development Kit Standard Contents:
. One ARM Cortex-A8 S5PV2100 Evaluation board
. One CD-ROM (WinCE 6.0 BSP, Android, Documents, tools, Schematic Drawing, datasheets)
. One Serial cable (IDC10-to-DB9)
. One 12V@2A Power adapter
. One Touch Pen
. One USB cable
. One Cross Ethernet cable

Main information of above product has been shown hereby above, detailed documents ONLY provided after your purchase.
If you have questions please send email asking us.
Online Order and pay by Paypal Now!

Online Order with more payment options.

Please contact us if you have any question for order and payment.
Sample price is exactly announced hereby above.
ONLY ask for quotation when order quantity > 3pcs.
Parts of product, like core module, SBC, stamp, daughter card, single board(without LCD), motherboard, baseboard, LCD etc, sell seperately, email us for quatation.

We provide technical support and Customize Design Service
Our delivery has mass producing quality assurance. We warrants our products against manufacturing defects for a period of one year from date of shipment to the original purchaser, and offers one year of software updates to registered customers free of charge.
