Description:
Android OS
Break away the windows system, no longer endure the dull industrial products. AndroidO/S enable customers run all kinds applications.
Multi-Data Capture Functions

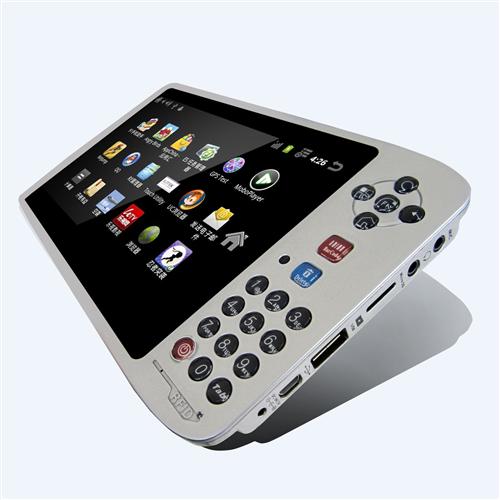

CM709 is with built-in symbol laser barcode reader, satisfies different application use.
Integrate 900M UHF RFID reader in the small mobile, the effective reading distance up to 40cm. Also it keep the 13.65M HF RFID reader in the same device, they can working without influence.
3G Communication
Support WCDMA 3G high-speed internet access. Users can transmit information anytime anywhere. Now, support HSDPA/HSUPA, download speed up to 14.4Mbps.
Various wireless communication
Support Bluetooth 2.1 + EDR and Wi-Fi IEEE802.11b/g.
ConvenientData Entry
Withalphabet /numeric keypad design, CM709 provide users with better experience toentry data information and more convenient in use.
3500mA.H Large Capacity Battery
With standard 3500mA.H large capacity battery, it can assure long time continuous working.
Market / Application
CM709 is a perfect device for Bus Ticketing System; Purchasing-Sales-InventoryManagement; Logistics; Restaurant, Membership Management System; Spot Ordering;Warehouse Management, Field Sales
Support Redevelopent and Offer professional technical support
CM709 Specifications
| Operation System |
Android V2.2 |
| CPU |
Qualcomm MSM7227, ARM11, 800MHZ |
| Memory |
512MB RAM +512 MB Flash ROM
Expansion (microSD): 32G (Maximum) |
| Display |
7'' Capacitive Multi-touch Screen; Resolution: 800*480 dpi |
| Entry Method |
19 keys/fingertip; Virtual keyboard entry; Input method: Handwriting, keypad |
| Port |
1 USB 1.1 Host /USB 2.0 Client |
| Audio |
microphone; speaker and 3.5mm stereo headphone jack |
| Power |
3.7V Li-Polymer 3500mAh; Standby time:72 hours; Charging time:4.5 hours
Charging : 220V AC convert to 5V DC Adapter |
| Communication |
WLAN: Wi-Fi IEEE802.11b/g
GSM/GPRS/EDGE
3G: WCDMA 900/2100MHz
Bluetooth 2.1 + EDR Class 2 |
| RFID |
HF:13.56M (ISO14443A Protocol), reading distance around 4cm.
UHF: 900M (EPC C1/G2,ISO18000-6B/6C Protocol), the effective reading distance up to 40cm. |
| Barcode Scanner |
1D: Built-in 1D CCD Scanner / Symbol laser scanner (option) |
| Supported Symbologies |
Code128,EAN-13,EAN-8,Code39,UPC-A,UPC-E, Codabar, Interleaved 2 of 5,China post 25,ISBN/ISSN,Code93, UCC/EAN-128,GS1 Databar,HIBC,etc |
| GPS |
Built-in SIRF GPS |
| Physical |
Size(L x W x H): 210mm x 122mm x 14 mm
Weight: 440g (Include battery)
Case: Silver
With Gravity Sensor |
| Durability |
Temperature in Operation: -10 to 60 ºC
Temperature in Storage: -20 to 65 ºC
Humidity in Operation: 5% - 90% (non-condensing)
Humidity in Storage: 5% - 95% (non-condensing) |
