SMS/GPRS Version, support print from SMS/GPRS. Price 149USD. (batch order please contact us for quotation)
Specification
- Black Print Speed:
- 60 mm/sec
-
- Max. Resolution:
- 8 dots/mm
- Max Paper Size:
- 57 x 50MM
- Model Number:
- GT5000S
- Style:
- Other
- Interface Type:
- SIM slot
- Use:
- SMS Printer
- Type:
- thermal printer
- built-in printer:
- auto-reply
- SMS coming tone prompt:
- print order information au...
Description

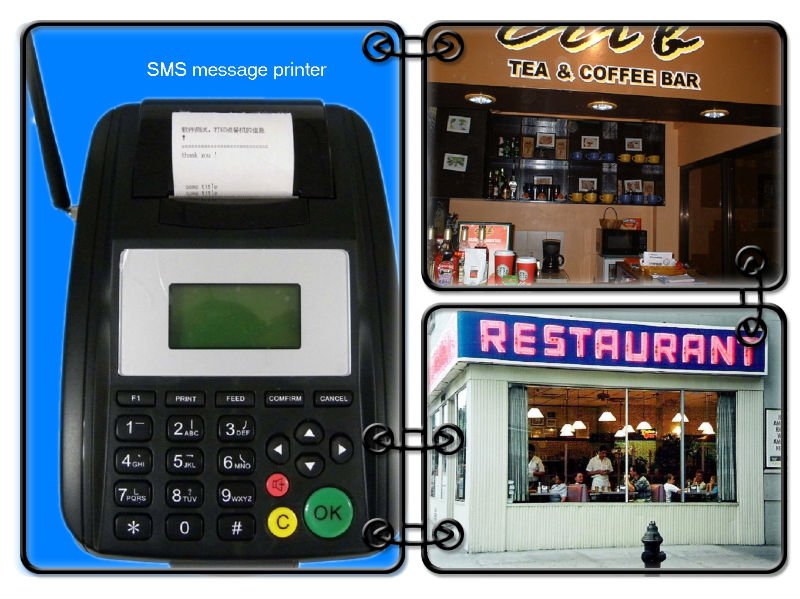

Brief Introduction The SMS printer is a small, portable, standalone device for receiving and printing text messages sent to it. It takes the advantages of the wide coverage of mobile communication network and convenient installation to meet the fast increasing requirement of users. The main functions are "Air Voucher Charge" and "SMS Printer". Suitable for restaurants to receive orders either directly from the customer or from a dispatcher, taxis/cab firms/delivery drivers to receive instructions on new pickups/deliveries, or any other situation where messages need to be conveyed to a remote party.
Key function
- 128*64 LCD Display, 24 keys, menu operation interface, easy operation
- Platen removal mechanism, easy loading paper and maintenance
- Prints SMS message
- Standalone device, no need to connect to PC
- Can keep 50 pieces SMS in memory
- Can also send SMS if required
- Air charge: can charge for mobile phone
- Make call
Specifications
- Power supply
- AC input: 100V-240V AC
- Power adaptor output: DC 9V/2.5A
- Operation temperature: 0-50
- Relative Humidity: 10%-90%
- Atmospheric pressure: 86-106kPa
GSM parameters
- Bands: Quad bands, GSM850/900/1800/1900MHz
- Frequency stability: <2.5ppm
- Receiver sensitivity: <-103dBm
- Transmit power: 3V
- SIM card interface: 3V
- Antenna: SMA connector
Thermal Printer
- Paper: Thermal paper roll, 58mm wide
- Effective printing area: 48mm
- Character: 12*24 dots
- Number of columns: 32 columns/line
- Printing Head Life: Paper traveling distance 50KM
Applications
- Restaurants: receive order either directly from the a website dispatch
- Receive order from website dispatch and send advertising SMS
- Online shopping;
- Taxis/cab firms/delivery drivers to receive instructions on new pickups/deliveries
- Any other situation where messages need to be conveyed to a remote party.
Ethernet Version, support Ethernet RJ45 port. print from remote web server. Price 69USD. To print sms, you set up a sms-gateway on your server side, then all ethernet version printer will be able to print sms. That is a solution for the site where there is internet access.
Feature:
Versatile and adaptable Easy to use and simple to maintain Easy paper loading for paper replacement
Specification
Print |
Printing Method |
Thermal Line |
Printing Speed |
50mm/s |
Resolution |
8dots/mm, 384dots/line |
Effective Printing Width |
48mm |
Character |
ANK Character Set |
12 x24 dot 1.25(width) x3.00(height)mm |
International Standard Ⅰ、Ⅱ
Class Chinese Set |
24 x24 dot 3.00(width) x3.00(height)mm |
Character per Line |
32CPL |
Paper Spec |
Paper Type |
Thermal paper |
Paper Width |
57.5± 0.5mm |
Paper Roll Diameter |
Max: 58.0mm |
Roll Core Inner Diamete |
10mm(min.) |
Paper Thickness |
53~60g/㎡ |
Paper Supply Method |
Easy Load |
Paper Solve Method |
Manual |
Reliability |
MCBF |
15 million lines |
TPH |
50km |
Emulation |
ESC/POS |
Driver |
Win 2000/2003/XP/Vista/Win 7 |
Sensor |
Paper End Sensor |
Drawer Port |
1 Port |
Interface |
RS-232, Parallel, USB, Ethernet RJ45 |
Power Supply (Adapter) |
AC100 ~240V ± 10%(include) DC 12V, 2A |
Physical |
Net Weight |
0.81kg |
Gross Weight |
1.7kg |
Printer Dimension |
215(L)X135(W)X113(H)mm |
Color |
white/black |
