Description:
Powerful performance
CI360 is with high speed 533MHZ processor, windows mobile6.5 OS. Integrate Huawei stable performance CPU. It provides large capacitymemory of 128MB SDRAM 256MB ROM and support expansion memory up to 32G via Micro-SD card, ensures users runapplication smoothly.

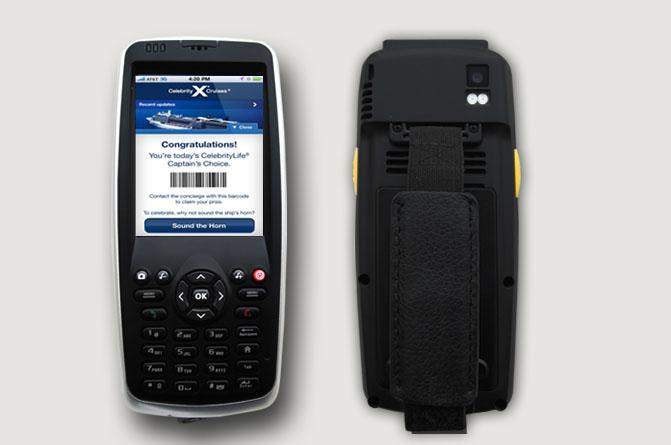

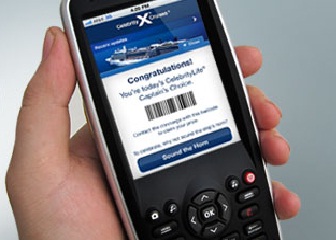

Rugged smart terminal
With compact pocket-size design, CI360 fits naturally in onehand, besides, handheld belt ensure user easy take. With IP54 protection, it can withstand 1.5m multiple drop onto concrete.
Barcode scanner
CI360 is with built-in 1D CCD or Laser barcode scanner, andcan easily transmit data information by Wi-Fi or GPRS in real time.
Field Mobility
Withbuilt-in SiRF GPS module ensures simple and fast detection of current locationand thus accelerated positioning and navigation. It enables mobile workers totrack the current location and to optimize the routes for field service. Voicecommunication improves mutual better contact.
Multiple Function
CI360, with superior voice communication and data transmitfeatures offers performance as a smart phone.
With 13.56Mor 125KHZ RFID function.
1.3 Mega Pixel camera, with LED flash light, enable user captureimages.
Market/ Application
CI360 can be widely use for Logistics; Parking management;Field service; Mobile data collection; Cargo & workforce Monitoring; SpotOrdering; post/parcel delivery; warehouse management etc.
CI360 Specifications
| Operation System |
Windows Mobile 6.5 |
| CPU |
Hisilicon K3, ARM 926E, 533MHz |
| Memory |
128MB RAM + 256MB Flash ROM
Expansion (MicroSD): 32G (Maximum) |
| Display |
3.2'' TFT QVGA color touch screen; resolution 240*320 dpi |
| Entry Method |
12 alpha/numeric keys, 12 function keys, 5 navigation keys, 2 scan keys, 1 reset key;
Attached stylus |
| Communication |
WLAN: IEEE802.11b/g
USB/Serial port: Micro USB 2.0
Audio: Speaker/microphone
GSM/GPRS: 850/900/1800/1900MHz (voice communication)
Bluetooth: Ver. 2.1 + EDR class 2.0 |
| Power |
Rechargeable 3.7V, 2400 mAh battery; Enclosed power supply,desktop charger;
Charging time: 6~7 hours |
| Functions |
RFID: LF:125khz/134.2Khz HF:13.56M
Barcode Scanner: CCD/ symbol laser barcode scanner (optional)
GPS: Integrated SIRF
Camera: 1.3 mega pixel, Auto-focus, with flashlight |
| Physical |
Dimensions (w x d x h): 152mm x 68mm x 27mm
Weight: 260g (Include battery)
Case: Black |
| Durability |
Temperature in Operation: -10 to 50 °C
Temperature in Storage: -40 to 60 °C
Humidity in Operation: up to 90% (non-condensing)
Humidity in Storage: up to 90% (non-condensing)
Drop Test: 1.5m drop onto concrete
Protetion Rate: IP54 |
