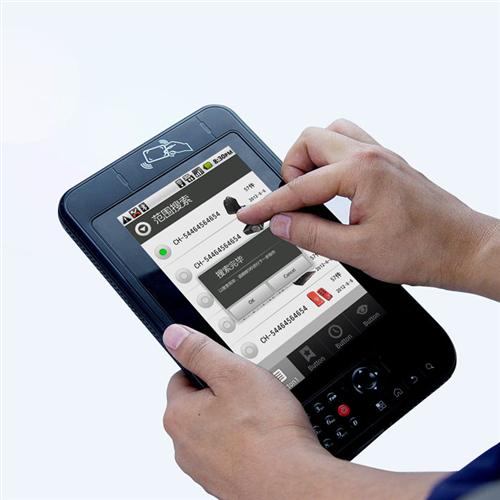

Description:
Android OS
Break away the windows system, no longer endure the dull industrial products. AndroidO/S enable customers run all kinds applications.
Multi-band RFID Data Capture & 5.0 Mega pixel Camera
CM719 is with built-in 900M UHF RFID reader, support EPC C1/G2, ISO18000-6B/6C protocol, satisfies different application use. It can read the anti-metal tags, laundry tags, security tags, adhesive tags etc.
Andthe 5.0Mega pixel color camera with auto focus and flash light supports visualinformation to any issue, also readable of QR code.
3G Communication
Support WCDMA 3G high-speed internet access. Users can transmit information anytime anywhere. Now, support HSDPA/HSUPA, download speed up to 14.4Mbps.
Various wireless communication
Support Bluetooth 2.1 + EDR and Wi-Fi IEEE802.11b/g.
ConvenientData Entry
Withalphabet /numeric keypad design, CM719 provide users with better experience toentry data information and more convenient in use.
5600mA.H Large Capacity Battery
With standard 5600mA.H large capacity battery, it can assure long time continuous working, and standby time up to 10 days.
Market / Application
CM719is a perfect device for supply chain, automation production line, air parcels,containers, railway parcels, logistics management applications.
Support Redevelopent and Offer professional technical support
CM719 Specifications
| Operation System |
Android OS v2.2 |
| CPU |
Qualcomm MSM7227 ARM11 800MHZ |
| Memory |
512MB RAM +512 MB Flash ROM
Expansion(microSD) : 32G (Maximum) |
| Display |
7'' Capacitive Multi-touch screen; Resolution: 800*480 dpi |
| Entry Method |
Virtual keyboard physical keys entry |
| Port |
1 USB 1.1 Host /USB 2.0 Client |
| Power |
3.7V Li-Polymer 5600mAh |
| Communication |
WLAN: Wi-Fi IEEE802.11b/g
GSM/GPRS/EDGE: 850/900/1800/1900MHz
3G: WCDMA 900/2100MHz
Bluetooth 2.1 + EDR class 2 |
| RFID |
UHF: 900M (EPC C1/G2,ISO18000-6B/6C Protocol), effective reading distance up to 3m. |
| Camera |
5.0Mega Pixel, auto focus, with flash light |
| Barcode |
2D: readable QR code via camera |
| GPS |
Built-in SIRF GPS |
| Physical |
Size (L x W x H): 235 x 135 x 30.4 mm
Weight: 740g (Include battery )
Case: black
Gravity Sensor: support |
| Durability |
Temperature in operation: -10 to 60 ºC
Temperature in storage: -20 to 65 ºC
Humidity in operation: 5% - 90% (non-condensing)
Humidity in storage: 5% - 95% (non-condensing) |
Online Order Now! Global Shipping in 2 days!
We accept online order and ship globally, our online order system will tell shipping fee according to your address, and automaticly generate PI Invoice to you.
Please send email to us if you have any question for this product, or want product document in more detail, or question for order or payment or shipping. Contact information is at the bottom of the page.
Sample price is announced hereby above. Ask for quotation when order quantity > 3pcs.
Parts of product, like core module, SBC, stamp, daughter card, single board(without LCD), motherboard, baseboard, LCD, sell seperately, email us for quatation.
find gps,gprs,wifi,camera etc in modules and bluetooth,485,can etc in accessories, or enclosures, jlink v8, ulink, openjtag etc tools.
We are now offer Capacitive Touch Panel for all of our ARM platforms.
Product Warranty and Technical Support.
Our delivery has mass producing quality assurance. We warrants our products against manufacturing defects for a period of one year from date of shipment to the original purchaser, and offers software updates lifetime to registered customers free of charge. We have an experts team to provide technical support.
