Description:
Android OS
AndroidO/S enable customers run all kinds applications.
Military quality, Rugged/ IP65
CM380 is can withstand multiple drops onto concrete from 1.5 meters. As well as environmental conditions with its IP65 sealing design, it support underwater operation.
Scratch-resistant Touch Screen
CM380 is with 3.8-inch Gorilla Glass from famous helicopter glass manufacturer, It is very hard, scratch-resistant and breakage-proof effect is outstanding, and the daily waterproof and dustproof effect is also very good. It can adapt on-site environmental well.
Multi-Data Capture Functions
It is designed special for industrial use, with built-in Symbol laser barcode scanner, it suitable for all kinds of complicated industrial environment. Integrated patent RFID reader, offer reliable card reading.
3G Communication
Support WCDMA 3G high-speed internet access. Users can transmit information anytime anywhere. Now, support HSDPA/HSUPA, download speed up to 14.4Mbps.
Various wireless communication
Support Bluetooth 2.1 + EDR and Wi-Fi IEEE802.11b/g.
Convenient Data Entry
With alphabet /numeric keypad design, CM380 provide users with better experience to entry data information and more convenient in use.
1900mA.H Large Capacity Battery
With standard 1900mA.H large capacity battery, it can assure long time continuous working.
Market / Application
CM380 is a perfect device for Purchasing-Sales-Inventory Management; Government remote working; Warehouse Management; Medicine management; Retail management and associates mall e-commerce management; Logistics management; Ordering; Access Control etc.
Support Redevelopent and Offer professional technical support
CM380 Specifications
| O/S |
Android OS v2.2 |
| CPU |
Qualcomm MSM7227 ARM11 800MHZ |
| GPU |
Adreno 200 |
| Memory |
512MB RAM +512 MB Flash ROM
Expansion(microSD) : 32G (Maximum) |
| Display |
3.8'' Capacitive Multi-touch screen; Resolution: 800*480 dpi |
| Entry Method |
12 alpha/numeric keys, 2 telephone keys
Virtual keyboard entry
Input method: Handwriting, keypad |
| Port |
USB2.0 |
| Audio |
microphone; Speaker and 3.5 mm stereo headphone jack |
| Power |
3.7V Li-Polymer 1900mAh
Standby time:72 hours
Charging time: 5-6 hours |
| Communication |
WLAN: Wi-Fi IEEE802.11b/g
GSM/GPRS
3G: WCDMA 900/2100MHz
Bluetooth |
| RFID |
HF:13.56M (ISO14443A Protocol), reading distance 4cm. |
| Camera |
3.0 Mega Pixel camera, auto focus, with LED light |
| Barcode Scanner |
1D: Built-in 1D CCD Scanner/ Symbol laser scanner( option)
Support: Code128,EAN-13,EAN-8,Code39,UPC-A,UPC-E, Codabar, Interleaved 2 of 5,China post 25,ISBN/ISSN,Code93, UCC/EAN-128,GS1 Databar,HIBC,etc
2D: readable QR code via camera |
| GPS |
Built-in SIRF GPS |
| Physical |
Size(L x W x H):135 x 69 x 16 mm
Weight:150g (Include battery )
Case: Black |
| Support |
Gravity Sensor
Electronic Compass
Light Sensor
Distance Sensor |
| Durability |
Temperature in operation: -10 to 60oC
Temperature in storage: -20 to 65 oC
Humidity in operation: 5% - 90% (non-condensing)
Humidity in storage: 5% - 95% (non-condensing) |
| Drop Test |
1.2 meter onto concrete |
| Protect Rate |
IP65 |
The design of CM380 is according to IP65 protection rating:
The definition of IP65:
The first number 6 means dustproof, completely prevent the instrusion of outside materials, especially the dust.
The second number means waterproof, 5 means prevent the instrusion of injection water; 6 means prevent the instrsion of huge wave; 7 means prevent the instrusion of the water when dipp the device into the water.
The protection rating of CM380 completely meets IP65, challenge higher protect rate. Put the device under water for 5sec, the barcode scanner still works normally.
Above test prove that CM380 fully compliance with IP65 protection rate, can satisfy most of the logistics, express and electricity supplier outdoor work environment, even if heavy rain or fall into the water, needn't to worry about device damage!

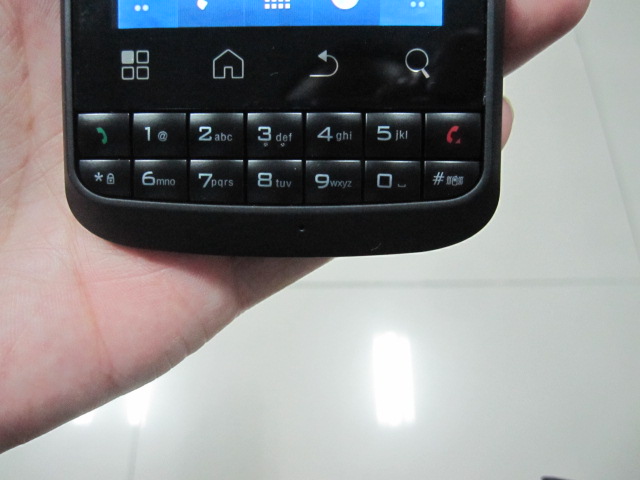

Waterproof Keypad:

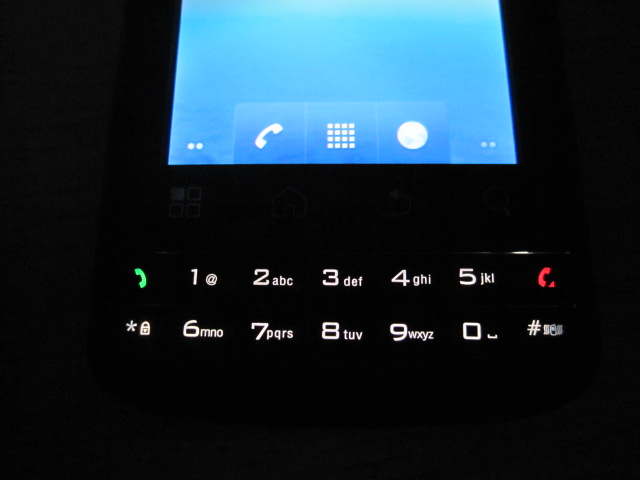

Keypad with backlight:
Display Test:
CM380 LCD is very delicate, choose TFT crystal screen. Combine the advantages of both reflective screen and full-transparent screen. Has excellent reading ability under sunlight and weak light or dark.

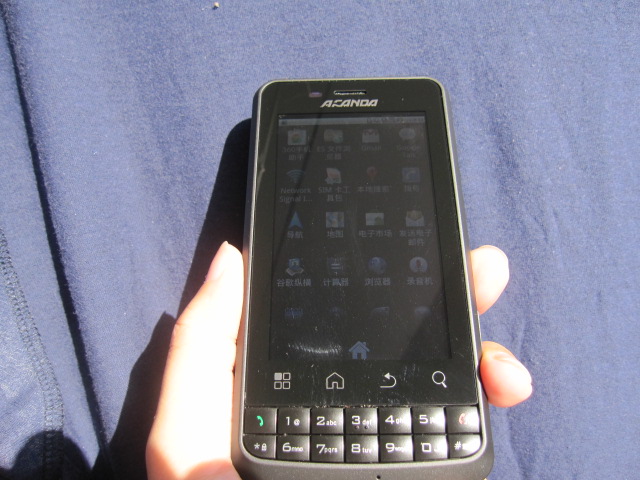

White background under strong sunlight.
Black background under strong sunlight.
Absolute true effect, the picture did not make any post-processing.
Outdoor Test for waterproof, dustproof and scratch-resistant performance:

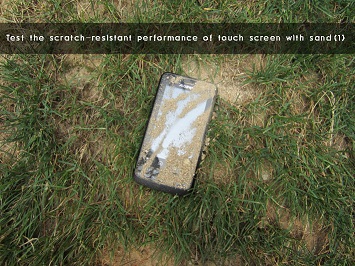

Put some sand on the screen, and slide...

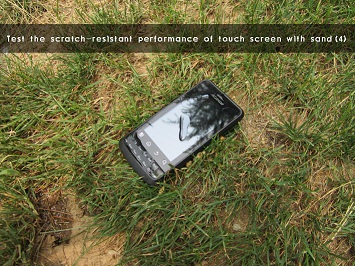

Flushing with water, the screen still clean as new. The scratch-resistant performance is perfect.
Demonstrate Android typical game ANGRYBIRD, hope the reader can has a primary impress of CM380 performance. Because industry application don't need 3 D accelerated and dynamic interface, so it in general use hardware resources as half of runing a game.
If the device is ok to run a game, then run the industry application will no problem.
