Specification:
Dimension: 100 x 80 mm
CPU: 1.5 GHz Samsung Exynos4412 ARM Cortex-A9 (Quad-Core)
RAM: 1 GB, 32 bit Bus
Flash: up to 4GB eMMC Flash
Ext. Memory: SD-Card socket
Serial Ports: 3x serial port connectors
USB: 1x USB-A Host 2.0, 1x MicroUSB Slave/OTG 2.0
Audio Output: 3.5 mm stereo jack
Ethernet: RJ-45 10/100M
RTC: Real Time Clock with battery
Camera: 20 pin (2.0 mm) Camera interface + 15 pin MIPI-CSI
LCD Interface: 41 pin connector for FriendlyARM Displays and VGA Board
Monitor: HDMI
User Inputs: 2x push buttons
User Outputs: 2x LEDs
Expansion: 30 pin GPIO1 + 16 pin GPIO2 + 6 pin Sensors (2.0 mm)
Power: regulated 5V
OS Support
Linux
Ubuntu
Android
Linux-3.5.0 and Qt4.8.5 full support.
Android 4.2 System Feature
| The latest Android 4.2 |
| Support 2D/3D acceleration, 3G dial, 1080P HD video, HDMI output (including audio and video) |
| Cross compiler |
arm-linux-gcc-4.5.1-v6-vfp |
automatically detect armv7 instruction, support floating point hardware |
| Bootloader4412 |
Support SD card offline quick programming |
customized specifically, not open source |
| EXT4 file format support systems programmer |
| Support for automatic identification MMC/NAND boot |
| Programming tools support WindowsXP/Windows7 |
| Android Kernel |
Linux 3.5.0 |
BSP Source code provide |
| Support EXT4/NFS/FAT32 file system formats |
Source code provided, Samsung |
| eMMC Driver |
Source code provided by Samsung |
| Watchdog Driver |
Source code provided by Samsung |
| RTC driver |
Source code provided by Samsung |
| LED driver |
Source code provided by us |
| User Key driver |
Source code provided by Samsung |
| SPI Driver |
Source code provided by no test |
| IIC-EEPROM driver |
Source code provided by Samsung |
| Buzzer（control by PWM) driver |
Source code provided by us |
| ADC driver(AIN0,1,2,3) |
Source code provided by us |
| Capacitive touch Driver |
Source code provided by us |
| LCD backlignt control |
Source code provided by us |
| LCD driver(7"LCD and HD 7"LCD) |
Source code provided by us |
| USD HOST driver: USB Disk, USB Hub, USB key |
Source code provided by Samsung |
| USB Device driver: USB ADB |
Source code provided by Samsung |
| SD/MMC driver(up to 32GB) |
Source code provided by Samsung |
| Serial Port driver: four serial port |
Source code provided by Samsung |
| USB WIFi driver(RTL8192CU) |
Driver Module, add by us |
| Audio IN/Out driver |
Driver Module, add by us |
| G-Sensor driver |
Source code provided by us |
| FIMC driver |
Source code provided by us |
| JPEG driver |
Source code provided, no test |
| MFC driver |
Source code provided by Samsung |
| HDMI driver |
Source code provided by Samsung |
| 3D/2D driver |
Source code provided, no OpenGL and OpenVG |
| USB to Serial driver |
Source code provided by Samsung |
| |
|

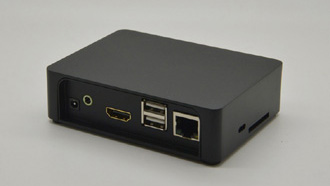

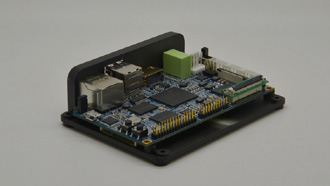

| Update, now have nice box (not many, ask us for this)
Package
Single Board without LCD, Price 89$.

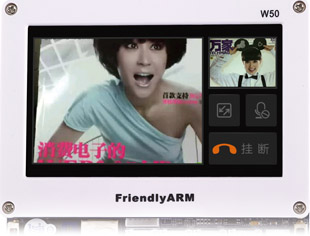

Single Board with 7inch resistive touch LCD, Price 149$.
Single board with 7inch Capacitive touch LCD hot sale 199USD!

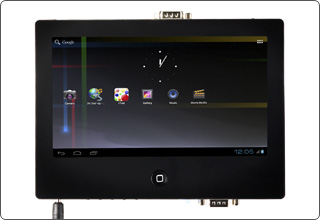

10.1 inch resistive touch screen kit price 299USD.
Package include all cables and documents download link.
miniPCIe 3G module, Price 69USD.
Types:
HSUPA/HSUPA/WCDMA
EVDO/CDMA20001X
HSUPA/HSDPA/TD-SCDMA
EVDO/CDMA
USB 3G Module, Price 59USD
All types support 3G network access,SMS,Android2.3/4.0, Linux.
Type1
TD-SCDMA/HSUPA:2010-2025MHz,1880-1920MHz - GSM/GPRS/EDGE 900/1800 MHz
Type2
CDMA20001X CDMA2000 EVDO, 800M
Type 3
CDMA20001x EV-DO Rev A 800/1900MHz
Type 4
UMTS/HSDPA/HSUPA 2100MHZ
Mini USB WIFI module, Price 19USD
802.11g/b, ap mode
USB WIFI module, Price 29USD
SD WIFI module price 39USD
Camera Module Price 29USD
Video AV input module, Pirce 49USD
2 Channel, (but not the same time)
CCD input need convert cable.
GPRS module Price 59USD
Huawei EM310 based
GPRS network, GSM phone call, SMS.
More pictures:
|
|
|
|
|
3D |
触摸循环校准 |
| |
|
|
|
|
|
|
|
3G Dial |
3G SMS |

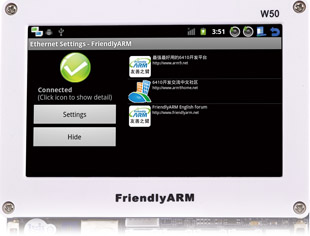

有线网络设置 |
| |
|
|
|
|
|
|
|
|
可录音说话的汤姆猫 |
| |
|
|
|
|
|
|
|
CMOS |
SD WiFi |
蓝牙 |
| |
|
|
|
|
|
|
|
HDMI |
|

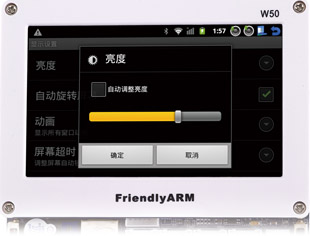

背光调节 |
| |
|
|
|
|
|
|
|
iTest |
|

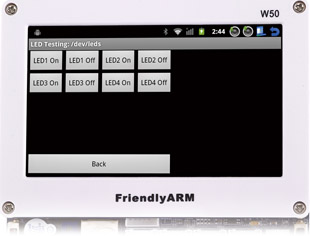

LED测试 |
| |
|
|
|
|
|
|
|
Book |
PWM |
ADC转换 |
| |
|
|
|
|
|
|
|
MP3 |

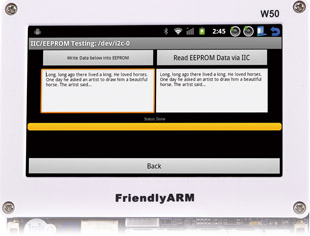

EEPROM |
