Dual-core OMAP 4430 Digital Video Processor running at 1GHz with 1GB RAM on board.
Standard Version Price 199$.
|
|
| Architecture |
ARM Cortex-A9 |
| Temperature |
Built with components rated 0C < T <85C |
| Processor |
Dual-core Texas Instruments OMAP4430 Digital Video Processor |
| Processor Speed |
1 GHz
|
| Graphics |
integrated POWERVR™ SGX540 graphics core |
| Heat Sink |
Heat sink mounted to the top of the POP memory stack. |
| RAM |
1 GB
|
| NAND |
0 MB
|
| Performance |
Up to 2,500 Dhrystone MIPS |
| 2 x 70-pin Hirose DF40 Connectors |
70-pin Hirose DF40 Connectors |
| Layout |
For OEM design, refer to pubs.gumstix.com |
| COM Mounting Holes |
Four (4) x #0 mounting holes for securing to DuoVero-series, or custom, expansion board. |
| Power Management |
SmartReflex™ 2 technology |
| Weight |
5.6g (excludes heat-sink)
42.6g (incl. shipping case and heat-sink) |
| Length |
58 mm (2.28 inches)
|
| Width |
17 mm (0.67 inch)
|
| Height |
4.2 mm (0.16 inch)
|
|
Dual-core OMAP 4430 Digital Video Processor running at 1GHz with 1GB RAM on board with an 802.11(b/g/n) and Bluetooth 3.0 interace sharing one antenna.
Wireless Version Price 249$.
| Architecture |
ARM Cortex-A9 |
| Temperature |
Built with components rated 0C < T <75C |
| Processor |
Dual-core Texas Instruments OMAP4430 Digital Video Processor |
| Processor Speed |
1 GHz
|
| Graphics |
integrated POWERVR™ SGX540 graphics core |
| Heat Sink |
Heat sink mounted to the top of the POP memory stack. |
| RAM |
1 GB
|
| NAND |
0 MB
|
| Performance |
Up to 2,500 Dhrystone MIPS |
| Bluetooth |
Included |
| 802.11 b/g/n |
Included |
| 2 x 70-pin Hirose DF40 Connectors |
70-pin Hirose DF40 Connectors |
| COM Mounting Holes |
Four (4) x #0 mounting holes for securing to DuoVero-series, or custom, expansion board. |
| Power Management |
SmartReflex™ 2 technology |
| Length |
58 mm (2.28 inches) |
| Size |
17x4.2 mm (0.67x0.16 inch) |
| |

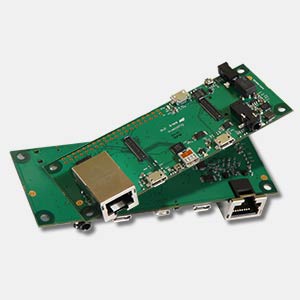

An expansion board to provide micro-HDMI, 10/100baseT Ethernet, USB Host, USB OTG, USB console and Stereo Audio.
Expansioin board Price 99$.
|
Expansion board
|
| 2 x 70-pin Hirose DF40 Connectors |
70-pin Hirose DF40 Connectors (Expansion side) |
| USB OTG |
USB Micro Connector |
| Battery connector |
Battery holder for 6mm rechargeable coin |
| Analog audio |
Included |
|
Online Order Now! Global Shipping in 2 days!
We accept online order and ship globally, our online order system will tell shipping fee according to your address, and automaticly generate PI Invoice to you.
Please send email to us if you have any question for this product, or want product document in more detail, or question for order or payment or shipping. Contact information is at the bottom of the page.
Sample price is announced hereby above. Ask for quotation when order quantity > 3pcs.
Parts of product, like core module, SBC, stamp, daughter card, single board(without LCD), motherboard, baseboard, LCD, sell seperately, email us for quatation.
find gps,gprs,wifi,camera etc in modules and bluetooth,485,can etc in accessories, or enclosures, jlink v8, ulink, openjtag etc tools.
