ODROID-U2 Exynos4412 Prime Board

Model Standard
Vendor Quickembed Trakmark
In Stock Yes Lead Time  3 days
Promotion Update Time
Voucher Limit
Product Name ODROID-U2 Exynos4412 Prime Board
Product ID 2013010317470075 Warranty  1 Year
Price US$99.00/unit

Shipping Fee and tax not included.

Turn your prospective idea into practical product real profit in 6 months.
Product Introduce:
ULTRA COMPACT 1.7GHz QUAD-CORE BOARD PC-like performance. Enjoy various PC peripherals on Android & Ubuntu Linux.
Product Detail:

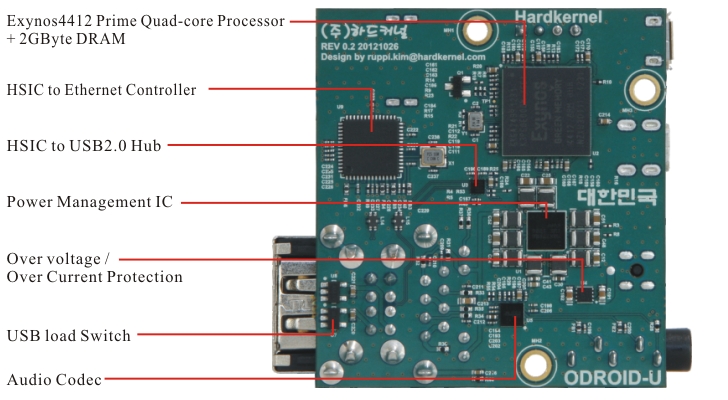

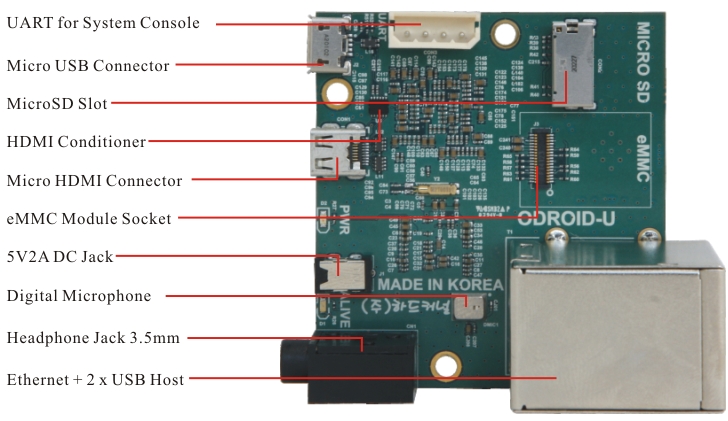

ULTRA COMPACT 1.7GHz QUAD-CORE BOARD

ODROID-U2 is a micro sized open development platform which is powered by Exynos4412 Prime. 1.7Ghz ARM Cortex-A9 Quad Cores show PC-like performance. Enjoy various PC peripherals on Android & Ubuntu Linux.

KEY FEATURES

* Low-cost development platform
* Ultra compact size with full metal enclosure
* Quad core ARM Cortex-A9 MPCore
* 10/100Mbps Ethernet with RJ-45 LAN Jack
* 2 x High speed USB2.0 Host port
* Audio codec with headphone jack and microphone on board
* Android 4.x & Ubuntu 12.10
* Community-driven projects & supports

$99.00
Worldwide shipping













Shipment Schedule : in 15 working days from your purchasing.

Full Schematics will be publically released on 31-January-2013. Please be patient.

You might need optional accessories. Please check it below : Recommend items are 5V2A Adapator, eMMC Module and HDMI cable. You need to add all necessary item in one cart to purchase them together.

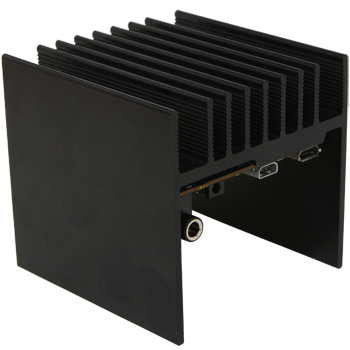

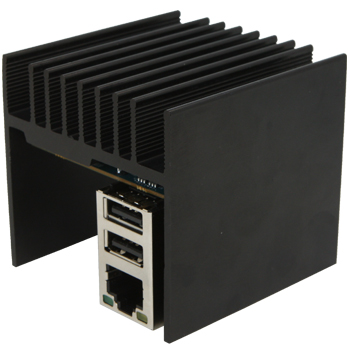

Full Aluminium Case Assembled : ODROID-U2 will be shipped with this case.





Actual size of the ODROID-U2


Please check optional accessories from the below. Recommended items are 5V2A Adaptor, eMMC Module and HDMI Cable.


SPECIFICATIONS

Processor Samsung Exynos4412 Prime Cortex-A9 Quad Core 1.7Ghz w/1MB L2 cache
Memory 2048MB(2GB) LP-DDR2 880Mega data rate
3D Accelerator Mali-400 Quad Core 440MHz
Video supports 1080p via HDMI cable(H.264+AAC based MP4 container format)
Video Out micro HDMI connector
Audio Standard 3.5mm headphone jack, Digital Microphone input
HDMI Digital
LAN 10/100Mbps Ethernet with RJ-45 Jack ( Auto-MDIX support)
USB2.0 Host  High speed standard A type connector x 2 ports
USB2.0 Device  ADB/Mass storage(Micro USB)
Display  HDMI monitor
Storage (Option) MicroSD Card Slot
eMMC module socket
Power (Option) 5V 2A Power
System Software u-boot 2010.12, Kernel 3.0.x, Android 4.x
Source code will be uploaded on download page after first shipment.
Case Aluminum full metal body with heat sink. (59 x 57 x 60 mm)
PCB Size  48 x 52 mm



BLOCK DIAGRAM



OPTIONAL ACCESSORIES


5V/2A Adaptor
ODROID can't be powered by micro-USB port.
So you need this power supply.

AC 100~240 Volt input
DC 5Volt / 2A output
Switching mode power adaptor
EU / US / Japan / Korea compatible

Plug specification : inner diameter 0.8mm and outer diameter 2.5mm

$9.00
Worldwide shipping
8GB
MicroSD Card
Pre-installed Android 4.x for ODROID-U2
Ready to run from out of box

Class 10 will be shipped. The brand might be changed.


$13.00
Worldwide shipping
WiFi Module Kit

The Realtek RTL8191SU is a highly integrated single-chip MIMO (Multiple In, Multiple Out) Wireless LAN (WLAN) USB 2.0 network interface controller complying with the IEEE 802.11n specification. It combines a MAC, 1T2R capable baseband and RF in a single chip, the RTL8191SU provides a complete solution for a high-performance wireless client.

Module + Antenna

$12.00
Worldwide shipping
USB-UART Module Kit
System console interface board for platform development and debugging.

CP2104: USB to Serial UART bridge IC with 1.8V interface
Molex5268-04 connector and cable assembly
Micro-USB cable


$19.00
Worldwide shipping
eMMC Module (8GB)
THGBM5G6A2JBAIR 8Gbyte eMMC Version 4.41 interface with 19nm NAND from Toshiba. 50Mhz 8bit DDR fast interface.
It is about 200% faster than SD Card Class 10

Pre-installed Android 4.x for ODROID-U2. Ready to run from out of box

eMMC_Reader is included.

$29.00
Worldwide shipping

eMMC Module (16GB)
THGBM5G7A2JBAIR 16Gbyte eMMC Version 4.41 interface with 19nm NAND from Toshiba. 50Mhz 8bit DDR fast interface.
It is about 200% faster than SD Card Class 10

Pre-installed Android 4.x for ODROID-U2. Ready to run from out of box

eMMC_Reader is included.

$49.00
Worldwide shipping

eMMC Module (64GB)

THGBM5G9B8JBAIE 64Gbyte eMMC Version 4.41 interface with 19nm NAND from Toshiba. 50Mhz 8bit DDR fast interface.
It is about 200% faster than SD Card Class 10

Pre-installed Android 4.x for ODROID-U2. Ready to run from out of box

eMMC_Reader is included.

$99.00
Worldwide shipping
Bluetooth Module
The mini USB Bluetooth dongle with CSR V2.1 EDR chipset, which works with ODROID-U2 Android 4.x platform.

Bluetooth v2.1+EDR compliant : Enhanced Data Rata (EDR) compliant for both 2Mbps and 3Mbps modulation modes
Full speed USB v1.1 Interface
Class II standard supports range of 10 meters
Low power consumption

$9.00
Worldwide shipping
HDMI Cable Full-size HDMI Type A to Micro-size Type D
Cable length : 1.5m


$9.00
Worldwide shipping
IO Board
USB to IO expansion board for GPIO/PWM/SPI/UART/I2C/ADC interfaces
3.3V/5V compatible PIC18F45K50-QFN USB Microcontroller is mounted.
Breadboard friendly 28pin header pins
Bootloader for firmware download / upgrade
Micro-USB Cable is included in the package
Example code for Android / Linux will be released.

$19.00
Worldwide shipping
Cooling Fan
Power : 5Volt / 120mA (max)
Dimension : 40x40x10mm
Fan speed : 4000rpm approx.
PWM port on ODROID-U/U2 2-pin header
Mountable on the heat-sink housing with 4 screws
This cooling fan is useful for who needs the full throttled Quad-core performance and over-clocking.

$19.00
Worldwide shipping
Micro
USB
Cable
In Android platform, you can transfer data files as well as OS images with this cable.
USB 2.0 Type A to Micro-size Type B
Cable length : 0.8m

$1.00
Worldwide shipping






Online Order Now! Global Shipping in 2 days!


We accept online order and ship globally, our online order system will tell shipping fee according to your address, and automaticly generate PI Invoice to you.
Please send email to us if you have any question for this product, or want product document in more detail, or question for order or payment or shipping. Contact information is at the bottom of the page.
Sample price is announced hereby above. Ask for quotation when order quantity > 3pcs.
Parts of product, like core module, SBC, stamp, daughter card, single board(without LCD), motherboard, baseboard, LCD, sell seperately, email us for quatation.
find gps,gprs,wifi,camera etc in
modules and bluetooth,485,can etc in accessories, or enclosures, jlink v8, ulink, openjtag etc tools.
We are now offer
Capacitive Touch Panel for all of our ARM platforms.


Product Warranty and Technical Support.
Our delivery has mass producing quality assurance. We warrants our products against manufacturing defects for a period of one year from date of shipment to the original purchaser, and offers software updates lifetime to registered customers free of charge. We have an experts team to provide technical support.
We have been running 8 years, this is our license from Chinese government website:
http://www.sgs.gov.cn/LicenceView/Id=20120530152953117
We have served 1000+ customers from 100+ countries all over the world, Please find a list of part of our customers here:
http://www.quickembed.com/Tools/Shop/Customer/Index.html
We can provide contact if you want a reference.
We are looking for sell/retail/ditribute/channel partners in all over the world.

You are encouraged to share your information in the forum, share your business information, share your success, it will get you more business and success!
If you need some partner, technical, hardware, software, marketing, channel, sales, just post your message on the forum, because someone in the world may be finding you!
Our world and technology is changing and growing so fast that no one no single company can do all work, clever people can get information from the web and try to make it but will take a lot time to learn, we need cooperation!
Promote your product in the forum, or just an idea, don't be afraid other will copy, there are similar products and ideas all over the world, the only difference is who will make it real in a right time in success!
If you want more formal, list your product in our web catalog, to promote it to all over world, we are open, please send email to us.
We can build a prototype sample very fast, for you, to demonstrate, to your customer.
A demo is much more powerful than a thousand words!
It will save you a lot of valuable time!
Make a concrete step from good idea to real success!
We help you succeed, providing ARM Embedded Quick Demo.

ODM/OEM Service


Layout, for special defined interface and resize the board for your requirements.
Product prototyping, sourcing accessories for your product requirements.
Recommend GPS module, GSM/GPRS module with communication software.
Software Developing.
Sourcing solution and turn key to you.

You might have interest to know what products this board makes, please send us an email to know more product design cases.  Embedded pc computer system has broad usge, some examples:
QButton, world first post-it bluetooth sensor, open data, customize for your usage.

Popular bluetooth v4.0 ble sensor tag, smart devices, wearable electronic computer.

Palm size desktop computer.

U-disk size computer


Android 4.0 5inch 7inch capacitive touch pad


9D position pose system digital compass
GPS, Compass and accelerator in one tiny module.

GPS GPRS LBS solution.
Navigate Locate Track Solution, Location Based Service


Robot Motor Medical Testing System
One motor control board controlling 9 motors at the same time
Robot arm move and grab.


12" to 15" size multimedia or HMI solution, fixed on wall or desk or large vehicle:

Backside:

10" solution, fixed in car:

7" solution, fixed in car:
more 7inch cases here:
http://www.quickembed.com/Tools/Shop/Solution/201001/67.html



Using SBC is as easy as 1,2,3; simply prototype and test your development using a suitable SBC, then design your custom connector board and finally build your product.

The advantage of SBC is that when you define a new product, you have only small change on baseboard/motherboard, no change on SBC/daughter board, it saves great effort, and save much expense as the SBC is big lots produced while baseboard can be produced in small lots,  also this helps improving the quality of your products.
Read more about arm board customize design odm service.
Read more about arm linux driver and application software develope.

Our mission is to provide quick start and easy use embedded platforms for maximize customers productivity. If you find any platform more competitive than ours, please do let us know. We can improve our product for you.
Those who want to list your product here in this web and sell to worldwide customers, please contact us.

-- Stay Hungry. Stay Foolish. Memory of Steve Jobs.
-- Dream bigger, Love Deeper, Live Longer! :-)





Search Similar or Related Products:
Customers Feedback:
Contact Us Instant: Skype: Phone Call: Tel: +86-2l-228l84l9. Email: quickembed@gmail.com, support@quickembed.com,
Welcome to Visit Us, Address: Jianchuan Road No.951, A409, Cangyuan Sci&Tech Park, Shanghai, China.

Copyright: QuickEmbed Technology Co.,Ltd., 2002-2014
