PandaBoard ES delivers extra MIPS with upto 1.2 GHz Dual-core ARM® Cortex™-A9 MPCore™ performance, enabling software developers access to an open OMAP4460 processor-based development platform. In addition to all the existing features of the OMAP4430 processor-based PandaBoard, the PandaBoard ES also has a DSI expansion header, Bluetooth® low energy-capable WiLink™ 6.0 combo connectivity module and a switch to control bootorder.
Like the original PandaBoard, the PandaBoard ES is ideal for the development and enhancement of feature-rich mobile platforms and products, PandaBoard can support various Linux-based operating systems such as Android, Chrome and Ubuntu.
Additional information about the board and its technology capabilities can be found at pandaboard.org, where you can also gain access to a growing, active development community.
OMAP4460 Processor :
- Dual-core 1.2 GHz ARM® Cortex™-A9 MPCore™ with SMP
- Full HD (1080p) multi-standard video encode/decode
- Imagination Technologies’ POWERVR™ SGX540 384 MHz Graphics Core
- 25% Increase in Graphics Performance over OMAP4430
- Supports all major API's including OpenGL® ES v2.0, OpenGL ES v1.1, OpenVG v1.1 and EGL v1.3
Memory:
- 1 GB low power DDR2 RAM
- Full size SD/MMC card cage with Support for High Speed & High Capacity SD cards
Display:
- HDMI v1.3 Connector (Type A)
- DVI-D Connector
- Simultaneous display of both HDMI and DVI-D with independent content
Connectivity:
- Texas Instruments WiLink™ 6.0 module
- WLAN 802.11 bgn
- Bluetooth® with BLE support
- Onboard 10/100 802.3u Ethernet
|
Interfaces:
- 1x USB 2.0 HS OTG port
- 2x USB 2.0 HS Host ports
- 1x RS-232 DB-9 UART
Expansion:
- General purpose expansion header (I2C, GPMC, USB, MMC, DSS, ETM)
- Camera expansion header
- LCD expansion header
- Parallel RGB24 support
- DSI support
Audio:
- 3.5" Stereo Audio in/out
- HDMI Audio out
Debug:
- JTAG
- 2 Debug LEDs (configurable)
- SYSCONFIG Boot Order Switches
Dimensions:
- Height: 4.5" (114.3 mm)
- Width: 4.0" (101.6 mm)
- Weight: 81.5 gram / 2.88 oz
|
This expansion adds to the PandaBoard / PandaBoard ES many new peripherals such as 7-inch LCD, capacitive touch screen, compass, gyroscope, Sim5320 3G module, GPS/WCDMA antenna connector, line in/out for voice support and SIM card holder. Android 4.0, Android 2.3, and Ubuntu 11.04 SD images are included.
PandaBoard expansion CAP features:
- 7,0-inch color TFT LCD
- 800x480 pixels resolution
- Capacitive touch
- Sim5320 GPS / WCDMA module
- GPS/WCDMA antenna connector
- SIM card holder
- Line in/out for voice support
- Five user buttons
Price 229usd for a kit board
+249usd for 7inch resistive touch screen LCD
+269usd for 7inch capacitive touch screen LCD
+100usd for a case (no LCD)
Online Order Now! Global Shipping in 2 days!
We accept online order and ship globally, our online order system will tell shipping fee according to your address, and automaticly generate PI Invoice to you.
Please send email to us if you have any question for this product, or want product document in more detail, or question for order or payment or shipping. Contact information is at the bottom of the page.
Sample price is announced hereby above. Ask for quotation when order quantity > 3pcs.
Parts of product, like core module, SBC, stamp, daughter card, single board(without LCD), motherboard, baseboard, LCD, sell seperately, email us for quatation.
find gps,gprs,wifi,camera etc in modules and bluetooth,485,can etc in accessories, or enclosures, jlink v8, ulink, openjtag etc tools.
We are now offer Capacitive Touch Panel for all of our ARM platforms.
Product Warranty and Technical Support.
Our delivery has mass producing quality assurance. We warrants our products against manufacturing defects for a period of one year from date of shipment to the original purchaser, and offers software updates lifetime to registered customers free of charge. We have an experts team to provide technical support.
We have been running 8 years, this is our license from Chinese government website:
http://www.sgs.gov.cn/LicenceView/Id=20120530152953117
We have served 1000+ customers from 100+ countries all over the world, Please find a list of part of our customers here:
http://www.quickembed.com/Tools/Shop/Customer/Index.html
We can provide contact if you want a reference.
We are looking for sell/retail/ditribute/channel partners in all over the world.
You are encouraged to share your information in the forum, share your business information, share your success, it will get you more business and success!
If you need some partner, technical, hardware, software, marketing, channel, sales, just post your message on the forum, because someone in the world may be finding you!
Our world and technology is changing and growing so fast that no one no single company can do all work, clever people can get information from the web and try to make it but will take a lot time to learn, we need cooperation!
Promote your product in the forum, or just an idea, don't be afraid other will copy, there are similar products and ideas all over the world, the only difference is who will make it real in a right time in success!
If you want more formal, list your product in our web catalog, to promote it to all over world, we are open, please send email to us.
We can build a prototype sample very fast, for you, to demonstrate, to your customer.
A demo is much more powerful than a thousand words!
It will save you a lot of valuable time!
Make a concrete step from good idea to real success!
We help you succeed, providing ARM Embedded Quick Demo.
ODM/OEM Service
Layout, for special defined interface and resize the board for your requirements.
Product prototyping, sourcing accessories for your product requirements.
Recommend GPS module, GSM/GPRS module with communication software.
Software Developing.
Sourcing solution and turn key to you.
You might have interest to know what products this board makes, please send us an email to know more product design cases. Embedded pc computer system has broad usge, some examples:
QButton, world first post-it bluetooth sensor, open data, customize for your usage.

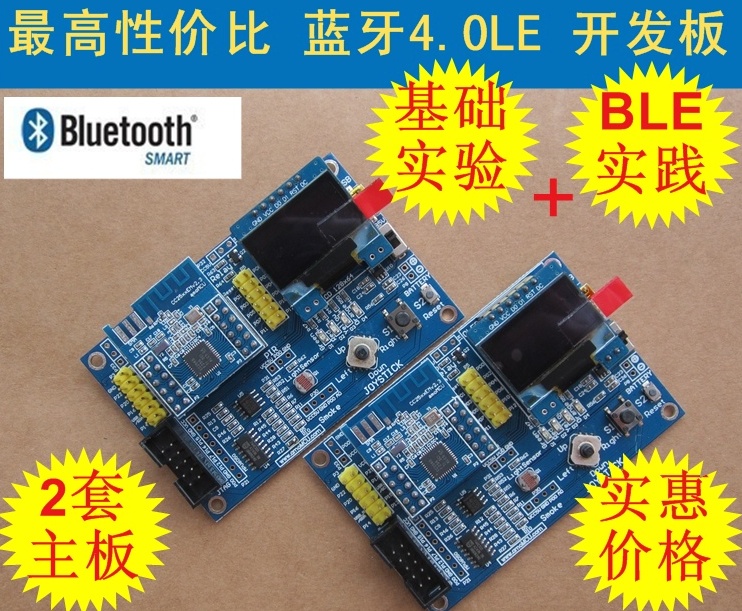

Popular bluetooth v4.0 ble sensor tag, smart devices, wearable electronic computer.
Palm size desktop computer.

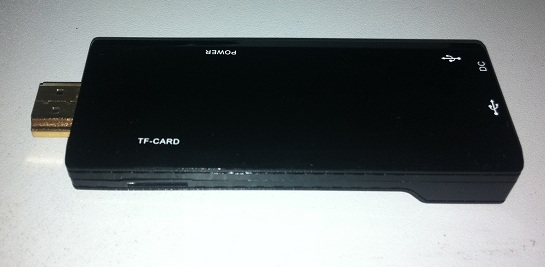

U-disk size computer
