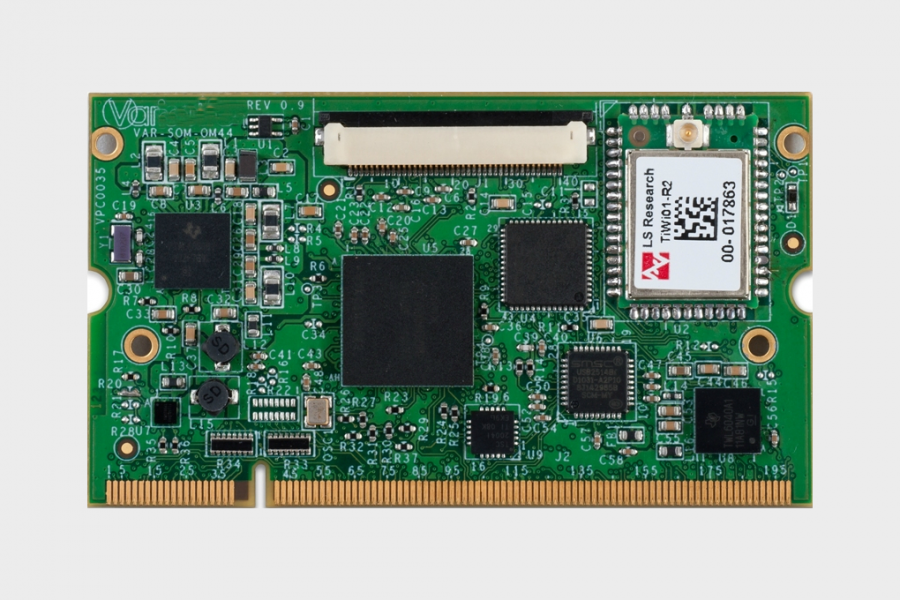

The OMAP4460SOM, offers an ideal solution for a wide range of applications which require rich multimedia functionality as well as high-processing power. This compact, cost effective and low consumption OMAP4460 SoM offers a performance level of an Intel Atom.
Block diagram
(Click to enlarge)
More information on OMAP4460
To learn more about TI OMAP4460 please visit Texas instruments page here.
▪ Texas Instruments OMAP4460 Processor
▫ 1.2GHz - 1.5GHz Dual-core ARM Cortex-A9 MPCore with Symmetric Multiprocessing (SMP)
▫ PowerVR™ SGX540 graphics core @384MHz
▫ NEON SIMD Coprocessor
▫ IVA 3 multimedia accelerator supporting up to 1080p and 1080p Stereoscopic 3D
▪ 512-1024MB 400MHz LPDDR2
▪ Built-In micro-SD Socket
DISPLAY
▪ LCD interface - Parallel RGB/DSI Supporting 1400x1050 24bit
▪ HDMI interface - Supporting 1080p
▪ 4-wire touch screen panel interface
AUDIO
▪ Line-in
▪ Stereo Headphone out
▪ Digital microphone
▪ S/PDIF Out
NETWORK
▪ 10/100/1000Mbps Ethernet controller
▪ Wi-Fi 802.11 b/g/n
▪ Bluetooth V4.0 + EDR
EXPANSION
- ▪ 3 x SD / MMC / SDIO interfaces
▪ 2 x HS USB 2.0 Host
▪ HS USB 2.0 OTG
CAMERA INTERFACE
▪ 2 x CSI
▪ CPI
▪ 20MP main camera,12 MP stereo (dual cameras)
▪ McBSP
▪ SPI interface
▪ I2C interface
▪ 1 Wire/ HDQ
▪ 3 x UARTS, up to 3.6 Mbps
OS Support
▪ Linux 3.1
▪ Android ICS
▪ Ubuntu Oneiric
POWER
▪ Single 3.3 DC-IN power supply
▪ RTC external backup battery
MECHANICAL SPECIFICATIONS
▪ Interface : SODIMM 200 universal connector
▪ Dimensions (W x L x H) : 38.5mm x 67.8mm x 3.7mm
▪ Temperature range
| ▫ Commercial |
: |
0C - 70C |
| ▫ Extended |
: |
-25C - 85C |
EVM Kit, Price 1299usd
