- 1GHz Samsung S5PV210 ARM Cortex-A8 Application Microprocessor
- 1GBytes Mobile DDR2 and 1GBytes NAND Flash
- UART, USB Host/OTG, Ethernet, HDMI, DVI-D/VGA, Audio, SD,...
- Optional WiFi and 3G Modules
- Ready-to-Run Android 2.2 and WinCE 6.0 OS
Hardware Features
 Mechanical Parameters
Processor
- Samsung S5PV210 Mobile Application Processor
- Up to 1-GHz ARM® Cortex™-A8 Core with NEON, also supports 800-MHz operation
- 32KB I-Cache; 32KB D-Cache; 512KB L2 Cache
- Onchip 64KB ROM and 96KB SRAM
- Built-in the programmable PowerVR SGX540 core
- 2D/3D Graphics Acceleration
- Multi Format Codec provides encoding and decoding of MPEG-4/H.263/H.264 up to 1080p@30fps and decoding of MPEG-2/VC1 video up to 1080p@30 fps
Memory
Onboard Headers and Signals Routed to Pins
- Four 0.5mm space 2*40-pin board-to-board female expansion connectors
- TFT LCD Interface (support 24/ 18/ 16-bpp parallel RGB Interface LCD)
- Analog TV interface (support NTSC / PAL)
- HDMI Digital TV Interface (Supports 480p, 576p, 720p, 1080i, 1080p)
- 3-channel Camera Interfaces (Supports ITU-R BT 601/656 YCbCr 8-bit, MIPI mode)
- PCM Audio Interface (Supports three port PCM interface)
- AC97 Audio Interface (Supports AC97 Full Specification)
- JTAG Debugger Interface
- USB 2.0 OTG (Supports high-speed up to 480 Mbps)
- USB 2.0 Host (Supports high-speed up to 480 Mbps)
- 14*8 Key Matrix support
- 2-channel SPI Interfaces
- 3-channel IIS bus interfaces
- 3-channel IIC bus interfaces
- 4 channel HS-MMC/SD
- 4-channel UART (Supports 5-bit, 6-bit, 7-bit, or 8-bit serial data transmit/ receive)
- 10-channel multiplexed ADC (support Maximum 500Ksamples/sec and 12-bit resolution)
- GPIO (up to 237 multi-functional input/ output ports)
Expansion Board
Audio/Video Interfaces
- HDMI input interface (supports 1080p@30fps video encoding and decoding of MPEG-1/2/4, H.263, and H.264, and decoding of VC1)
- DVI high-resolution image display output port (supports 720p, 30fps signal)
- Standard VGA interface (supports resolution up to 1366*768 pixels, uses the same channel to DVI so can not be used with DVI at the same time)
- 3.5mm Audio input jack (Mic In)
- 3.5mm Audio output jack
Data Transfer Interfaces
- Serial port:
- 1 x 5 line Debug serial port, RS232 voltage (UART2, brings out by DB9 connector)
- 1 x 3 line serial port, TTL voltage (UART0, brings out by one 2.0mm space 6-pin connector)
- 1 x 5 line serial port, TTL voltage (UART1, brings out by one 2.0mm space 6-pin connector
- USB port:
- 1 x USB2.0 OTG port, High-speed (Mini USB-B type)
- 4 x USB2.0 Host ports, High-speed (USB-A type)
- 1 x SD card slot
- 1 x 10/100Mbps Ethernet interface (RJ45 connector)
Input Interfaces and Other Facilities
Software Features
| OS |
Item |
Feature |
Description |
| Android |
BIOS |
x-loader |
NAND / ONENAND |
| MMC/SD |
| FAT |
| u-boot |
NAND / ONENAND |
| MMC/SD |
| FAT |
| NET |
| Kernel and drivers |
Version |
Android2.2 |
| File system Format |
Supports ROM/CRAM/EXT2/EXT3/FAT/NFS/ JFFS2/YAFFS2 file systems |
| Driver |
Nand Flash, SDRAM, HDMI, DVI-D, VGA, Serial port, Ethernet, USB OTG, USB EHCI, SD card, Audio input/output, Key, LED, RTC (in source code) |
| 2D/3D (library file, no source code provided) |
| File system |
Format |
Ramdisk, EXT3, Yaffs2 File System |
| Function |
udev support |
| Application Demo |
MP3/MPEG4/H264 DSP hardware decoder
(library file, no source code provided) |
| Cross-compile toolchains |
arm-eabi-4.4.0+arm-2009q3-67-arm-none-linux-gnueabi-i686-pc-linux-gnu |
| WinCE |
Steploader |
UART |
| NAND |
| MMC/SD |
Eboot
(WinCE6.0) |
UART |
| NAND |
| MMC/SD |
|
OAL
(in source code) |
KILT (USB RNDIS & USB serial), Boot parameter, RTC, System timer, Interrupt controller, MMU, Serial Debug Port, Kernel Profiler-use timer2, Library Abstrations (GPIO abstrations), Power management |
Driver
(in source code) |
Audio (I2S and AC97), Backlight, Battery, Camera, CEC, CMM (codec memory management), Display, I2C, IROM BOOT, JTAG, Keypad, MFC (Mutli-Format Codec, MPEG2,MPEG4, H.263,H.264, VC-1), Nand Flash, NLED, OTG Device, Power Button, Power Control, SD/MMC, Serial port, SPI, Touch Screen, TVOUT(HDMI and Composite Video), USB EHCI, USB OHCI, DM9000 NDIS, CH7033（DVI/VGA） |
| Drivers for Optional Modules |
WF8000-U USB WiFi Module
CAM8100-U USB Digital Camera Module
CDMA8000-U USB 3G Module
WCDMA8000-U USB 3G Module
(no source code provided) |
| Application Demo |
HDMI output example |
| Software features |
Supports .NET Compact Framework 3.5 and KITL kernel debug |
| Supports Hive registry and ROM file system |

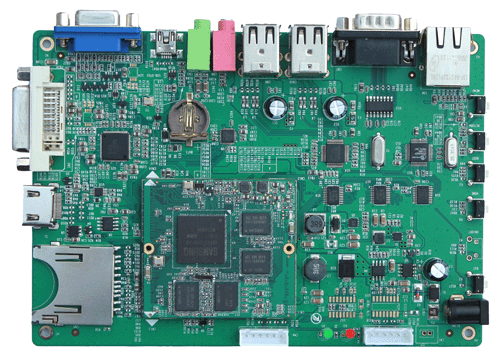

General DescriptionQuickembed SBC210 Single Board Computer is designed based on Mini210 processor card which is using Samsung’s S5PV210 ARM Cortex-A8 processor to provide cost-effective, low power, and high performance microprocessor solution for mobile phones and general applications. The Mini210 processor card mounts directly on top of the expansion board, connecting via four high-quality 0.5mm space 2*40-pin board-to-board connectors. It has the S5PV210 processor, 1Gbytes mobile DDR2 and 1Gbytes Nand Flash on board. Up to 237 multi-functional input/ output ports are brought out through the pins of expansion connectors. The SBC2100 expansion board has extended rich hardware peripherals interfaces including HDMI, DVI-D/VGA, Serial port, Ethernet, USB Host, SD, Audio and Buttons to demonstrate powerful performance of the S5PV210. It features HDMI and VGA/DVI-D video output which can implement large size monitor and TV display. It has four USB Host ports via Hub chip which allows you to connect to various USB devices. Currently Embest offers optional USB WiFi, USB Digital Camera and USB 3G function modules for using under Windows CE OS on this board. The board supports for running Android and WindowsCE operating systems. Embest offers Android 2.2 and WindowsCE 6.0 BSP along with documents for this board, the software drivers are mostly in source code. The device would be a solid reference board for developers who will use the S5PV210 processor for evaluation and development. It can also be used directly for multi-media applications.
Onboard Interfaces and Connectors
Order Information |
| Order No. |
T6010161 |
| Item |
SBC210 Single Board Computer |
| Deliveries |
- One SBC210 board (including CPU board Mini210 and expansion board)
- One 5V power adapter
- One cross serial cable
- One HDMI cable
- One 2GB SD card
- One Product CD (including user manual, schematic in PDF format, datasheet, Android 2.2 and WinCE6.0 BSP)
|
| Price |
US$299 |
| Options |
- Mini210 CPU board US$149
- USB WiFi Module US$49
- USB Digital Camera Module US$49
- USB 3G function module(CDMA2000 standard) US$99
- USB 3G function module (WCDMA standard) US$99
|
Online Order Now! Global Shipping in 2 days!
We accept online order and ship globally, our online order system will tell shipping fee according to your address, and automaticly generate PI Invoice to you.
Please send email to us if you have any question for this product, or want product document in more detail, or question for order or payment or shipping. Contact information is at the bottom of the page.
Sample price is announced hereby above. Ask for quotation when order quantity > 3pcs.
Parts of product, like core module, SBC, stamp, daughter card, single board(without LCD), motherboard, baseboard, LCD, sell seperately, email us for quatation.
find gps,gprs,wifi,camera etc in modules and bluetooth,485,can etc in accessories, or enclosures, jlink v8, ulink, openjtag etc tools.
We are now offer Capacitive Touch Panel for all of our ARM platforms.
Product Warranty and Technical Support.
Our delivery has mass producing quality assurance. We warrants our products against manufacturing defects for a period of one year from date of shipment to the original purchaser, and offers software updates lifetime to registered customers free of charge. We have an experts team to provide technical support.
