S5PV210 Evaluation Kit

Model Standard
Vendor Quickembed Trakmark
In Stock Yes Lead Time  3 days
Promotion Update Time
Voucher Limit
Product Name S5PV210 Evaluation Kit
Product ID 2011072717180070 Warranty  1 Year
Price US$329.00/unit

Shipping Fee and tax not included.

Turn your prospective idea into practical product real profit in 6 months.
Product Introduce:
Samsung S5PV210 Application Processor based on 1GHz ARM Cortex-A8 core
- Onboard 512MByte DDR2, 512MByte NAND Flash
Product Detail:
- Samsung S5PV210 Application Processor based on 1GHz ARM Cortex-A8 core
- Onboard 512MByte DDR2, 512MByte NAND Flash
- 4 UART, 4 USB Host, USB OTG, Ethernet, Audio, TF, RTC,...
- Supports 24-bit TFT LCD and HDMI Output Display
- Supports Camera and WiFi Functions through Modules
- Ready-to-Run Google Android 2.3 OS

The Samsung’s S5PV210 ARM Cortex-A8 is world’s first Cortex-A8 based application processor in 45nm LP process that runs at 1GHz. It provides state-of-the-art 3D performance and a rich collection of multi-media support while achieving the lowest power consumption and integrates a 1080p full HD codec engine that supports 30fps full HD video playback and recording. The S5PV210 is aimed at portable computing devices such as netbooks that demand high performance and design flexibility.

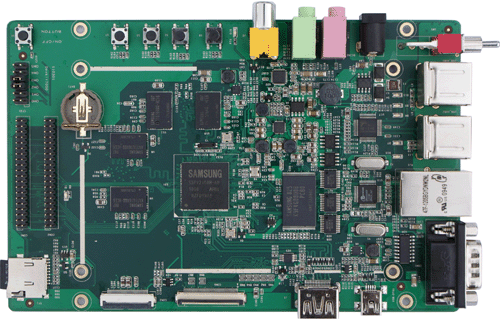

The Evaluation Board is a high-performance development board based on the Samsung S5PV210 processor, with onboard 512MByte DDR2 RAM and 512MByte NAND Flash. It takes full features of this application processor and the board exposes many other hardware interfaces including 4 UARTs, 4 USB Host and 1 USB OTG, Ethernet, TF card, Camera, SD/MMC, SPI, I2C, ADC, PWM and more over. It can support 1080p HDMI high-definition video display and TFT LCD display with touch screen running popular Google Android system.

The Evaluation Kit includes 7” LCD and touch screen and all necessary accessories to help users start their development conveniently. It is preloaded with Android 2.3 OS in NAND flash but it can also boot from TF card following Embest instructions. Embest provides user manual, schematic drawing, datasheet documents and software BSP to help customers better understand and use the kit.

Hardware Features

Mechanical Parameters

    • Dimensions: 166mm x 107mm
    • Power Supply: +12V
    • Working Temp.: 0~70°C

Processor

    • Samsung S5PV210 Mobile Application Processor
      - Up to 1-GHz ARM® Cortex™-A8 Core with NEON, also supports 800-MHz operation
      - 32KB I-Cache; 32KB D-Cache; 512KB L2 Cache
      - Onchip 64KB ROM and 96KB SRAM

Memory and Storage

    • 512MB DDR2, 32bit
    • 512MB NAND Flash, 8bit
    • TF card slot

Data Transfer Interfaces

    • One 10/100M Ethernet interface (RJ45)
    • One High-speed USB2.0 OTG port (can be only configured as Device)
    • Four High-speed USB2.0 Host ports
    • Four serial ports:
      2 x 5 line serial port, TTL voltage (bring out to extension interface)
      2 x 3 line serial port, RS232 (One brings to DB9 connector, the other brings to extension interface)

Audio/Video Interfaces

    • LCD/Touch Screen interface (40-pin FPC connector)
    • HDMI high-resolution image output port (support 1080p, 30fps signal)
    • One TV Out interface
    • One audio input interface (3.5mm audio jack)
    • One 2-channel audio output interface (3.5mm audio jack)
    • One camera interface (30-pin FPC connector, support CCD or CMOS camera)

Input/Output Interfaces and Other Facilities

    • Five buttons (One for On/Off and four for User defined)
    • Two 2.0mm space 2*20pin Extension Interfaces to bring out:
      - 2 channel SPI
      - 2 channel PWM
      - 3 channel I2C
      - 6 channel 12-bit ADC
      - 2 channel SD/MMC
      - 16 GPIOs (can extend 8*8 keyboard)

Software Features

OS

Item

Remark

Android

Boot

u-boot 1.3.4

NAND (Yaffs)

TF card (EXT4)

Kernel

Linux 2.6.35

Supports ROM/CRAM/EXT2/EXT3/EXT4/FAT/NFS/ JFFS2/UBIFS file systems

Device Driver

Serial port, RTC, Ethernet, Nand Flash, LCD, Touch screen, TF card, USB Device, USB hub, Audio input/output, HDMI, Button, Camera, WiFi
GUI Android 2.3

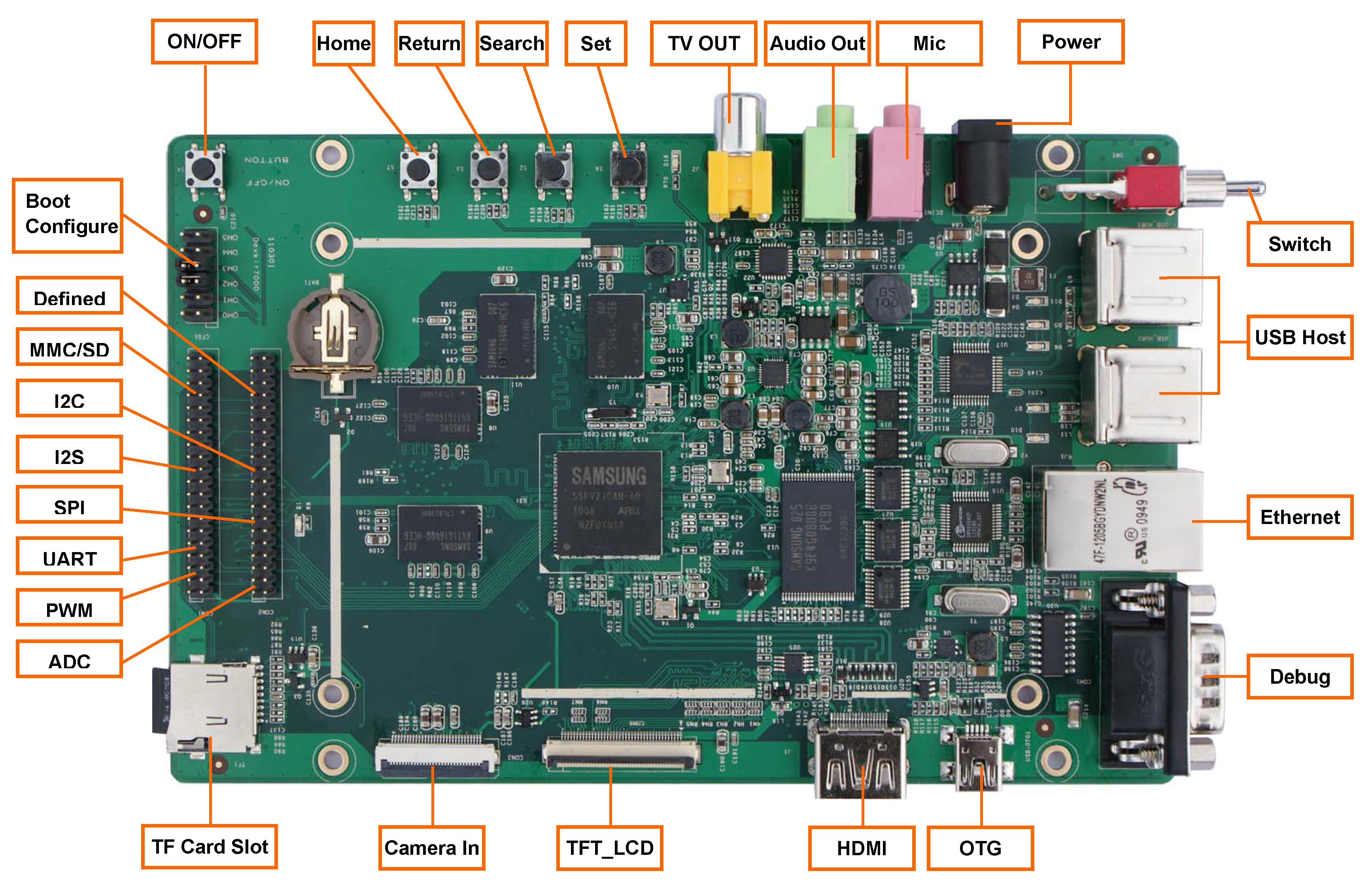

Onboard Interfaces and Connectors


Customer Design Service

We offer customer design service based on the evaluation board according to customer’s requirement. Whether you need to reduce, add or modify to existing hardware, Embest will help customers with expert competence and rich experience.

Order Information

Order No.

T6010150

Item Evaluation Board, Board only, N/A.
Deliveries
  • One Evaluation board
  • Download link (including user manual, schematic in PDF format, datasheet, Android 2.3 BSP)
Order No. T6010151
Item Evaluation Kit (Standard Configuration) , Price 329USD.
Deliveries
  • One Evaluation board
  • One 7" LCD (with touch screen, resolution: 800*480 pixel)
  • One 2GB TF card
  • One Serial cable (DB9-DB9)
  • One 12V Power adapter
  • One USB cable
  • One Cross Ethernet cable
  • One HDMI cable
  • Download link (including user manual, schematic in PDF format, datasheet, Android 2.3 BSP)
Options
  • Digital Camera Module US$49
  • USB WiFi module US$49

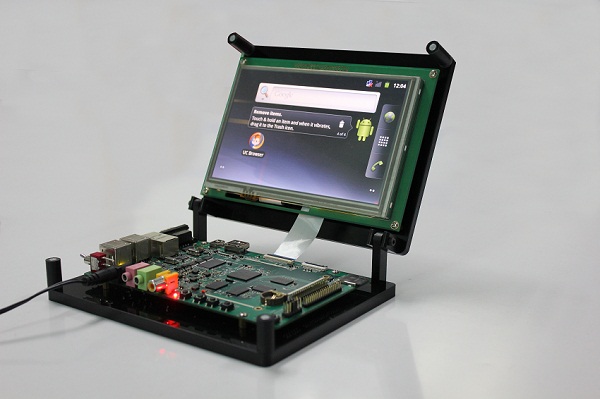

Nice Board Holder

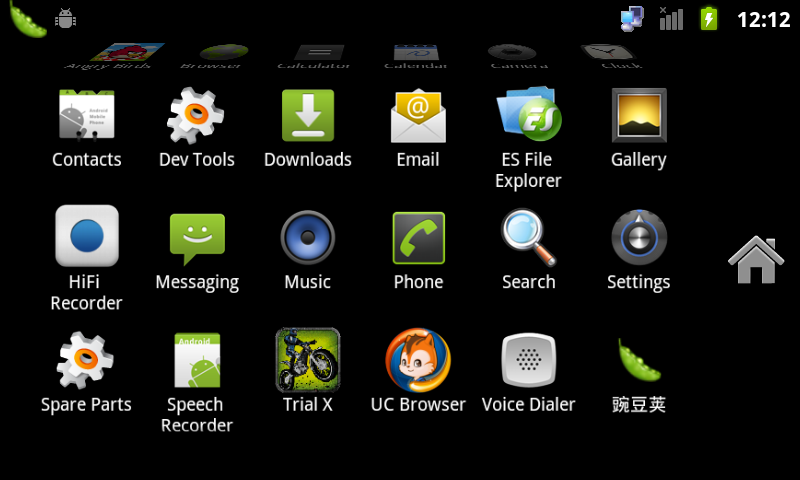

Android2.3 UI

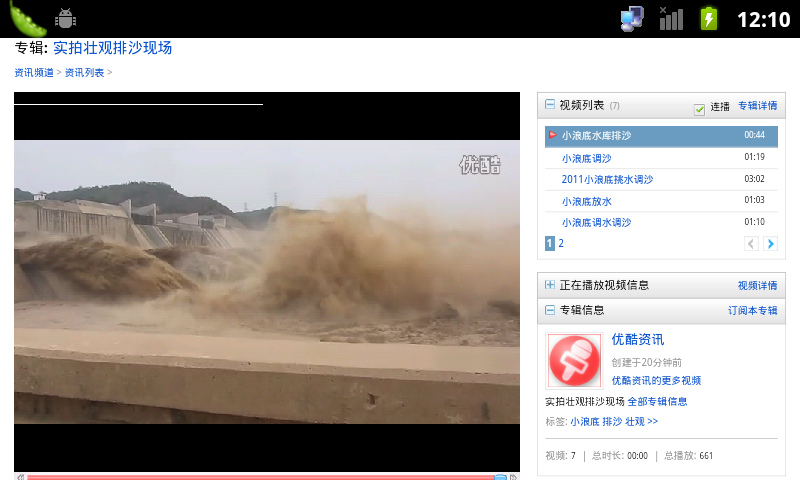

Web Surfing

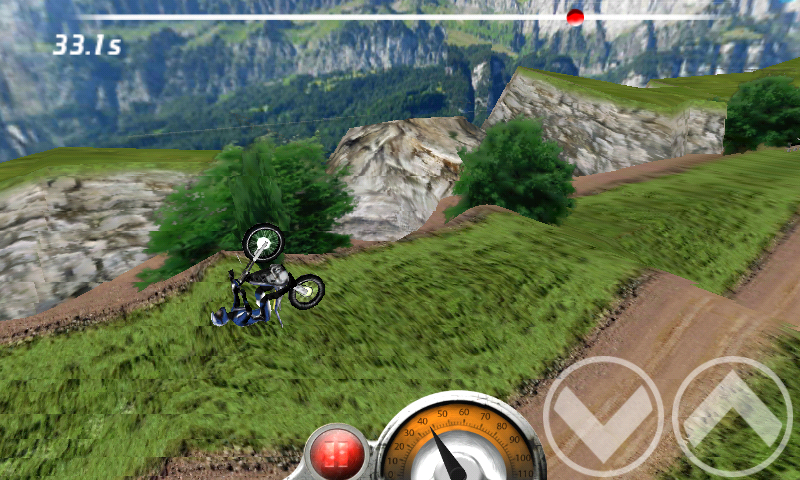

3D gaming

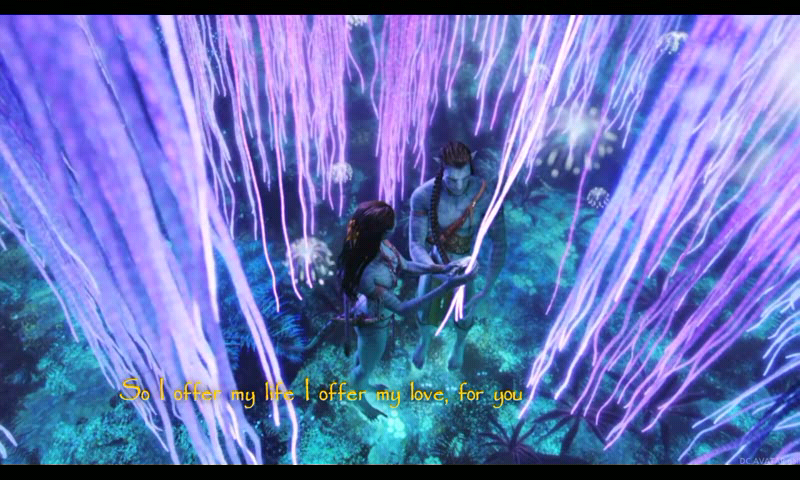

1080P movie play

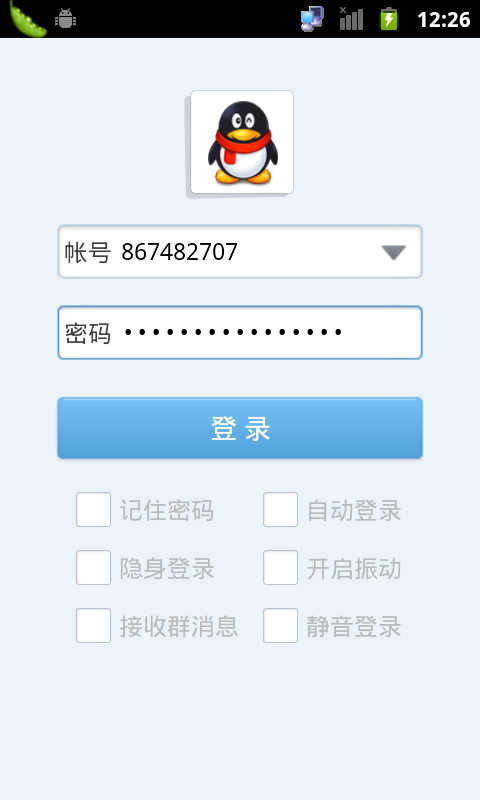

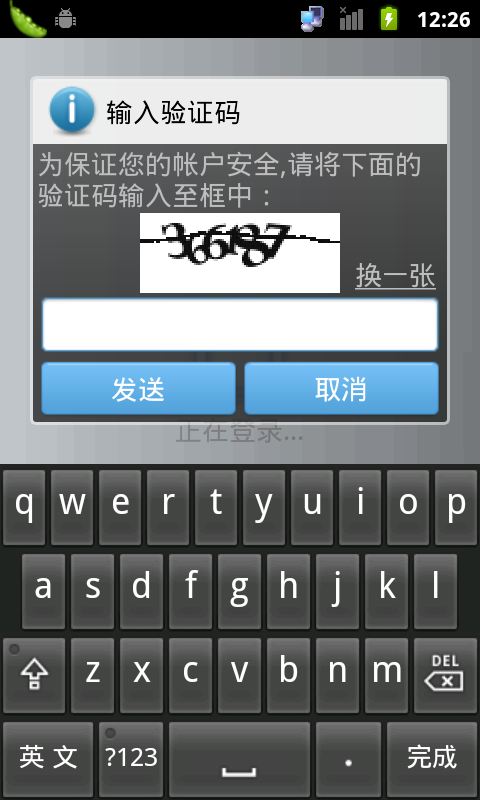

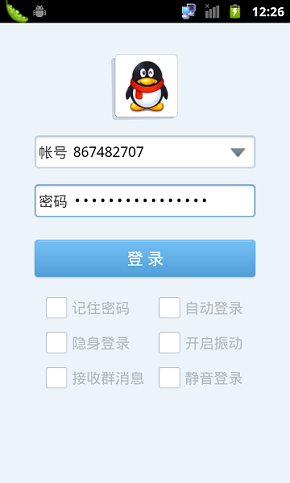

Instant messenger


Online Order Now! Global Shipping in 2 days!


We accept online order and ship globally, our online order system will tell shipping fee according to your address, and automaticly generate PI Invoice to you.
Please send email to us if you have any question for this product, or want product document in more detail, or question for order or payment or shipping. Contact information is at the bottom of the page.
Sample price is announced hereby above. Ask for quotation when order quantity > 3pcs.
Parts of product, like core module, SBC, stamp, daughter card, single board(without LCD), motherboard, baseboard, LCD, sell seperately, email us for quatation.
find gps,gprs,wifi,camera etc in
modules and bluetooth,485,can etc in accessories, or enclosures, jlink v8, ulink, openjtag etc tools.
We are now offer
Capacitive Touch Panel for all of our ARM platforms.
