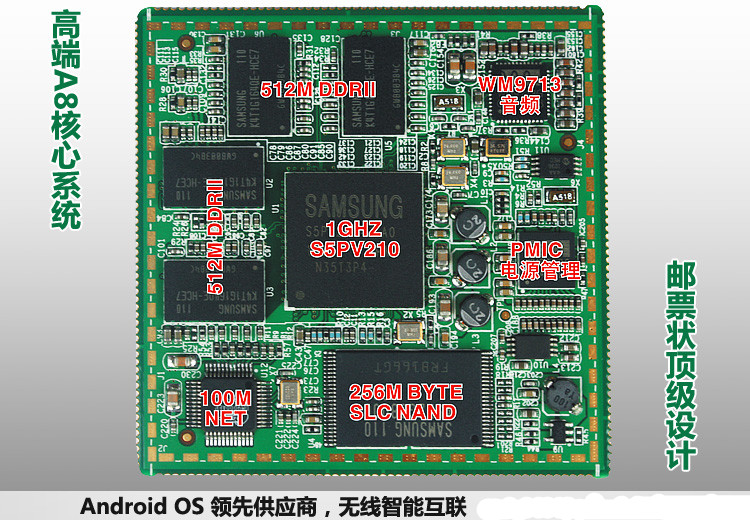

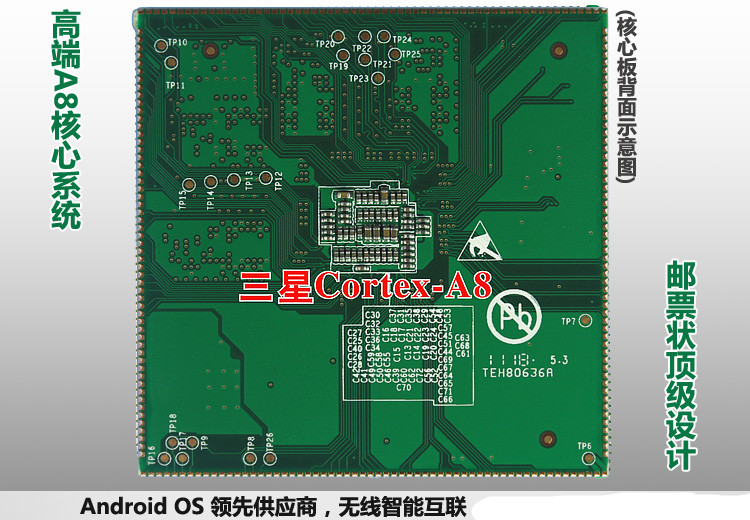

S5PV210 CPU core stamp module
ARM Cortex-A8
1GHz
NEON
MPEG-4/MPEG2 H.264/H263 VC-1 DivX 1080p@30fps
2D accelerate 8000x8000
3D accelerate Power VR SGX540 OpenGL-1.1&2.0 OpenVG1.0
SD/MMC/SDIO 32GB
hardware JPEG accelerate 8192×8192
·Memory: 4G bits DDR2
·Flash：2G bits SLC NAND FLASHH
·PMIC, WOLFSON solution, 750MA Li-Battery charge with safe guard.
·100M ehternet
·AC97 HIFI, multi-channel
·extended system bus, 16bit data and address bus
·230 pin TQFP

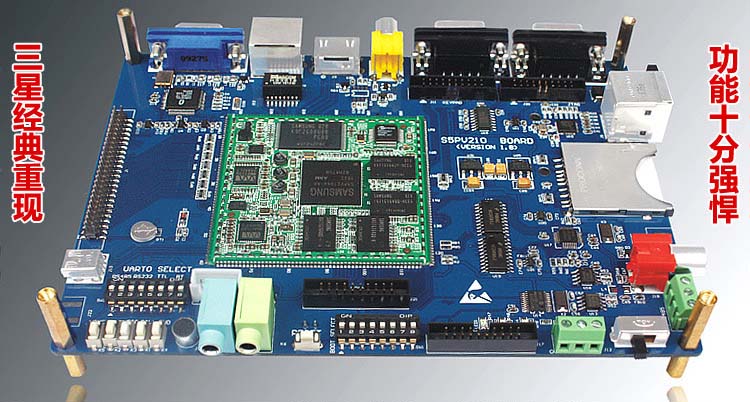

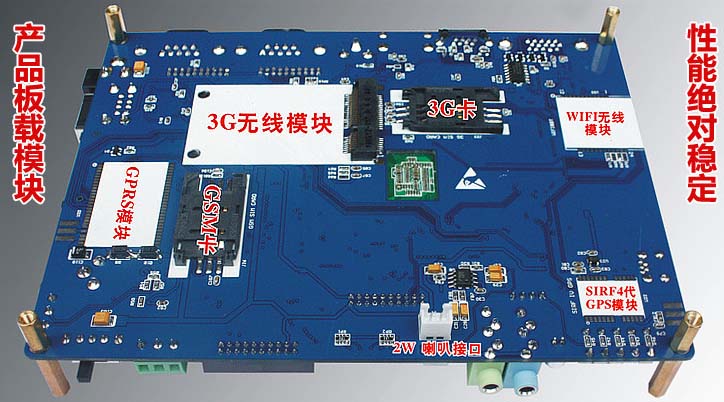

S5PV210 base board
·RTC，rechargable
·JTAG
·1 CAMERA
·RS232x2 TTL UART*2,RS485x1
·I2C SPI PWM AD/DA
·8x8 key board, 5 Android key button
·2 USB HOST 2.0，1 USB OTG 2.0
·2 SDIO 1 SD 1 SDIO wifi
·4 display: TV-OUT HDMI VGA RGB
·4.3 7 8 9.7 inch or more RGB/LVDS LCD
·support resistive or capacitive touch screen
·CAN bus
·CCD camera interface
·on board SIRF4 GPS module
·on board WIFI/Bluetooth
·MiniPCI
·on board WCDMA/CDMA2000/TD-CDMA 3G module, on board GSM/GPRS, support GSM phone call/sms/GPRS，driver in Android!
Bootloader
·u-boot-1.3.4
·cramfs/yaffs image
·100M ethernet download
·USB download
·NAND FLASH boot
·SD boot
·fastboot for Android
Linux-2.6.32/Linux-2.6.35 Drivers
·LCD driver
·LCD back light driver
·VGA driver
·resistive/capacitive touch screen driver
·HDMI
·HSMMC/SD/MMC/SDIO
·IIC
·SPI
·KEYBD
·AUDIO AC97 and IIS
·DMA
·RTC
·USB HOST/DEVICE
·JPEG hardware acc
·MFC MPEG-4/MPEG2 H.264/H263 VC-1 DivX
·CMOS/CCD Camera
·ROTATOR screen
·2D acc
·3D acc
·ethernet
·SD 32G
·3G
·SDIO WIFI
·Bluetooth
·PMIC
·USB ADB
Android-2.2/Android-2.3 drivers
·BT
·ethernet
·WIFI
·3G
·GPRS
·GSM phone call and sms
·HDMI
·VGA
·CMOS/CCD Camera
·H263/H264/MPEG4/VC1
·JPEG
·2D/3D
·GPS
·LCD
·PMIC, sleep and wakeup
·USB ADB
·LED
·SD
·audio
·APP Market
Package Price 999USD
EVM kit board, cpu core module + base board
7inch resistive touch scrren
cables and power adapter
download link for schematics and bsp source code.
WIFI, GPS, BT, GSM/GPRS, 3G, camera etc modules 49USD each.
