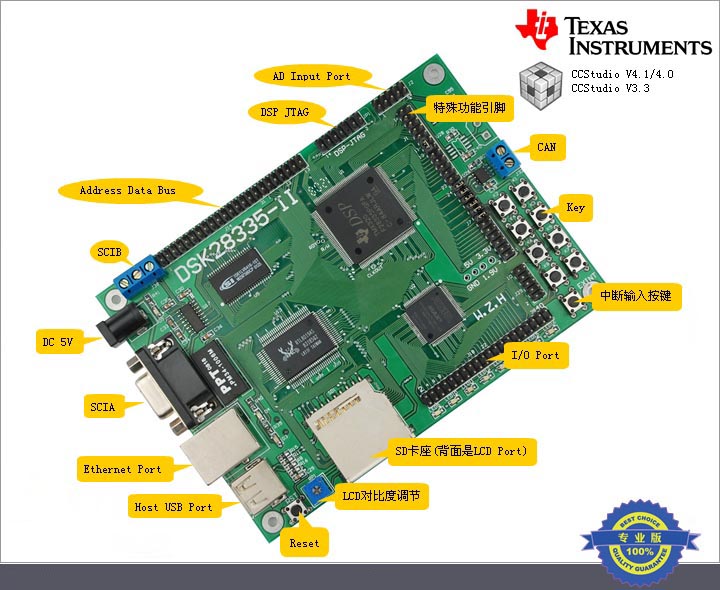

System Resources
l DSP processor TMS320F28335, 32-bit floating-point high-speed digital processor, a maximum operating frequency of 150M.
l DSP chip built-256K * 16 bit FLASH, users can be stored procedures, FLASH can be encrypted.
l DSP chip built-in 34K * 16 bit SRAM.
l DSP chip outside the extended 256K * 16 bit FLASH (basic configuration), the biggest can be expanded to 1M * 16 bit.
l DSP chip 64K * 16 bit extended SRAM (basic configuration), the biggest can be expanded to 512K * 16 bit.
l Board has 2Kb serial EEPROM (basic configuration).
l Board has 10M Ethernet interface chip, compatible with NE2000, the user can achieve high-speed communication.
l HOST USB2.0 high-speed on-board interface, you can plug-in mobile hard disk mass storage implementation.
l Has SD card interface board can be an external large-capacity SD card.
l Board has 2-way RS232 conversion circuit, you can achieve with the host computer communications.
l Board there is one way CAN2.0 conversion circuit (basic configuration), the largest 2-channel configuration, users can network.
l Board has graphics LCD interface (driver software compatible SED1330, SED1335, S1D13700, etc.).
l Board has up to 8 keys, user-friendly man-machine dialogue with the LCD implementation.
l Board to provide up to 8 input, 16 output interface.
l Has headphone jack on the board can achieve broadcast.
l There is a microphone jack on the board can achieve recording.
l Board has 16 input interface voltage-AD (precision: 12bit, input voltage range :0-3V, the fastest conversion time: 80ns)
l Board has extended interruption of input buttons and interfaces.
l Board has eight light-emitting diodes can be used to debug procedures, monitoring.
l Have on-board power-on reset, manual reset function automatically, user-friendly debugging.
l Provide on-board the bus open, the data line (16), Address line (8), special function pin to bring out the secondary development of user-friendly.
Typical Application
l Teaching applications, industrial automation control, UPS, motor control, robot.
l Variable frequency control, automotive, mechanical, disk drives, digital filtering.
l Vibration analysis, AC Servo, DC motor control, power automation.
Sample Code
AD conversion experiments
DA conversion experiments
DA --- AD United experimental
SRAM read and write the expansion of the experimental
Serial EEPROM read and write test
SCI send receive experimental
CAN bus transceiver experiment
SPI sent to receive the experimental
McBSP send to receive experimental
Ethernet Send receiving experimental
Marquee experiment
Timer0 timer experiment
Timer2 timer LED scanning experiment
Extended interrupt source interrupt signal input experiment
LCD display experiment (LCD controller compatible SED1330, SED1335, S1D13700, etc.) [Note: LCD purchase]
Broadcasting experiments
Recording experiments
Analog voice alarm experimental
Keyboard scanning experiment
Experimental ePWM Timer
Ethernet ARP, RARP experiment
Ethernet ICMP Experimental
Experimental Ethernet UDP
Ethernet IP experiment
Ethernet TCP server mode experiment
Ethernet TCP client mode experiment
LCD display 8 * 8 points, 8 * 16:00, 16 * 16:00, 16 * 24 points, 24 * 24 points, 32 * 32 points of the size of Chinese characters, numbers, graphics experiment (LCD controller compatible SED1330, SED1335, S1D13700 etc.)
LCD display 32 * 32 points, 64 points, 64 * icon experimental (LCD controller compatible SED1330, SED1335, S1D13700 etc.)
LCD display of any two straight lines, any point of the curve of the experiment (LCD controller compatible SED1330, SED1335, S1D13700 etc.)
FAT16 experiment
FAT32 experiment
Experimental file operations (including new files, read / write files, search files, delete files, etc.)
Operation of the experiment directory (including the new directory, enter the directory, delete directory, etc.)
U disk read and write test
User program programmer Experiment (online programmer F28335 internal FLASH)
SD card read-write experiment Sector
SD Card reader for multi-sector experiment
TI28335DSK-II, Price 399USD.
TI28335DSK-II only difference with TI28335EVM-II is it has USB1.1 not 2.0.
