OMAP5432SOM

Model Standard
Vendor Quickembed Trakmark
In Stock Yes Lead Time  3 days
Promotion Update Time
Voucher Limit
Product Name OMAP5432SOM
Product ID 2013010315170353 Warranty  1 Year
Price US$99.00/unit

Shipping Fee and tax not included.

Turn your prospective idea into practical product real profit in 6 months.
Product Introduce:

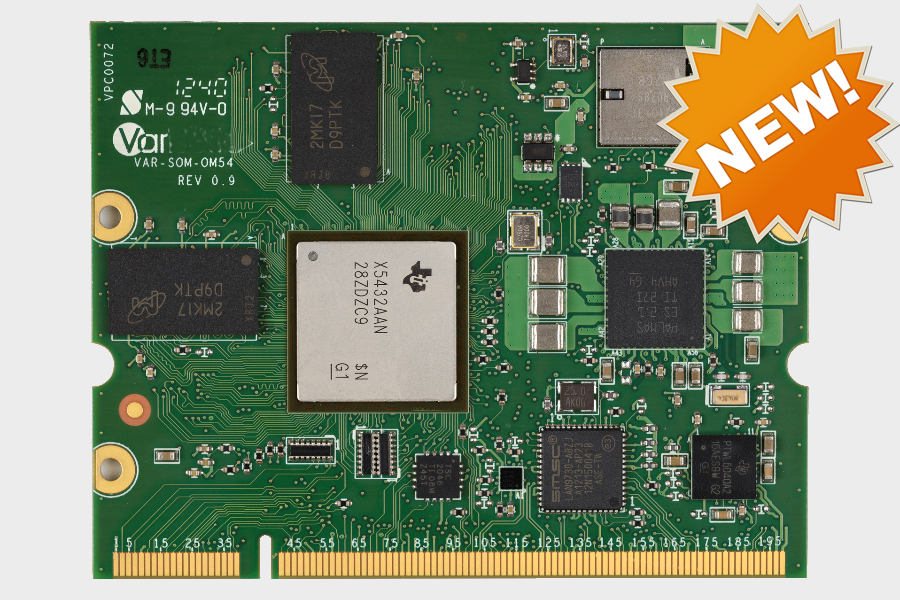

Based on TI's OMAP 5, 1.7GHz Dual-Core ARM Cortex-A15. The fastest ARM System on Module on the market today.
Product Detail:



The OM5432SOM leverages the cutting edge of mobile computing for embedded and industrial product designs. Based on the OMAP 5, 1.7Ghz Cortex-A15, this new generation System on Module offers a CPU performance boost of over 50% (as compared with the OMAP4460). Supporting 1080p60 video encoding/decoding along with the built-in PowerVR SGX544-MPx GPU, the VAR-SOM-OM54 can handle the most advanced multimedia tasks.

The OM5432SOM is pin compatible with the OMAP4460SOM.

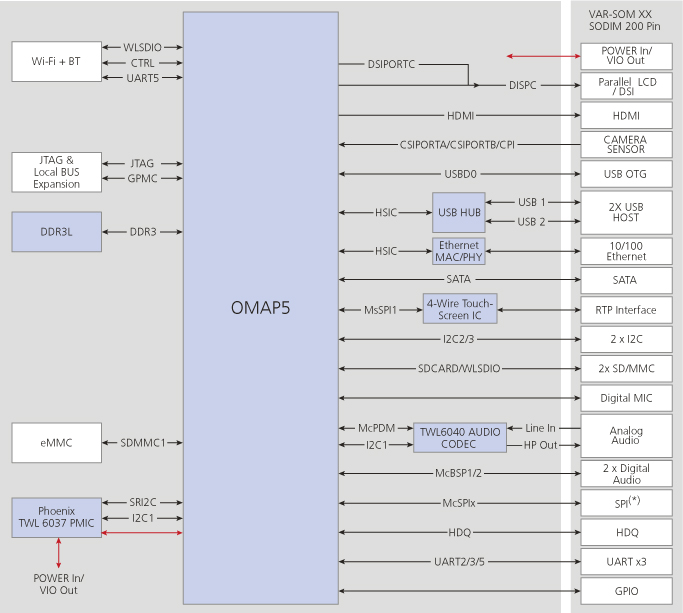

Block diagram
(Click to enlarge)

VAR-SOM-OM54_BD

More information on OMAP5432

To learn more about TI OMAP5432 please visit Texas instruments page here.

  • CPU

 ▪ Texas Instruments OMAP5432 Processor

    ▫ 1.7GHz Dual-core ARM Cortex-A15 MPCore with Symmetric Multiprocessing (SMP)

    ▫ PowerVR™ SGX544-MPx graphics core

    ▫ NEON SIMD Coprocessor

    ▫ IVA-HD multimedia accelerator supporting up to 1080p60

  • MEMORY

▪ 512-2048MB 1066MHz DDR3L

▪ eMMC

DISPLAY

▪ LCD interface - Parallel RGB/DSI Supporting 1920 x 1080 24bit

▪ HDMI interface - Supporting 1080p

▪ 4-wire touch screen panel interface

AUDIO

▪ Line-in

▪ Stereo Headphone out

▪ Digital microphone

▪ S/PDIF Out

NETWORK

▪ 10/100Mbps Ethernet controller

▪ Wi-Fi 802.11 b/g/n

▪ Bluetooth V4.0 + EDR

EXPANSION

  • ▪ 3 x SD / MMC / SDIO interfaces

    USB

▪ 2 x HS USB 2.0 Host

▪ HS USB 2.0 OTG

CAMERA INTERFACE

▪ 2 x CSI

▪ CPI

  • SERIAL INTERFACES

▪ McBSP

▪ SPI interface

▪ I2C interface

▪ 1 Wire/ HDQ

▪ 3 x UARTS, up to 3.6 Mbps

OS Support

▪ Linux 3.1

▪ Android

▪ Ubuntu Oneiric

POWER

▪ Single 3.3 DC-IN power supply

    ▪ RTC external backup battery

MECHANICAL SPECIFICATIONS

▪ Interface : SODIMM 200 universal connector

▪ Dimensions (W x L x H) : 51mm x 67.8mm x 3.7mm

 ▪ Temperature range

  ▫ Commercial :    0C - 70C
  ▫ Extended : -25C - 70C
  ▫ Industrial : -40C - 80C



NEW! CAM-B401 Multimedia add-on board. Supporting dual 5MP cameras and digital microphones.

The CAM-B401 Multimedia Add-on board allows developers to leverage the omap's advanced multimedia capabilities. With its integrated dual 5MP/1080p OV5640 CMOS sensors and two digital microphones it is ideal for both evaluation and application development.

▪ 2 x Omnivision OV5640 based 5 Mpixel camera sensors

 ▪ 2 x Digital microphones

 ▪ Pass through connectivity for VAR-OM44CustomBoard connectors

 ▪ OS Support:

 ▪ Android 4.04
