S5PC110开发板评估套件 512MB DDR2 原理图 Android源码

如对此感兴趣,请拨打电话02l-228l84l9,QQ微信,微博
诚招各地区市场各行业应用推广合作伙伴。查看详细联系方式
欢迎提出产品建议,思路,合作信息,我们计入产品股份,享有对应的分红权。

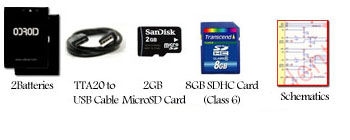

Application Developer Edition Premium基础版, 价格2500元


Platform Developer Edition Standard, 标准版, 价格3000元




Platform Developer Edition Complete, 增强版, 价格3500元




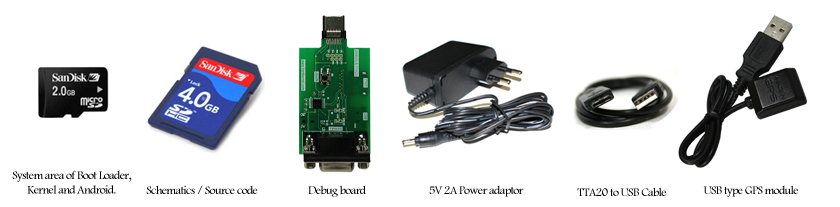

Platform Developer Edition Complete, 价格5000元

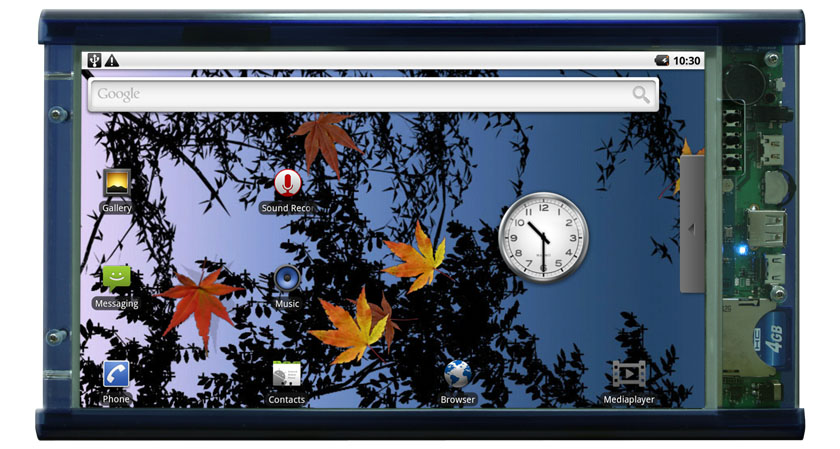

WEB BROWSING

View whole web page in portrait or landscape through 10.1 inch 1360x768 resolution LCD. Capacitive touch screen provides easy of use with your finger tips. Enjoy wireless network everywhere through built-in WiFi/Bluetooth

FULL HD 1080P VIDEO HDMI OUT

Play back full HD 1080p videos through HDTV. You can even turn off the screen of ODROID-T when it is connected to HDTV. Standard HDMI1.3 port is embedded.

GPS

GPS module is connected through USB2.1 HS Host, which enables you to study GPS Navigation devices or applications.

E-Book Reader

10.1 inch 1360x768 resolution LCD performs E-Book readable with big size text.

3D Gallery

Insert SD card from your camera. It is easy to check and share your photos on big screen LCD.

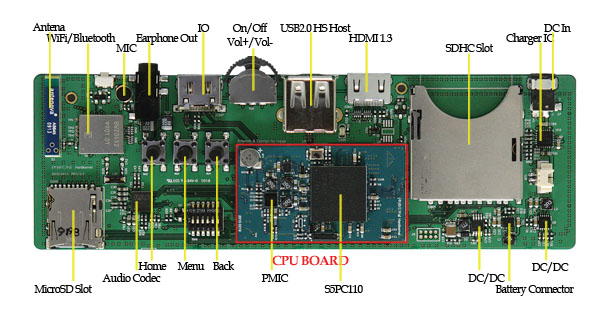

FRONT side

CPU Board : CPU, Memory, Power management. Connected to main board by board to board connector

USB2.1 HS Host : Connect various external accessories such as GPS, camera, keyboard, external HDD, etc

MicroSD Card Slot : 2Gbyte T-flash(removable) memory card for system area of Boot Loader, Kernel and Android.

SDHC Card Slot : Use your own SD card for user storage

Mini HDMI : Standard type-C HDTV, support up to 1920 x 1080 resolution

IO(TTA20) : USB, Battery charging and Serial port for system monitoring

WiFi/BT Combo Module : Marvell 8686 & CSR BC4-ROM

Audio CODEC : WM8991 is a highly integrated low power hi-fi CODEC from Wolfson

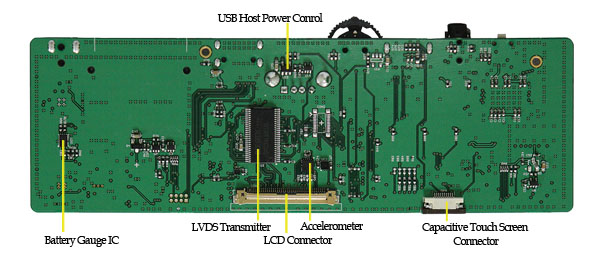

BACK side

Acceleration Sensor: Digital 3-axial acceleration sensor from Bosch Sensortec

PMIC : contains 3 Step-down DC/DCs and 9 LODs.

LVDS transmitter : converts RGB data into LVDS(Low Voltage Differential Signaling) data streams.

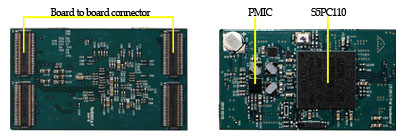

CPU Board

CPU : Samsung S5PC110 Cortex-A8 1Ghz with 512KB L2 cache, 3D Accelerator : SGX540 (up to 20M triangles/s and 1000M pixels/s)

Memory : OneNAND 512MB Mobile DDR 400Mhz data rate

PMIC : contains 3 Step-down DC/DCs and 9

LODs.

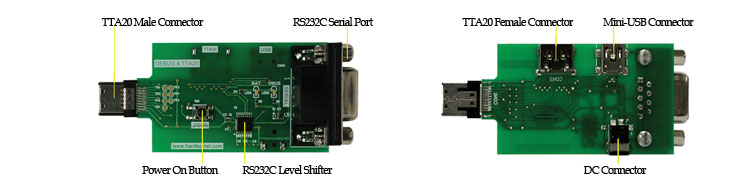

Debug board

TTA20-Male connector : Connect to I/O port of Odroid-T.

RS232C Serial Port : Connect to Host PC RS232C Serial Port via cable.

SPECIFICATIONS

Processor | Samsung S5PC110 Cortex-A8 1Ghz with 512KB L2 cache

3D Accelerator | SGX540 (up to 20M triangles/s and 1000M pixels/s)

Memory | 512MB Mobile DDR 400Mhz data rate

Flash | OneNAND 512MB

Micro-SD slot (2GB bundle)
Standard SDHC slot


Display | 10.1-inch, 1360 x 768 LVDS interface with capacitive touch screen.

Video | supports 1080p via HDMI cable (H.264+AAC based MP4 container format)

Video Out | mini-HDMI connector with SPDIF audio

Audio | Built-in speaker and microphone, standard 3.5mm headphone jack

I/O | USB 2.0 HS Device for ADB/Mass storage, UART/JTAG for development

DC Jack | 5V/2A power

USB | USB 2.0 HS Host (standard A type connector)

WiFi | 802.11 b/g

Bluetooth | 2.0 + EDR

Other Features | 3-axis accelerometer, External GPS, Geo magnetic field sensor

System Software | u-boot 1.3.4, Kernel 2.6.29, Android Eclair 2.1

Dimensions | 275 x 155 x 18 mm

Weight | 620g(with battery)

Battery | 6000 mAH rechargeable Lithium-Polymer


DEBUG BOARD

TTA20-Male Connector | Connect to I/O port of Odroid-T.

RS232C Serial Port | Connect to Host PC RS232C Serial Port via cable.

Power On Button | Turn on Odroid-T.

DC Connector | External power supply connection

TTA20-Female Connector | External power supply connection

Mini-B USB Connector | Connect Odroid-T to host PC
