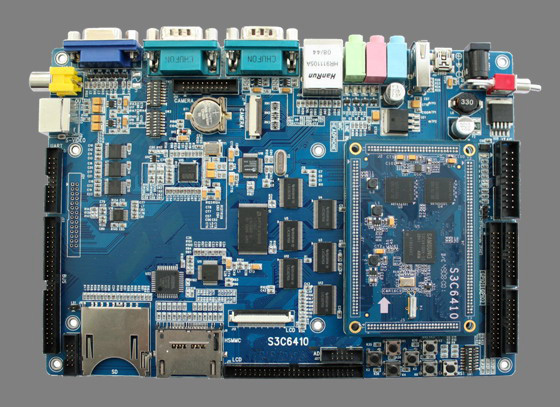

Samsung 533/667/800MHz ARM11 S3C6410 Board.
Optional accessories, LCD, touch screen, user defined key board, and a shell/case/box!
Turn your idea into products, improve TIME to MARKET and create VALUE!

We are Original Manufacturer in China. We can layout the board, for size and interface, to fit your requirements.This product is in mass producing and has quality assurance. We warrants our products against manufacturing defects for a period of one year from date of shipment to the original purchaser, and offers one year of software updates to registered customers free of charge. We are looking for sells/retail/ditribute/channel partners.

The advantage of SBC is that when you define a new product, you have only small change on baseboard/motherboard, no change on SBC/daughter board, it saves great effort, and save much expense as the SBC is bit lots produced while baseboard can be produced in small lots, also this helps improving the quality of your products.

Product Feature Versioin 1
Processor: Samsung ARM S3C6410, ARM1176JZF-S, 800MHz.

SBC size 53.58mm*73.73mm

. 128MB DDR SDRAM, 166MHz

. 256MB NAND Flash, 16bit

. 2M Bytes NOR Flash

. LCD/Touch Screen interface. Supporting 3.5, 4.3 and 7 inch TFT LCD.

. Many modules are available for your choice- GPS, WIFI, Camera, USB HUB and Matrix Keyboard Module and 3G Modem

. GPIO connector ,data and address BUS connector

. S-Video display interface

. One TVOUT

. One VGA interface

. SPI interface, it can connect WIFI,DTV Module

. One audio input interface (3.5mm audio jack)

. One 2-channel audio output interface (3.5mm audio jack)

. One 10/100M Ethernet interface (RJ45)

. One High-speed USB2.0 OTG port (Mini USB type interface)

. 2 serial ports

. SD/MMC interface (supports 3.3V and 1.8V logic voltage)

. camera interfaces

. JTAG interface

. ADC, I2S, PCM, IrDA

. Temperature range : 0°C to 70°C

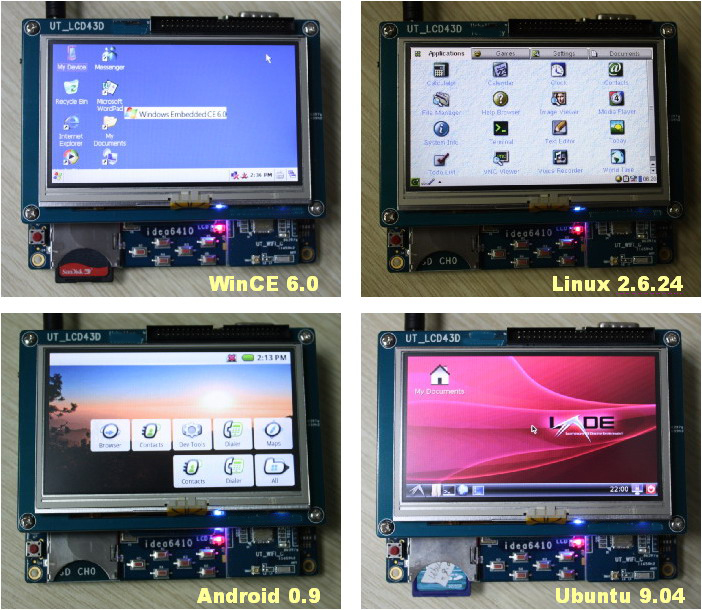

OS provide WinCE 5.0/6.0, Linux 2.6, Android(option).

Product Feature Versioin 2
Change with version1:
SBC size 60mm*60mm
256M DDR, 1G Flash
4 uart ports, 1 rs232, 3 TTL
remove VGA port
support 4.3 and 7 inch LCD

Service

1. Product prototyping, sourcing accessories for your product requirements.
2. Layout, define interface and resize the board for your definition.
3. Recommend GPS module, GSM/GPRS module with communication software.
4. Software Developing.
5. Sourcing solution and turn key to you.

Version 2

See our rich applications!

Retail Price $299 (Compare choosing 600MHz ARM Cortex-A8 TI OMAP3530 Evaluation Kit)
Package Include
One Board
One TFT 7inch touch screen. (4.3inch for version 2)
One USB cable
One JTAG cable (option, +39USD)
One serial RS232 cable
One Ethernet cable
One +12V/2A Power.
One CD with OS and driver, BSP in source code, schematics, and user manual documents.

Mass sale and service price is by demand.
Option, emulator for s3c6410.
7 inch MID solution based on s3c6410.

Shipping Rates
UPS, FEDEX, DHL or TNT Express.
It takes 3-6 business days to most places.
We will ship your item out in 48 hours next to payment confirmed, and then email you the tracking number.
Individual Shipping rates of this item:
(1) $39.9 to Japan/ South Korea/Singapore
(2) $59.9 to America/Europe/Canada/India
(3) $69.9 to Other
Combined Shipping rates: Additional US $9.9 /1pcs.
People out of these areas should contact us for accurate Express shipping rates.

Return Policy
If the items you received were inconsistent with the description of this page, you may return the items within 2 days of receiving for full refund (including shipping rates).

Order Now!
Please Contact Us for selling information and product user manual documents.
